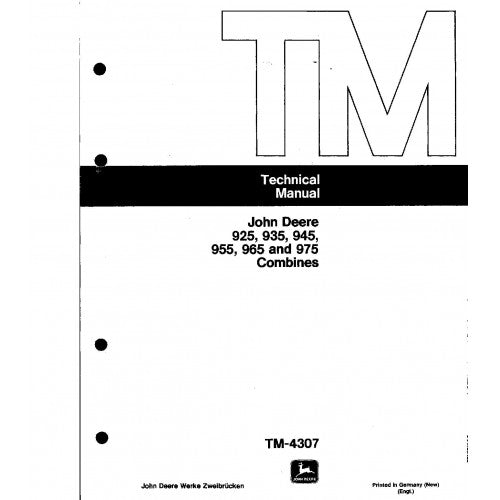

TM4307 John Deere 925, 935, 945, 955, 965 and 975 Combines Pdf Technical Service Manual

Heritage Combine Rebuilds: JD 925 to 975 Series (Europe)

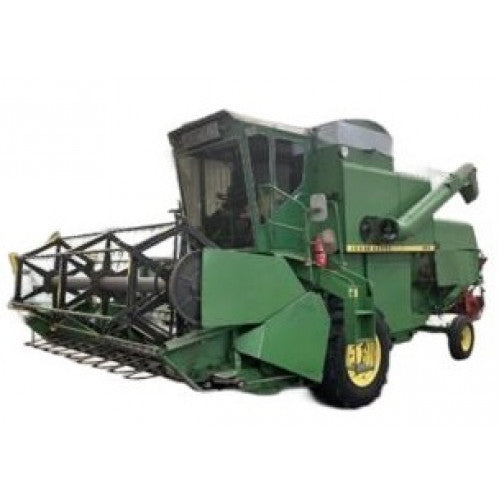

The European harvest landscape was shaped by the reliable, foundational performance of the John Deere 925, 935, 945, 955, 965, and 975 conventional combines. These machines were built with heavy iron to process tough, high-yielding grain crops across challenging terrain. Yet, after years of relentless field duty, mechanical fatigue inevitably sets in. When your primary threshing bearings start to fail or the shaker shoe requires a complete structural overhaul, improvised workshop fixes will compromise your grain quality and risk further damage. The John Deere 925-975 Combines (Europe) Technical Service Manual (TM4307) is the essential, factory-authored blueprint required to execute deep mechanical reconstruction on these legacy harvesters.

By acquiring this dedicated physical repair archive from manualsmarket.com, your heavy equipment mechanics secure the precise hardware extraction sequences, lifting rigging data, and exact physical tolerances demanded by the manufacturer. Rebuilding your 900-series combine to these OEM standards ensures optimal crop separation and long-term structural longevity.

---

Core Iron Restoration Strategies

This technical service manual completely bypasses electrical testing, focusing purely on the physical wrenching and heavy component replacement required to keep these machines running:

• Feeder House & Intake Mechanics: Execute the safe removal of the front gathering elevator. Navigate the physical rebuilding of slip clutches, heavy drive chains, and the primary header drive gearbox.
• Threshing Drum Integrity: Manage the heavy hoisting needed to extract the massive conventional cylinder. Discover the factory methods for aligning new rasp bars, replacing high-speed drum bearings, and reinstalling the heavy-duty concave.
• Straw Walker Mechanics: Restore the primary separation canopy. The guide covers replacing the traditional wooden walker bearings, overhauling the long metal crankshafts, and repairing the physical grain pan linkages.
• Cleaning Shoe Architecture: Eliminate excessive grain loss over the sieves. Perform physical teardowns of the primary cleaning fan drive, replace worn eccentric bushings, and calibrate the mechanical sieve shaking apparatus.
• Primary Drivetrain & Engine Hoisting: Safely drop the main ground-drive transmission. The manual details the mechanical extraction of drive belts, final drive gears, and the strict safety instructions for hoisting the diesel power plant completely away from the combine chassis for separate bench servicing.

Mechanic's FAQ: TM4307 Parameters

Question: Will this manual provide the electrical schematics for the cab dashboard?
Answer: No. All wiring diagrams, warning sensor logic, and electrical circuit tracing are exclusively documented in the companion Diagnostic, Operation, and Test manual. This TM4307 publication is strictly dedicated to physical hardware replacement, mechanical teardowns, and iron assembly.

Question: Are torque specifications included for the cylinder rasp bars?
Answer: Absolutely. Managing the massive rotational momentum generated during the threshing process requires exact precision. The manual provides mandatory torque tightening charts for all rotating iron to prevent severe vibration or explosive mechanical failure.

Question: Can I use this file to rebuild the internal pistons of the engine?
Answer: While this guide instructs your shop on how to unbolt, rig, and extract the entire engine assembly from the combine framework, deep internal diesel block reconstruction requires the standalone Component Technical Manual (CTM) authored specifically for that engine.

Document Specifications

Category	Combine Profile
Combine Models	John Deere 925, 935, 945, 955, 965, 975
Regional Configuration	European Market Editions
Harvesting Technology	Conventional Walker Combines
Manual Discipline	Technical Service (Mechanical Repair & Assembly)
Official Reference ID	TM4307

Secure Your Harvest Window

A fatigued straw walker bearing or a seized final drive can permanently sideline your classic European combine when you need it most. Equip your heavy mechanics with the John Deere 925-975 Combine Repair Manual TM4307 today, and secure the vital mechanical data needed to keep these legendary harvesters operating at peak capacity.
