TM411519 John Deere 490plus Rotary Harvesting Unit Pdf Technical Service Manual

TM411519 John Deere 490plus Rotary Harvesting Unit Technical Service Manual PDF

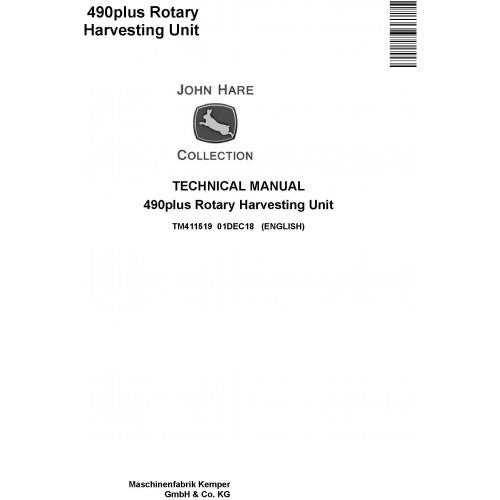

The John Deere 490plus Rotary Harvesting Unit Technical Manual (TM411519) is the specialized factory workshop document engineered to provide the heavy mechanical data required for the 490plus high-capacity forage header. Designed for the most demanding crops and high-horsepower forage harvesters, the 490plus utilizes a large-drum configuration to process massive amounts of material with high-speed efficiency. Operating under constant impact and abrasive conditions, the mechanical timing between the cutting discs and intake drums is critical to preventing blockages. This technical service manual provides agricultural mechanics with the precise disassembly, physical inspection, and reassembly data needed to restore the 490plus unit to original manufacturing tolerances.

Detailed Mechanical System Overhauls

This factory-issued guide focuses strictly on the physical "how-to" of machine repair, providing the engineering data needed for heavy component service on the 490plus harvesting platform:

• Large Rotary Drums and Saw Blades: Complete repair sequences for removing the primary cutting drums, replacing high-strength saw blades, and servicing the lower bearing housings. Includes critical timing data for the drum-to-drum interface.
• Gathering Mechanisms and Fingers: Step-by-step guidance on tearing down the intake gathering units. Covers the replacement of wear-resistant fingers, chain tensioning, and the adjustment of the crop guide plates.
• Main Drive Gearboxes and Drivetrains: Comprehensive overhaul data for the primary and secondary gearcases. Details precise gear backlash, shimming procedures, and bearing preload settings required for high-torque power transmission.
• Drivelines and Slip Clutches: Instructions for overhauling the main PTO shafts, universal joints, and the mechanical slip clutches that protect the header from sudden torque spikes.
• Folding Mechanisms and Hydraulics: Service data for the hydraulic cylinders and mechanical hinges used for folding the unit into transport position.
• Main Frame and Wear Components: Guidelines for inspecting the structural weldments and replacing the heavy-duty skid plates and liners that shield the unit from ground contact and abrasive soil.

Manual Technical Specifications

Manual Title	John Deere 490plus Rotary Harvesting Unit Technical Manual
Manual Number	TM411519
Equipment Type	Large-Drum Rotary Harvesting Head / Forage Harvester Attachment
Manual Type	Service Repair Technical Manual
Models Covered	John Deere 490plus
Key Systems Covered	Large Rotary Drums, Gatherer Chains, Gearboxes, Folding Hydraulics
File Format	Digital PDF (Searchable and Printable)
Language	English
Delivery Method	Instant Download After Payment

Why the TM411519 is Essential for High-Capacity Harvesting

An improperly timed large-drum rotary head can cause severe vibration and crop bunching, which can damage the feed rolls of the forage harvester. Utilizing the official Service Repair Technical Manual ensures that every rebuild is performed with factory-level precision, protecting your high-value equipment.

• Maximize Throughput: Accurate drum and gathering finger adjustments ensure smooth, high-velocity material flow into the harvester, maximizing acres per hour.
• Identify Wear Early: Use factory-specified wear limits to replace fatigued bearings and drive components during winter maintenance, preventing costly in-field downtime.
• Professional Results: The searchable digital format allows mechanics to instantly find specific torque sequences or assembly diagrams, accelerating the shop workflow.

Download the JD 490plus Rotary Unit Manual PDF

Ensure your 490plus is ready for the next harvest season. Download the John Deere 490plus Rotary Harvesting Unit TM411519 Technical Manual instantly at Manualsmarket.com. Browse our complete selection of forage harvesting attachments in the John Deere Service Manual Collection. This TM411519 PDF download equips your shop with the authentic factory procedures needed to rebuild gearboxes, replace rotary drums, and maintain the heavy-duty mechanical reliability of the 490plus header.

Frequently Asked Questions

Are there electrical wiring diagrams or Diagnostic Trouble Codes (DTCs) in this manual?
No. Following John Deere's specific publication structure, this Service Repair Technical Manual is strictly dedicated to mechanical teardown, physical repair, and component assembly. For electrical troubleshooting or sensor diagnostics, you must consult the separate Diagnostic, Operation, and Test manual for the base forage harvester.

Will this manual show me how to time the rotary drums?
Yes. The TM411519 provides detailed diagrams and step-by-step instructions for the mechanical timing of the large drums to ensure they mesh correctly and process crop uniformly without mechanical interference.

Does this manual cover the forage harvester itself?
No. This manual is specific to the 490plus Rotary Harvesting Unit attachment. For repairs on the base machine (such as the 7000 or 8000 series forage harvesters), you will need the specific technical manual for that machine.

Can I use this digital PDF on a tablet in the field?
Absolutely. The manual is delivered as a high-quality, fully searchable digital PDF. You can easily view it on any modern smartphone, tablet, or laptop, allowing you to reference torque values or assembly diagrams right at the machine.
