TM2366 John Deere 755D Crawler Loader Pdf Diagnostic, Operation and Test Service Manual

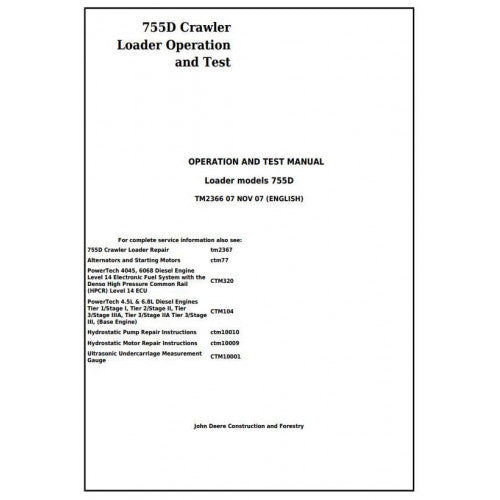

John Deere 755D Crawler Loader Operation & Test Technical Manual (TM2366)

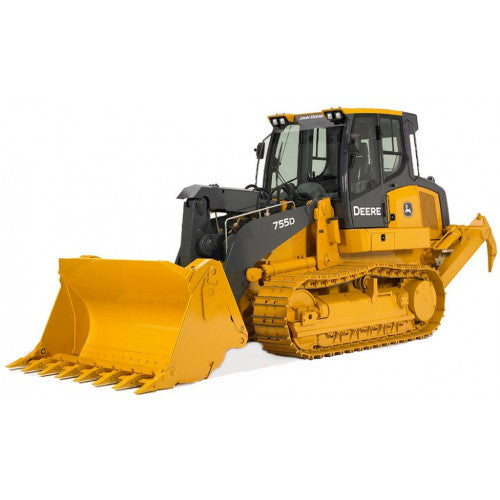

The John Deere 755D Crawler Loader relies on a sophisticated dual-path hydrostatic drive system to deliver its trademark agility. Unlike a mechanical transmission, this system is governed by electronic controllers that constantly adjust pump flow and motor speed. When the machine feels "sluggish," tracks don't counter-rotate correctly, or a warning light flashes on the monitor, mechanical wrenches are useless. The John Deere 755D Operation and Test Manual (TM2366) is the "software key" to the machine. It provides the logic, data, and testing procedures required to diagnose the electronic and hydraulic nervous system behind the iron.

This manual is the authority on System Diagnostics, Electronic Circuit Analysis, and Hydrostatic Logic. It bridges the gap between a vague operator complaint and a specific failed component. Whether you are calibrating a replacement controller or tracing a short in the joystick harness, TM2366 gives you the factory-specified voltage values, pressure settings, and calibration steps to ensure the 755D responds exactly as the engineers intended.

TM2366 Diagnostic Manual Profile

• Target Machine: John Deere 755D Crawler Loader
• Manual ID: TM2366
• Manual Class: Operation & Test (Diagnostic Focus)
• Primary Utility: Fault Isolation, System Calibration, Pressure Testing
• Key Systems: Hydrostatic Drive Logic, Electrical, Hydraulic
• Format: Digital PDF (Searchable, Portable)
• Language: English

Hydrostatic & Electrical Troubleshooting

Deciphering Hydrostatic Logic & Codes

The heart of the 755D is its hydrostatic management system. This manual contains the complete Diagnostic Trouble Code (DTC) index for the machine's controllers. It doesn't just list the code; it guides you through the logic tree to identify the root cause—be it a speed sensor, a pressure transducer, or the controller itself. It also details the critical calibration procedures required after replacing any hydrostatic component, ensuring the pumps and motors are perfectly synced for straight tracking and smooth turning.

Electrical Schematic Tracing

Modern crawlers are wired like aircraft. TM2366 provides high-resolution, color-coded wiring diagrams that map every circuit in the 755D. From the engine ECU to the cab controls, you can trace power and signal paths with precision. The manual includes connector end views and pin-out charts, so you know exactly which wire carries 5 volts and which carries 12, eliminating the guesswork when probing with a multimeter.

System Operational Checkout

Before you send the machine back to the dirt, it must be proven. This manual outlines the Operational Checkout procedures used by dealer technicians. It covers the specific tests for hydraulic cycle times, bucket drift, and track speed. By following these standardized tests, you can quantitatively verify that the machine is performing at 100% efficiency, giving you confidence in the repair.

Who Relies on This Diagnostic Guide?

• Dealer-Level Technicians: Diagnosing complex hydrostatic drive issues.
• Fleet Electricians: Repairing harness damage and sensor faults.
• Service Managers: interpreting fault codes to make repair decisions.
• Advanced Owners: Who want to calibrate their own machines without a service call.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we know that accurate data is the difference between a fixed machine and a parts-swapping nightmare. We supply the authentic John Deere 755D Diagnostic Manual (TM2366) to ensure you have the precise, model-specific information you need. Generic manuals cannot guide you through a hydrostatic calibration; our manual delivers the factory-verified steps to get it right. Download the intelligence your shop needs to master the 755D's technology.

Need to pull the pumps or rebuild the undercarriage? You'll need the Mechanical Repair Manual (TM2367), also available in our John Deere Equipments Collection.

755D Diagnostic FAQ

Does this manual explain how to calibrate the hydrostatic drive?

Yes, it includes the step-by-step calibration procedures for the pumps and motors, which is essential after any major hydraulic repair.

I have a code for the track speed sensor. Is the test procedure included?

Absolutely. The manual lists the DTCs and provides the electrical testing sequence to verify the sensor and its circuit.

Can I see the hydraulic flow diagrams?

Yes. The manual includes hydraulic flow schematics that show the logic of the hydrostatic system and the loader hydraulics.

Does this cover engine mechanical repair?

No. This manual covers engine diagnostics (codes and sensors). For physical engine disassembly, you need the Repair Manual or Engine CTM.
