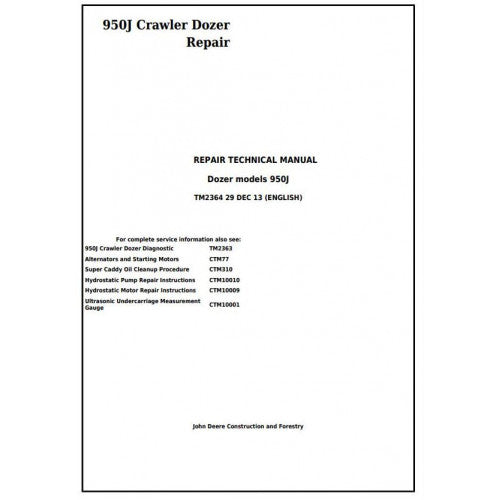

TM2364 John Deere 950J Crawler Dozer Pdf Repair Service Technical Manual

John Deere 950J Crawler Dozer Repair Service Technical Manual (TM2364)

The John Deere 950J is a production-class dozer designed for the heaviest pushing and ripping applications. When a machine of this magnitude comes into the shop for major service, it requires more than standard tools—it requires industrial-grade technical data. The John Deere 950J Repair Manual (TM2364) is the "heavy surgery" guide for this crawler. Unlike the diagnostic manual that deals with software and sensors, this document is dedicated to the mechanical disassembly, component overhaul, and structural repair of the machine.

This manual is written for the master technician who needs to split a track chain, drop a belly pan, or rebuild a hydrostatic transmission. It provides the specific lifting points, torque sequences, and internal wear tolerances necessary to safely handle components that weigh thousands of pounds. With TM2364, you aren't guessing at bolt grades or seal orientations; you are following the factory-approved blueprint to restore the 950J to its original earthmoving capability.

TM2364 Manual Specifications

• Machine Model: John Deere 950J Crawler Dozer
• Manual Number: TM2364
• Manual Class: Service Repair Technical Manual (Mechanical)
• Primary Focus: Teardown, Rebuild, and Installation
• Key Systems: Hydrostatic Powertrain, Undercarriage, Frame
• Format: Digital PDF (Searchable, Printable)
• Language: English

Heavy Mechanical Repair Coverage

Hydrostatic Powertrain Overhaul

The 950J's power comes from its massive dual-path hydrostatic pumps and motors. While the diagnostic manual handles the pressure testing, TM2364 covers the physical removal and bench repair of these components. It details the procedure for separating the pump stack from the engine, replacing the shaft seals, and inspecting the rotating groups for scoring. It also covers the final drive planetary rebuilds, ensuring that the immense torque generated by the hydrostatics is transferred to the tracks without failure.

Undercarriage & Track Frame Service

The undercarriage is the costliest wear system on a dozer. This manual is your guide to extending its life through proper maintenance. It covers the complete disassembly of the track frames, including the removal of pivot shafts and equalizer bars. You will find step-by-step instructions for splitting the master link, replacing idlers and rollers, and servicing the hydraulic track adjusters. Proper attention to these details prevents catastrophic track loss in deep mud or steep terrain.

Cooling Package & Blade Hydraulics

A 950J generates significant heat. This manual covers the removal and repair of the cooling package, including the hydraulic fan drive motor. It also details the resealing of the blade and ripper cylinders, providing the exploded views needed to replace piston seals and gland nuts correctly. Whether you are fixing a weeping lift cylinder or replacing the trunnion balls on the push arms, this manual ensures the dozer's front-end geometry remains tight and effective.

Who Needs This Repair Manual?

• Heavy Equipment Mechanics: Performing engine removals, transmission swaps, and major repairs.
• Undercarriage Specialists: Managing pin and bushing turns and track replacements.
• Mining & Forestry Operations: Maintaining 950J fleets in remote, high-wear environments.
• Component Rebuilders: Who need factory specs to refurbish pumps, motors, and cylinders.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we understand the stakes involved in repairing production-class dozers. We supply the authentic John Deere 950J Repair Manual (TM2364) because generic instructions simply cannot support the complexity of a hydrostatic machine. Our manual provides the specific, serial-number-verified data you need to execute heavy repairs safely and correctly. When you download from us, you are equipping your workshop with the technical confidence to tackle the biggest jobs on the site.

Need to troubleshoot electrical codes or calibrate the transmission? You'll need the Operation & Test Manual, also available in our John Deere Equipments Collection.

950J Repair FAQ

Does this manual cover the engine internal rebuild?

It covers engine removal and external component service. For internal engine rebuilding (pistons, crank), you will need the specific PowerTech Engine Component Manual (CTM).

Is the diagnostic testing included?

No. Pressure testing, fault codes, and electrical diagnostics are in the separate Operation and Test Manual. This book is for mechanical repair.

Does it show how to remove the cab?

Yes. The manual details the cab tilting and removal procedure, which is often necessary for accessing the hydrostatic pumps and drivetrain.

Does it cover the ripper assembly?

Yes. It includes the mechanical repair and cylinder resealing for both the standard and multi-shank ripper attachments.
