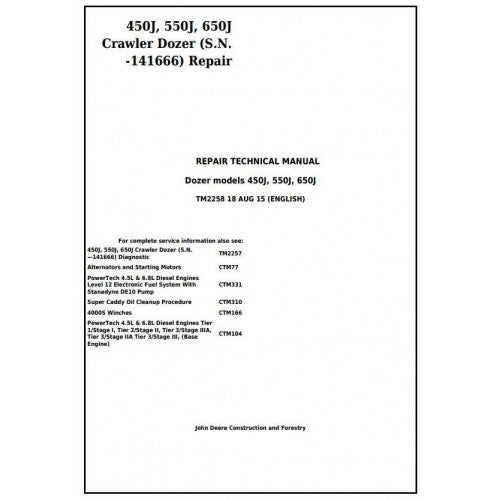

TM2258 John Deere 450J, 550J, 650J Crawler Dozer Pdf Repair Service Technical Manual

John Deere 450J, 550J, 650J (S.N. < 141666) Crawler Dozer Repair Service Technical Manual (TM2258)

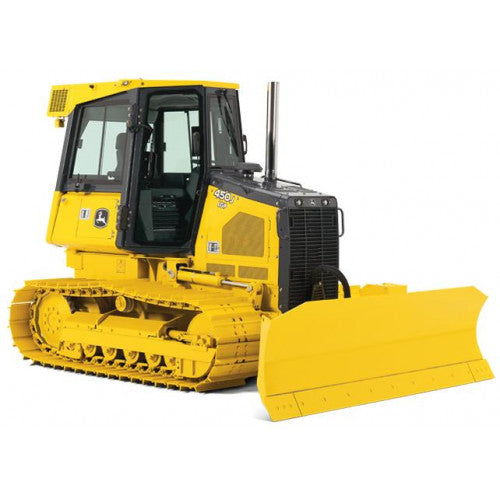

The John Deere 450J, 550J, and 650J are the undisputed champions of finish grading and residential site prep. However, for the earlier J-Series machines (Serial Numbers prior to 141666), maintaining that "fine touch" requires strict mechanical vigilance. Slop in the blade linkage or a worn hydrostatic motor can turn a final grade into a washboard. The John Deere 450J-650J Repair Manual (TM2258) is the workshop authority dedicated to keeping these precision machines tight and responsive.

This manual is distinct from the diagnostic software guides; it is a comprehensive mechanical remediation handbook. It addresses the physical realities of an aging dozer fleet: leaking cylinder glands, worn track pins, and vibrating pump stacks. TM2258 provides the factory-specified torque values, lifting diagrams, and assembly tolerances needed to strip these machines down to the frame and rebuild them. Whether you are an owner-operator keeping a single 450J alive or a fleet manager rotating a 650J through a major overhaul, this document ensures the work is done right.

TM2258 Manual Profile

• Target Machines: John Deere 450J, 550J, 650J Crawler Dozers
• Serial Number Limit: Machines built before S.N. 141666
• Manual ID: TM2258
• Manual Class: Service Repair Technical Manual (Mechanical)
• Primary Focus: Teardown, Inspection, Re-assembly
• Key Systems: Hydrostatic Hardware, Undercarriage, C-Frame
• Format: Digital PDF (Searchable, Printable)
• Language: English

Mechanical Service & Component Overhaul

Hydrostatic Pump & Motor Replacement

The agility of the small J-Series comes from its dual-path hydrostatic drive. When components fail, replacing them is a heavy job. TM2258 covers the physical removal and installation of the hydrostatic pumps and motors. It details the critical procedure for tilting the cab safely to access the drivetrain. You will find instructions for disconnecting the high-pressure lines, removing the pump stack from the flywheel, and verifying the drive shaft alignment to prevent future coupling failures.

Undercarriage & Track Frame Reconstruction

On a finish dozer, the undercarriage dictates stability. This manual is the guide to restoring the track system on the 450J/550J/650J. It covers the complete disassembly of the track roller frames, including the removal of the front idler and the recoil spring assembly. It provides the step-by-step method for splitting the master link and replacing the bottom rollers. Crucially, it details the adjustment of the pivot shafts to ensure the frame sits square to the ground.

Blade, C-Frame & Ripper Repair

Precision grading relies on a rigid blade connection. TM2258 details the refurbishment of the C-frame and blade linkage, including the replacement of the trunnion balls and the angling pivot pins. It provides exploded views for resealing the 6-way blade cylinders, specifying the correct tool usage for gland nut removal. This allows you to eliminate "blade chatter" and restore the machine's ability to hold a tight grade.

Who Needs This Service Manual?

• Owner-Operators: Who rely on their 450J/550J for their livelihood and perform their own repairs.
• Heavy Equipment Mechanics: Handling major powertrain repairs on early J-Series dozers.
• Undercarriage Specialists: Performing track replacements and frame alignments.
• Component Rebuilders: Refurbishing hydrostatic units and cylinders to factory specs.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we understand that specific serial number ranges matter. A manual for a late-model 650J won't help you with the pump stack on a unit built before SN 141666. We supply the authentic John Deere 450J-650J Repair Manual (TM2258) to ensure you have the precise data for your early-model machine. When you are deep in a rebuild, you need certainty, not guesswork. Our manual delivers the factory-verified data required to tackle the heaviest repairs safely and correctly.

Need to troubleshoot electrical codes or calibrate the transmission? You'll need the Operation & Test Manual, also available in our John Deere Equipments Collection.

Early J-Series Repair FAQ

Does this manual cover the engine internal rebuild?

It covers engine removal and external component service. For internal engine rebuilding (pistons, crank), you will need the specific PowerTech Engine Component Manual.

Is the diagnostic testing included?

No. Pressure testing, fault codes, and electrical diagnostics are in the separate Operation and Test Manual. This book is for mechanical repair.

Does it show how to tilt the cab?

Yes. The manual details the cab tilting procedure and the necessary safety locks required to access the hydrostatic components.

Does it cover the 6-way blade (PAT)?

Yes. It includes the complete disassembly and resealing of the Power-Angle-Tilt (PAT) blade cylinders and linkage.
