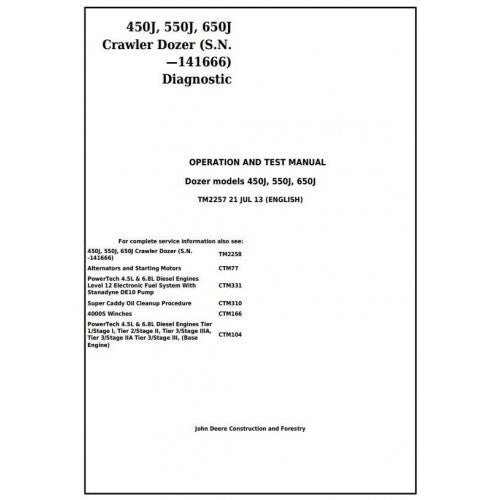

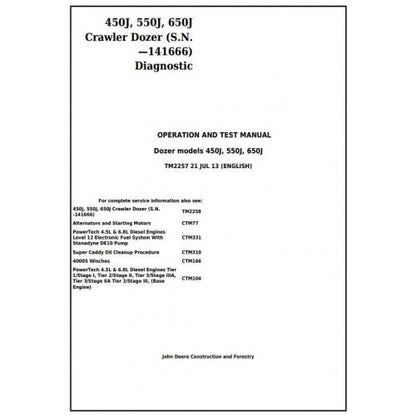

TM2257 John Deere 450J, 550J, 650J Crawler Dozer Pdf Diagnostic, Operation and Test Service Manual

John Deere 450J, 550J, 650J (S.N. < 141666) Operation & Test Technical Manual (TM2257)

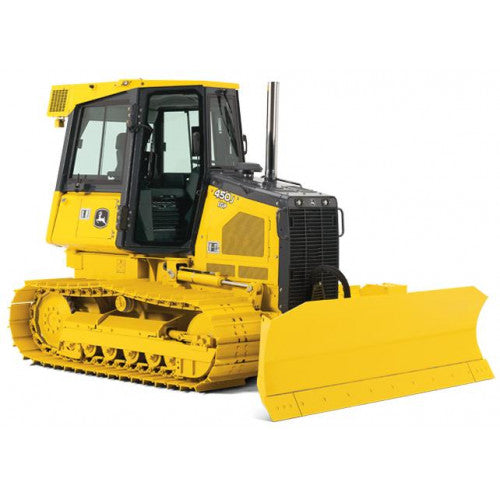

The John Deere 450J, 550J, and 650J are precision instruments, designed to cut final grades within fractions of an inch. But for the early J-Series machines (Serial Numbers prior to 141666), that precision is entirely dependent on a complex web of sensors and solenoids. When a blade starts to "jitter" or the tracks drift during a straight push, mechanical adjustments often fail to solve the issue. The John Deere 450J-650J Operation and Test Manual (TM2257) is the specialized diagnostic tool you need to restore the "fine touch" to your machine.

This manual is not about turning wrenches; it is about tuning the machine's nervous system. It provides the specific logic trees, electrical schematics, and calibration codes for the early J-Series Transmission Control Units (TCU). Whether you are diagnosing a dead instrument cluster or calibrating the hydrostatic pumps to eliminate "creep," TM2257 gives you the digital roadmap to find the fault, fix the wiring, and verify the repair without swapping out expensive parts.

TM2257 Diagnostic Manual Profile

• Target Machines: John Deere 450J, 550J, 650J Crawler Dozers
• Serial Number Limit: Machines built before S.N. 141666
• Manual ID: TM2257
• Manual Class: Operation & Test (Diagnostic Focus)
• Primary Utility: Fault Isolation, System Calibration, Pressure Testing
• Key Systems: Hydrostatic Logic, PAT Blade Electronics, Electrical
• Format: Digital PDF (Searchable, Portable)
• Language: English

Restoring Electronic & Hydraulic Precision

Calibrating the "Feel"

Operators love the J-Series for its responsiveness, but that feel degrades over time as components wear. TM2257 details the essential calibration procedures for the hydrostatic drive and the Power-Angle-Tilt (PAT) blade. It guides you through the technician menus to reset the neutral points and maximum speeds for the track motors. This is the only way to cure tracking issues on an early 450J or 550J where the sensors have drifted from their factory baselines.

Tracing Early J-Series Wiring

The wiring harness on a dozer built before 2005 (SN < 141666) is unique. Using a schematic from a later model will lead you to dead ends. This manual provides the authentic, VIN-specific wiring diagrams for your specific vintage. You can trace the circuits for the decelerator pedal, the blade control joystick, and the monitor panel with absolute confidence. The included connector pin-out charts allow you to verify voltage and resistance at every splice point, quickly isolating shorts or open circuits.

Hydraulic Verification

Is the problem the pump or the signal? TM2257 outlines the Operational Checkout procedures to give you a definitive answer. It provides the specific pressure testing ports and target values for the charge pressure, drive pressure, and implement relief valves. By connecting your gauges and following the test sequence, you can prove whether a sluggish blade is due to a bad solenoid (cheap fix) or a worn pump (expensive fix).

Who Needs This Diagnostic Guide?

• Finish Grade Specialists: Who cannot afford a machine that tracks crooked or drifts.
• Independent Mechanics: Who need dealer-level data to troubleshoot hydrostatic codes.
• Fleet Managers: Keeping their paid-off early J-Series machines in the rotation.
• Field Service Techs: Who need portable access to fault codes and schematics on the job site.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we understand that "close enough" is dangerous with serial-numbered electronics. We supply the authentic John Deere 450J-650J Diagnostic Manual (TM2257) to ensure you have the precise data for your early-model dozer. Generic manuals simply don't cover the specific calibration steps or wiring variations found in these specific serial ranges. Download the factory-verified intelligence you need to keep your fleet's electronics reliable.

Need to pull the tracks or rebuild the final drives? You'll need the Mechanical Repair Manual (TM2258), also available in our John Deere Equipments Collection.

Early J-Series Diagnostic FAQ

Does this manual cover the PAT blade diagnostics?

Yes, it includes the troubleshooting logic and wiring for the Power-Angle-Tilt (PAT) blade controls and solenoid valves.

I have a code for the track speed sensor. Is the test procedure included?

Absolutely. The manual lists the DTCs and provides the electrical testing sequence to verify the sensor and its circuit.

Does this manual explain how to calibrate the hydrostatic drive?

Yes, it includes the step-by-step calibration procedures for the pumps and motors, which is mandatory after replacing any hydrostatic component.

Does this cover engine mechanical repair?

No. This manual covers engine diagnostics (codes and sensors). For physical engine disassembly, you need the Repair Manual or Engine CTM.
