TM2067 John Deere 1910 Commodity Air Cart Ground Drive Pdf Technical Service Manual

Securing the Analog Precision of the 1910 Ground Drive

Before the widespread adoption of purely electronic metering, the John Deere 1910 Commodity Air Cart relied on a highly robust ground-drive system. This analog transmission utilizes the physical rotation of a contact tire to drive a series of chains, sprockets, and mechanical clutches that turn the seed and fertilizer meters. The beauty of this system is its direct relation to ground speed; however, its accuracy depends entirely on the mechanical condition of the drivetrain. When chain tensioners fail, sprocket teeth hook, or the meter cartridge bearings seize, your application rates will fluctuate wildly, impacting yield. The John Deere 1910 Commodity Air Cart Ground Drive Technical Manual (TM2067) is your definitive mechanical roadmap. It supplies the rigorous factory teardown procedures, chain routing diagrams, and specific hardware torque limits necessary to rebuild the physical iron of this massive delivery tool.

Workshop Mechanics' FAQ

Are the electrical Schematic Wiring Diagrams or SeedStar monitor DTC codes printed in this manual?
No. Adhering to strict factory documentation protocols, the Service Repair Technical Manual handles information strictly on how to repair a machine mechanically. In only John Deere manuals, the Diagnostic, Operation, and Test manual serves as the exclusive source for Schematic Wiring Diagrams, Diagnostic Trouble Codes (DTCs), and their related electrical testing logic.

Will this TM2067 document show me how to completely rebuild the mechanical meter cartridges?
Yes. This physical repair manual delivers incredibly meticulous, step-by-step physical disassembly instructions, hardware torque guidelines, and rebuild procedures for the meter rollers, wear plates, and primary mechanical clutches.

Does the manual explain the internal engine teardown for the towing tractor?
No. Because this unit is a tow-behind commodity cart, it relies on the tractor for forward momentum and hydraulic flow, meaning it has no internal engine. Additionally, in John Deere manuals, they don't cover engine service and repair; they just cover some basic information. A dedicated engine Component Technical Manual is required for the tractor itself.

Is this digital file easy to navigate on a mobile device while I am replacing a drive chain in the shed?
Absolutely. Delivered as a highly compatible, fully searchable digital PDF, you can easily open this file on your smartphone, tablet, or rugged shop laptop, allowing you to reference critical routing diagrams directly at the cart.

Iron Rehabilitation & Component Overhaul

This technical publication purposely bypasses electronic diagnostic procedures to focus entirely on the heavy structural weldments, pneumatic plumbing, and rotating mechanical assemblies of the ground-driven 1910 cart:

• Ground-Drive Transmission Mechanics: Exhaustive dismantling steps for the mechanical drive assemblies. Covers the repair of the contact tire arm, replacement of mechanical clutches, precise alignment of hex shafts, and exact chain routing parameters.
• Commodity Metering Cartridges: Complete physical restoration protocols for the seed and fertilizer meters. Details the extraction of worn bearings, replacement of seals, and physical rebuilding of the meter housings to prevent product leakage and ensure exact volumetric delivery.
• Auger and Handling Equipment: Step-by-step unbolting and repair guidance for the heavy loading/unloading auger, including flighting inspection, hinge pivot pin replacement, and hydraulic motor coupling maintenance.
• Pneumatic and Fan Hardware: Comprehensive physical reconstruction instructions for the massive hydraulic fan assembly. Learn how to accurately press new mechanical bearings into the blower housing and inspect the primary air manifolds for structural wear.

TM2067 Technical Specifications Matrix

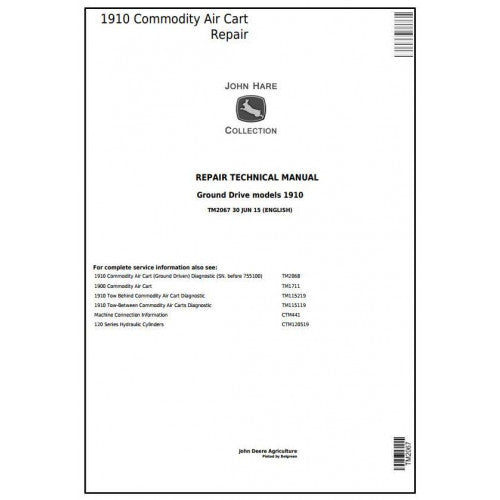

Manual Title	John Deere 1910 Commodity Air Cart (Ground Drive) Technical Manual
Manual Number	TM2067
Equipment Type	Commodity Air Cart / Tow-Behind Delivery Implement
Manual Type	Service Repair Technical Manual
Models Covered	John Deere 1910 (Ground Driven Configuration)
Key Systems Covered	Mechanical Drive Transmissions, Metering Cartridges, Loading Augers, Hubs
File Format	Searchable Digital PDF
Language	English
Delivery Method	Instant Download After Payment

Who Maximizes Implement Uptime with this Blueprint?

Tearing into a complex ground-drive transmission without original engineering measurements risks misaligned shafts and catastrophic field breakdowns during the narrow seeding window. This mechanical guide is a mandatory shop companion for:

• Independent Agricultural Mechanics: Accelerate your shop's repair throughput. Utilize the searchable digital layout to instantly isolate heavy hardware torque values and complex gearbox disassembly sequences right at the workbench.
• Large-Scale Grain Farmers: Standardize your extensive off-season maintenance program. Guarantee every drive chain, bearing, and meter cartridge on your 1910 cart meets John Deere's exact mechanical tolerances.
• Equipment Refurbishers: Ensure the structural and mechanical soundness of pre-owned ground-drive carts by utilizing factory-certified procedures for drivetrain alignment and auger repair.

Procure Your Factory Mechanical Guide Instantly

Guarantee that every rotating component on your commodity cart is torqued and aligned to genuine engineering standards before you hit the field. Download the John Deere 1910 Air Cart TM2067 Technical Manual instantly at Manualsmarket.com. Explore our complete digital catalog within the John Deere Service Manual Collection. Securing this TM2067 PDF download provides the precise physical procedures required to rebuild meters, overhaul heavy transmission drives, and maintain the relentless mechanical reliability of your air seeding operation.
