TM1859 John Deere 700H Crawler Dozer Pdf Repair Service Technical Manual

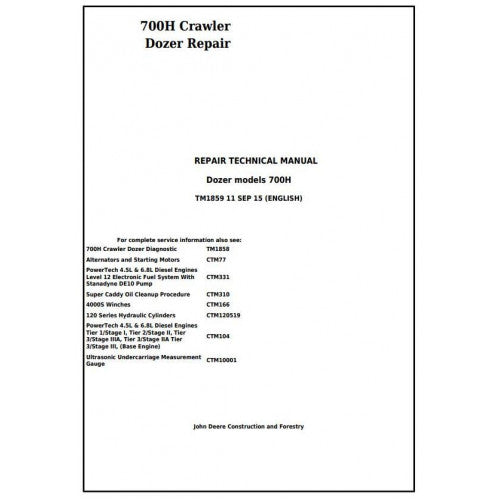

John Deere 700H Crawler Dozer Repair Service Technical Manual (TM1859)

The John Deere 700H represents a pivotal moment in dozer history—the machine that solidified the reputation of hydrostatic drive in mid-size crawlers. Today, these H-Series veterans are still earning their keep on farms, logging roads, and construction sites, but they require a different level of care than their newer counterparts. The John Deere 700H Repair Manual (TM1859) is the essential preservation tool for this specific generation. It is designed not just for repair, but for the restoration and mechanical rehabilitation of a machine that has likely seen thousands of hours of hard labor.

Unlike modern manuals that prioritize software, TM1859 prioritizes steel. It addresses the realities of aging iron: worn pivot shafts, leaking pump seals, and loose track frames. This document provides the factory-engineered disassembly sequences and assembly tolerances needed to tear down the 700H’s major components and rebuild them to their original specifications. Whether you are resealing the blade cylinders or performing a complete hydrostatic transmission overhaul, this manual ensures your H-Series dozer continues to push long after others have retired.

TM1859 Manual Profile

• Target Machine: John Deere 700H Crawler Dozer
• Manual ID: TM1859
• Manual Class: Service Repair Technical Manual (Mechanical)
• Primary Focus: Heavy Component Removal, Teardown, and Rebuild
• Key Systems: Hydrostatic Drivetrain, H-Frame Undercarriage, Engine
• Format: Digital PDF (Searchable, Printable)
• Language: English

Reviving the H-Series: Mechanical Coverage

Hydrostatic Transmission & Pump Service

The 700H’s performance hinges on the health of its dual-path hydrostatic system. When power fades or leaks appear, TM1859 guides you through the heavy maintenance of the pump and motor assemblies. It details the procedure for safely tilting the cab to expose the drivetrain, decoupling the high-pressure hoses, and removing the pump stack from the flywheel housing. Crucially, it provides the inspection criteria for the internal rotating groups, helping you decide whether to reseal or replace heavily worn components.

Undercarriage & Track Frame Rehabilitation

Decades of grinding through dirt take a toll on the undercarriage. This manual is your guide to rebuilding the 700H’s track system from the ground up. It covers the removal of the track roller frames, the refurbishment of the pivot shafts, and the replacement of the equalizer bar bushings. You will find specific instructions for splitting the track chain, pressing out the master pin, and installing new idlers and rollers. Correctly setting the bearing preload on these components is vital for preventing premature failure.

Cylinder & Structural Repair

Slop in the blade linkage ruins grading accuracy. TM1859 details the refurbishment of the C-frame and blade pivots, including the replacement of the trunnion balls. It provides exploded views for resealing the lift, angle, and tilt cylinders, specifying the correct gland nut torque and seal orientation. Additionally, it covers the engine removal procedure, giving you the clearance and disconnection points needed to pull the PowerTech diesel for a major overhaul.

Who is this Manual For?

• Restoration Mechanics: Bringing high-hour 700H dozers back to factory condition.
• Small Contractors: Who rely on older, paid-off equipment and perform their own repairs.
• Independent Hydraulic Shops: Rebuilding legacy hydrostatic pumps and motors.
• Farmers & Landowners: Maintaining a 700H for property management and clearing.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we respect the legacy of the H-Series. We supply the authentic John Deere 700H Repair Manual (TM1859) because we know that accurate data is the only way to keep older machines running safely. Generic manuals often miss the specific hydrostatic nuances of the H-Series; our manual delivers the exact torque specs, pressure settings, and lifting diagrams intended for this model. When you download from us, you are investing in the long-term reliability of your equipment.

Need to troubleshoot electrical codes or calibrate the transmission? You'll need the Operation & Test Manual, also available in our John Deere Equipments Collection.

700H Repair FAQ

Does this manual cover the engine internal rebuild?

It covers engine removal and external component service. For internal engine rebuilding (pistons, crank, bearings), you will need the specific PowerTech Engine Component Manual (CTM).

Is the diagnostic testing included?

No. Pressure testing, fault codes, and electrical diagnostics are in the separate Operation and Test Manual. This book is for mechanical repair.

Does it show how to tilt the cab?

Yes. The manual details the cab tilting procedure and the necessary safety locks required to access the hydrostatic pumps and transmission components.

Does it cover the winch installation?

Yes. It typically includes the mechanical installation and service for the optional winch attachment, including the PTO drive.
