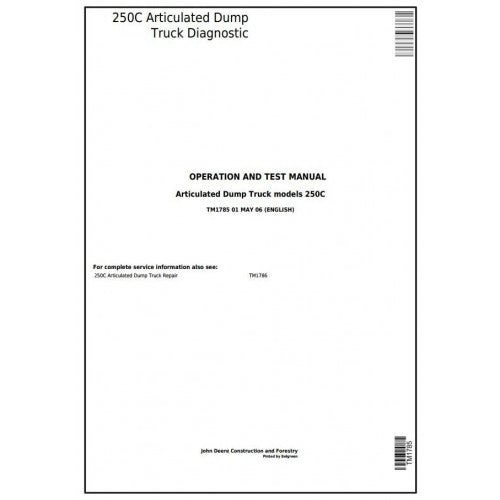

TM1785 John Deere 250C Articulated Dump Truck Pdf Diagnostic, Operation and Test Service Manual

System Evaluation & Electrical Troubleshooting: John Deere 250C

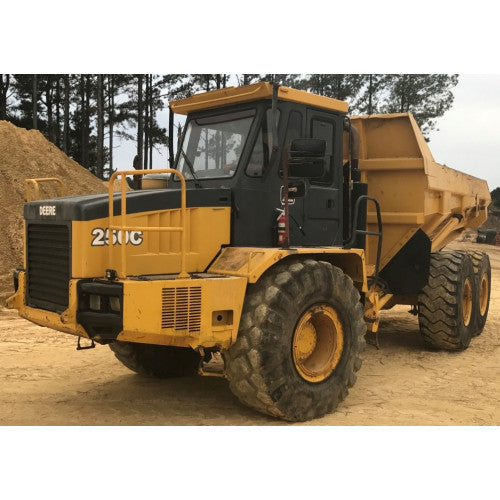

The John Deere 250C articulated dump truck frequently serves as the primary hauling asset for mid-sized utility construction, residential site preparation, and municipal earthmoving. Because it navigates tight turning radii and soft ground conditions daily, the onboard hydraulic control valves and steering angle sensors must function in perfect synchronization. When the primary dashboard monitor throws an unexpected error or the dump body hoist refuses to engage, randomly probing wires wastes valuable production hours. To isolate the exact root cause of a system failure, heavy machinery electricians must utilize the precise testing data compiled in the John Deere 250C Diagnostic, Operation and Test Manual (TM1785).

Acquiring this dedicated troubleshooting literature via manualsmarket.com ensures your maintenance facility maintains total analytical control over its hauling fleet. Instead of waiting for a mobile dealer technician to arrive with a laptop, your own staff can immediately interpret fault logic, run continuity checks, and verify fluid pressures to get the machine back into the dirt.

Core Analytical Framework

System evaluation requires distinct data sets entirely separate from physical wrenching. This TM1785 diagnostic manual maps out the interconnected electronic and hydraulic networks of the 250C hauler, providing the step-by-step procedures required to trace intermittent faults.

Complete Schematic Wiring Diagrams

Navigate the entire electrical nervous system of the hauler. The manual provides highly detailed circuit maps for the cab, chassis, and articulation joint, allowing technicians to test specific connector pin-outs and locate compromised harness grounds.

Diagnostic Trouble Codes (DTCs)

Translate dashboard warning lights into actionable repair steps. Access the exhaustive library of fault codes, identifying the specific sensor inputs that trigger the error and the sequential electronic tests necessary to clear it.

Hydraulic Flow & Pressure Analytics

Validate the operational efficiency of the fluid power systems. Execute prescribed pressure tests and flow checks for the primary steering cylinders, proportional control valves, and the multi-stage hoist pump.

Drivetrain Operational Logic

Diagnose automated shifting issues without dismantling the gearbox. Evaluate the electronic handshake between the transmission controller and shift solenoids, and perform mandated calibration routines for the clutch packs.

Document Specification Matrix

Equipment Platform	John Deere 250C Articulated Dump Truck
Literature Designation	Diagnostic, Operation, and Test Procedures
Publication Number	TM1785
Delivery Architecture	Searchable Digital PDF

Common Diagnostic Inquiries

Are the instructions for tearing down the front axle included in this file?
No. John Deere specifically separates analytical data from physical hardware repair. Mechanical teardowns, bearing replacements, and heavy part extraction are documented exclusively in the Service Repair Technical Manual. This TM1785 document focuses entirely on operational tests, schematic wiring diagrams, and identifying DTCs.

Will this manual help my mechanics troubleshoot the main diesel engine?
This publication thoroughly covers the electronic communication network between the hauler's primary controllers and the engine control unit (ECU). However, if your diagnostic process determines that deep internal engine work is required—such as evaluating cylinder compression or testing individual fueling components—you must secure the dedicated Component Technical Manual authored specifically for that power plant.

Does this document provide the sensor calibration sequences?
Yes. To ensure the automated systems function properly, the manual details the correct setup and calibration routines for payload monitors, suspension height sensors, and articulation angle indicators.

Can I quickly find a specific error code in this digital format?
Absolutely. The searchable PDF architecture allows your heavy equipment electricians to type the exact code displayed on the cab monitor into the search function, instantly navigating to the corresponding electrical test chart.

Secure Your Haul Cycle Timelines

Do not allow unresolved electrical shorts or minor hydraulic pressure deviations to sideline your earthmoving projects. Obtain the John Deere 250C Diagnostic & Test Manual TM1785 today to provide your service personnel with the factory-certified analytics necessary to maintain a fully operational fleet.
