Overcome Component Failure: JD 324H & 344H Mechanical Restoration

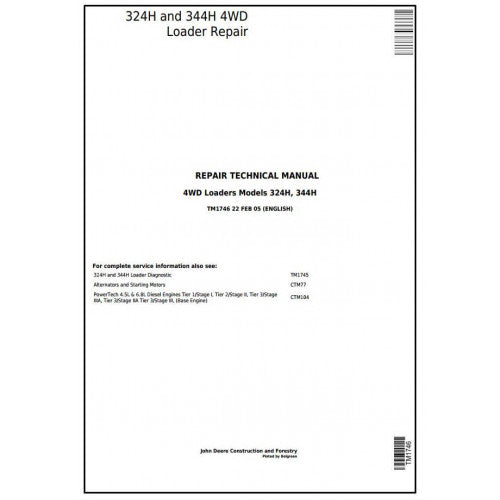

When your John Deere 324H or 344H compact loader starts leaving hydraulic fluid on the pavement or grinding in the drive axles, pushing the machine further will only lead to catastrophic breakdown. These versatile 4WD loaders are heavily relied upon in lumber yards, agricultural feedlots, and municipal maintenance, meaning extreme physical wear on the linkage pins, brake assemblies, and hydrostatic components is inevitable. To properly tear down and rebuild these essential hardware systems, you cannot rely on guesswork. The John Deere 324H and 344H Repair Service Technical Manual (TM1746) acts as your definitive roadmap to safely dismantle, inspect, and reconstruct the heavy iron of your machine.
Available for immediate digital delivery at Manualsmarket.com, this factory-authored blueprint provides the exact torque values and clearance dimensions required to fix the mechanical problem permanently and get your loader back to work.
TM1746 Technical Document Profile
| Equipment Specifications | Service Document Details |
|---|---|
| Target Machine Models | John Deere 324H, 344H 4WD Loaders |
| OEM Publication Code | TM1746 |
| Document Category | Repair Service Technical Manual |
| Core Competency | Component Teardown, Hardware Rebuilding |
| Delivery Format | Searchable Digital PDF Archive |
Targeted Mechanical Solutions
This repair guide is engineered specifically for the physical restoration and structural integrity of your compact equipment.
- Drivetrain Overhauls: Detailed instructions for removing and repairing the hydrostatic drive motor and related power components, ensuring correct mechanical alignment and power delivery.
- Axle & Differential Rebuilds: Step-by-step guidance for dismantling the front and rear axles, inspecting planetary gears, and replacing worn differential bearings to restore traction.
- Loader Linkage Restoration: Exact wear tolerances and replacement methods for the Z-bar linkage, bucket pins, and central pivot bushings to cure sloppy steering and boom drift.
- Hydraulic Cylinder Resealing: Complete procedures to tear down the lift, tilt, and steering cylinders, complete with exact tightening specs for the piston head nuts and packing glands.
- Braking System Service: Mechanical sequences for accessing and replacing the primary service brakes and parking brake hardware to ensure maximum job site safety.
Who Needs This Structural Guide?
- Ag Equipment Mechanics: Perform complex axle and linkage repairs on 324H and 344H models quickly for local farming operations during busy seasons.
- Construction Fleet Owners: Stop paying high dealer labor rates by equipping your own shop with the technical data to handle complete component overhauls.
- Independent Repair Technicians: Expand your service offerings by utilizing the precise OEM teardown procedures required to fix compact JD wheel loaders correctly the first time.
Frequently Asked Repair Questions
Will this show me how to rebuild the main hydraulic pump?
Yes, it covers the physical removal, disassembly, and mechanical rebuilding of the main hydraulic and hydrostatic pumps, including hardware inspection guidelines.
Can I use this PDF to figure out why my dash lights are flashing?
No. Dashboard error codes, wiring schematics, and sensor diagnostics are found in the Diagnostic, Operation, and Test manual. The TM1746 is strictly dedicated to physical hardware repair.
Does this manual cover internal engine overhauls?
It provides the procedures to remove the entire engine assembly from the loader chassis. However, specific internal engine teardowns (like replacing pistons or the crankshaft) require a separate Component Technical Manual (CTM) for that exact engine model.
Is the document printable for shop use?
Yes, the digital PDF format allows you to easily print specific chapters—such as the differential rebuild section—so you can keep the exploded views at your workbench without getting grease on a laptop.
Restore Your Machine's Integrity
Don't let worn pins or a weeping final drive sideline your daily operations. Download the John Deere 324H, 344H Repair Manual TM1746 today and execute professional-grade mechanical repairs right in your own shop.
