TM1743 John Deere 450H, 550H, 650H Crawler Dozer Pdf Diagnostic, Operation and Test Service Manual

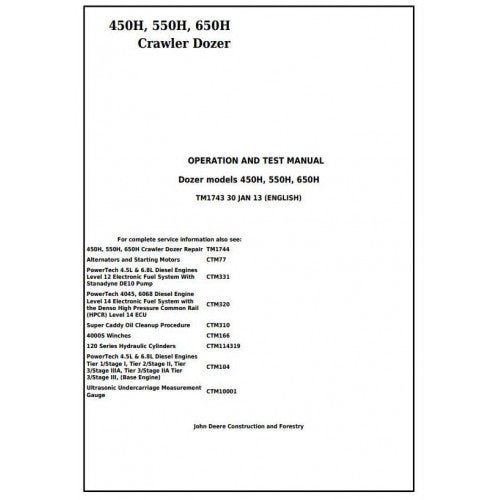

John Deere 450H, 550H, 650H Crawler Dozer Operation & Test Technical Manual (TM1743)

The John Deere H-Series (450H, 550H, 650H) sits in a unique era of heavy equipment history. These dozers are built with heavy iron reliability but driven by early-generation computer logic. When an H-Series dozer acts up—perhaps the tracks won't counter-rotate, or the machine feels "dead" despite a roaring engine—the problem is rarely a broken gear. It is almost always a signal failure. The John Deere Operation and Test Manual (TM1743) is your roadmap through the electronic and hydraulic nervous system of these machines.

Stop throwing sensors at the problem. This manual is designed to help you isolate the failure before you order a single part. It provides the logic trees that explain why the Transmission Control Unit (TCU) is limiting power. It converts the cryptic error codes on the dashboard into actionable repair steps. Whether you are dealing with a 20-year-old wiring harness that has rubbed through or a displacement control valve that is sticking, TM1743 gives you the testing procedures to prove the fault with a multimeter and a pressure gauge.

TM1743 Manual Profile

• Target Models: John Deere 450H, 550H, 650H
• Manual ID: TM1743
• Manual Type: Operation & Test (Diagnostics & Electronics)
• Core Function: Code Interpretation, Circuit Tracing, System Verification
• Key Systems: Hydrostatic Control Unit, PowerTech Engine Electronics, Monitor System
• Format: Digital PDF (Searchable, Portable)
• Language: English

Troubleshooting the H-Series Architecture

Decoding Dashboard Error Codes

The H-Series monitor is your first line of defense, but the codes it flashes are meaningless without the key. TM1743 contains the complete Diagnostic Trouble Code (DTC) library for the H-Series. It goes beyond simple definitions; it provides a step-by-step testing path for each code. If you see a code for the "Left Track Speed Sensor," the manual doesn't just tell you to replace it—it shows you how to test the supply voltage, the signal return, and the harness continuity to ensure the sensor is actually the problem.

Complete Wiring & Hydraulic Schematics

You cannot fix an electrical short if you don't know where the wires go. This manual provides system-specific wiring diagrams that lay out the entire electrical architecture of the 450H, 550H, and 650H. Unlike generic diagrams, these schematics identify wire colors, connector numbers, and ground points specific to the H-Series. Similarly, the hydraulic flow diagrams allow you to visualize the path of oil from the charge pump to the drive motors, making it easier to diagnose pressure drops and flow restrictions.

Hydrostatic Drive "Zeroing" & Calibration

If your dozer drifts to the left or feels sluggish in reverse, it likely needs calibration, not repair. The H-Series requires precise electronic tuning to balance the dual-path hydrostatic pumps. TM1743 details the calibration routine required to synchronize the track speeds and set the pump null angles. This procedure is critical maintenance that brings the "snap" back into the machine's performance, ensuring it responds instantly to operator input.

Essential for the Modern Heavy Mechanic

• Field Technicians: Who need to diagnose "no-start" or "no-move" conditions on the job site.
• Shop Foremen: Who need to verify a diagnosis before authorizing expensive pump replacements.
• Equipment Refurbishers: Who are restoring older H-Series units and need to rewire the cab or chassis.
• Owner-Operators: Who want to save thousands in dealer service call fees by diagnosing their own faults.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we specialize in the technical data that keeps legacy fleets profitable. The John Deere 450H-650H Diagnostic Manual (TM1743) is the authentic factory resource, not a generic aftermarket summary. It contains the specific pressure settings and voltage values that you cannot find on forums or in general repair books. Equip your shop with the intelligence to fix the H-Series right the first time.

Note: If you need to physically remove the engine or rebuild the track frames, you will need the Mechanical Repair Manual (TM1744), also available in our John Deere Equipments Collection.

Common Questions: H-Series Diagnostics

Can I use this manual to rebuild the engine?

No. This manual covers the engine sensors and wiring. If you need to replace pistons, bearings, or the crankshaft, you need the Mechanical Repair Manual or the Engine CTM.

Does this manual cover the winch?

It covers the electronic controls and hydraulic pressure testing for the winch. The mechanical installation of the winch gears is in the Repair Manual.

Will this help me fix a "tracking crooked" issue?

Yes. This is the primary manual for that issue. It guides you through the calibration process to synchronize the track speeds.

Are the pressure testing ports shown?

Yes. The manual includes photos and diagrams showing the exact location of all hydraulic test ports for the transmission and implements.
