TM170819 John Deere 9500, 9600 and 9700 Self-Propelled Forage Harvesters Pdf Technical Service Manual

Structural Iron Interventions: JD 9500, 9600 & 9700 Forage Harvesters

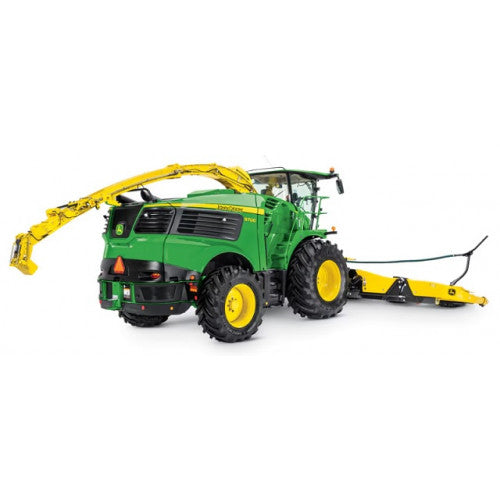

The sheer volumetric capacity of the John Deere 9000 Series—specifically the 9500, 9600, and 9700 models within the serial number block 623000-626999—redefines modern silage production. Processing such massive tonnages of abrasive crop material relentlessly degrades internal wear liners, fatigues shear bar mounts, and stresses drive bearings. When a kernel processor drive belt snaps repeatedly due to misalignment, or the main chopping cylinder requires a bearing replacement, deploying guesswork is a massive liability. The John Deere 9500, 9600, and 9700 Self-Propelled Forage Harvesters Technical Service Manual (TM170819) delivers the authoritative, factory-engineered blueprints required to physically dismantle, inspect, and reconstruct the heavy iron of your chopping fleet.

Securing this dedicated mechanical reference directly from manualsmarket.com ensures your repair facility utilizes the exact lifting sequences, heavy hardware torque values, and component alignment tolerances specified by the manufacturer. This guarantees your harvester returns to the field with uncompromising structural rigidity.

---

TM170819 Equipment Profile & Specifications

Manual Parameter	Equipment Designation
Supported Models	John Deere 9500, 9600, 9700
Serial Number Range	623000 through 626999
Machine Classification	Self-Propelled Forage Harvesters (SPFH)
Service Discipline	Technical Service (Mechanical Repair & Teardown)
Primary Document ID	TM170819

Primary Mechanical System Rebuilds

This repair-centric volume deliberately excludes software testing to focus entirely on actionable physical interventions across the machine's primary crop-flow and drive systems:

• Cutterhead & Shear Bar Hardware: Access the safe rigging protocols required to hoist the main chopping drum. Execute high-speed bearing replacements, re-shim knife mounts, and reconstruct the heavy-duty shear bar assembly.
• Kernel Processor (KP) Refurbishment: Maintain aggressive grain fracturing. Follow systematic removal instructions for the wide-body KP unit, replacing the heavy processor rolls, and servicing the drive tensioning hardware.
• Feed Roll Mechanics: Rebuild the crop gathering intake. Navigate the teardown of the feed roll housings, overhaul internal gearboxes, and restore the high-tension mechanical springs.
• Crop Accelerator & Blower Assemblies: Perform internal teardowns of the high-velocity blower housing. Replace abrasive wear liners, service the accelerator rotor, and rebuild the spout rotation gear drives.
• IVLOC & Engine Rigging: Safely extract the Infinitely Variable Length-of-Cut (IVLOC) transmission for a bench rebuild. Utilize prescribed fluid draining and lifting sequences to hoist the massive diesel power plant out of the harvester frame.

Target Workshop Audience

This manual is indispensable for Heavy Equipment Mechanics performing off-season teardowns, Commercial Harvesting Outfits maintaining large SPFH fleets, and Dealership Technicians tasked with structural drive repairs and frame alignment.

Wrenching & Service FAQ

Are specific torque limits provided for the cutterhead and KP components?
Absolutely. Because the crop channel operates under extreme rotational velocities and centrifugal forces, the manual dictates mandatory torque charts and precise tightening patterns for all rotating hardware. Deviating from these specs risks severe mechanical failure during chopping.

Will this manual help me decipher an electrical fault code on the main cab monitor?
No. Diagnosing display errors, tracking CAN bus data, tracing electrical shorts, and reading Diagnostic Trouble Codes (DTCs) are covered entirely within the Diagnostic, Operation, and Test manual. This TM170819 publication is dedicated completely to physical repairs, mechanical wrenching, and hardware assembly.

Can I use this manual to rebuild the internal pistons of the diesel engine?
While this technical guide illustrates the heavy rigging necessary to physically unbolt and extract the engine from the SPFH frame, deep internal diesel repairs require the dedicated Component Technical Manual (CTM) specifically matched to your engine platform.

Command Your Harvesting Uptime

A failed crop accelerator bearing or a fatigued main driveline can instantly halt your silage operation, leaving transport trucks idle. Arm your service bay with the John Deere 9500-9700 SPFH Repair Manual TM170819 today, and secure the mechanical blueprints needed to master the harvest season.
