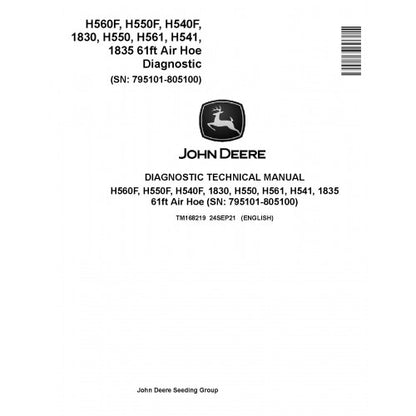

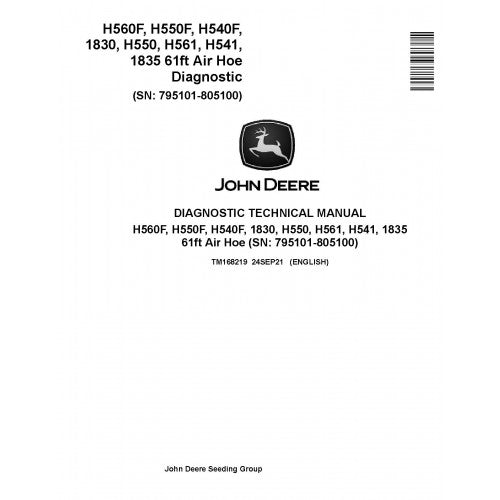

TM168219 John Deere 1830, 1835 61ft, H540F, H541, H550, H550F, H560F and H561 Air Hoe Drills Pdf Diagnostic Technical Manual
TM168219 John Deere 1830, 1835 61ft, H540F, H541, H550, H550F, H560F and H561 Air Hoe Drills Pdf Diagnostic Technical Manual
⭐⭐⭐⭐⭐ 50+ Reviews
Couldn't load pickup availability
System Analytics & Logic Interrogation: JD 1830, 1835 & H500-Series
Precision seeding across large working widths requires more than just mechanical force; it demands perfect digital synchronization between the tractor and the seeding tool. The John Deere 1830, 1835 (61ft models), and the entire H500-Series (H540F, H541, H550, H550F, H560F, H561) air hoe drills rely on an interconnected matrix of CAN bus controllers, active downforce sensors, and pneumatic monitors. When a wing-fold sequence stalls or a seed blockage sensor yields phantom warnings, standard mechanical checks are insufficient. The John Deere 1830, 1835, and H500-Series Air Hoe Drills Diagnostic Technical Manual (TM168219) is the factory-authorized analytical reference required to interrogate the machine’s electronic "brain" and fluid power networks.
By securing this specialized diagnostic resource from manualsmarket.com, your maintenance team can transition from reactive part-swapping to data-driven fault isolation. This manual provides the precise voltage parameters, testing logic, and electrical maps needed to ensure your seeding equipment maintains peak accuracy during the critical planting window.
Core Diagnostic Capabilities & System Interrogation
This technical guide avoids heavy structural wrenching to focus exclusively on the implement's electronic, hydraulic, and operational logic:
- Pneumatic & Blockage Analytics: Verify the integrity of the air delivery system. Trace signals from the primary towers and secondary seed sensors to the cab monitor to isolate faulty blockage sensors or harness fatigue.
- Full Electrical Navigation: Access comprehensive schematic wiring diagrams for the 1830/1835 and H-Series frames. Trace communication signals from the ISO-bus connector to the individual row-unit controllers and downforce actuators with pinpoint accuracy.
- DTC Interpretation & Logic: Stop guessing at monitor warnings. The manual translates every Diagnostic Trouble Code (DTC), detailing the specific triggering conditions and the sequential multimeter tests required to verify the circuit.
- Active Downforce & Fold Logic: Evaluate the performance of the hydraulic downforce and wing-leveling systems. Execute guided pressure tests for the rock-trip circuits and wing-fold hydraulics without removing major components.
- Precision Calibration Protocols: Ensure accurate seed population and depth. Follow the specific setup routines for frame-height sensors, opener downforce transducers, and section control actuators.
TM168219 Publication Profile
| Feature | Technical Specification |
|---|---|
| Supported Models | JD 1830, 1835 (61ft), H540F, H541, H550, H550F, H560F, H561 |
| Implement Type | Air Hoe Drills |
| Primary Document ID | TM168219 |
| Manual Discipline | Diagnosis, Operation, and System Testing |
| Functional Scope | Electrical, Hydraulic, and Seeding Logic |
| Format | Searchable Digital PDF Archive |
Technician Diagnostic FAQ
Q: Does this manual provide instructions for replacing opener bushings or frame pins?
A: No. Physical mechanical teardowns, hardware reassembly, and structural repairs are documented exclusively in the Repair Service Technical Manual (such as TM172519). This TM168219 document is engineered strictly for testing operational logic, electrical circuits, and hydraulic control systems.
Q: Will this help me troubleshoot a "Section Control" communication error?
Yes. The manual provides the specific CAN bus diagnostic routines and wiring pin-outs required to identify if the fault lies in the frame harness, the individual section solenoid, or the gateway controller.
Q: Can I use this file to calibrate the frame height sensors?
Absolutely. TM168219 contains the step-by-step operational tests and calibration procedures necessary to ensure the frame sensors are communicating accurately with the tractor's display for accurate depth control.
Command Your Seeding Accuracy
Unidentified electronic shorts or erratic hydraulic pressures can lead to uneven emergence and wasted seed. Obtain the John Deere 1830/H-Series Air Hoe Drill Diagnostic Manual TM168219 today and equip your service bay with the exact analytical intelligence required to maintain maximum uptime and seeding precision.
