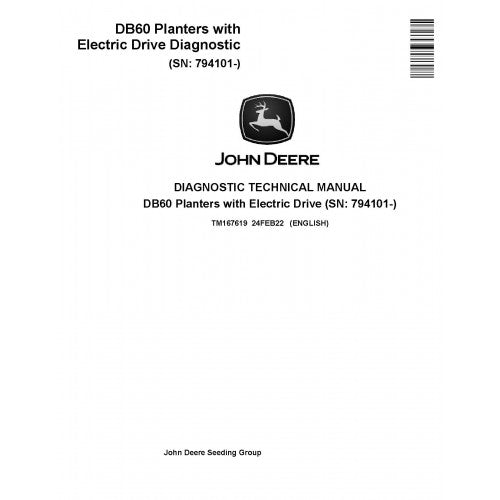

TM167619 John Deere DB60 Planters with Electric Drive Pdf Diagnostic Technical Manual

Hardware Restoration: John Deere 1785 Drawbar Planters

The 1785 series represents one of John Deere’s most versatile rigid and folding drawbar configurations, built to handle diverse row-crop applications. However, the constant ground-engagement of the row units and the torsional stress on the main frame eventually lead to pivot fatigue and mechanical timing wear. When the parallel arms develop play or the main drive transmission starts to slip, field-expedient repairs will compromise your seed spacing and depth uniformity. The John Deere 1785 Drawbar Planters Technical Service Manual (TM167519) is the factory-authorized "wrenches-on-iron" blueprint required to physically dismantle, align, and reconstruct your planting equipment.

Accessing this mechanical authority via manualsmarket.com ensures your maintenance shop has the exact engineering specs needed to perform full-scale implement overhauls. By following precise hardware extraction sequences and torque charts, you can restore your 1785 to factory-new performance levels, ensuring every seed is placed with absolute precision.

---

Blueprint Specifications & Manual Identity (TM167519)

System Identifier	Mechanical Specification Details
Applicable Model	John Deere 1785 Drawbar Planter
Frame Architecture	Rigid and Folding Drawbar Versions
Publication ID	TM167519
Manual Classification	Technical Service (Mechanical Repair & Teardown)
Documentation Type	Searchable Digital PDF

Field Mechanic Service FAQ

Are the specific torque values for the row-unit parallel arms included?
Absolutely. Maintaining the correct tension on the parallel arms is vital for consistent downforce and depth control. The manual provides mandatory torque charts and specific fastening patterns for all high-wear row-unit hardware to prevent over-tightening or premature bushing failure.

Does this manual help me troubleshoot the electronic seed monitor sensors?
No. Diagnostic trouble codes, sensor voltage parameters, and electrical schematics are located entirely within the Diagnostic, Operation, and Test manual. This TM167519 publication is strictly dedicated to heavy hardware teardowns, row-unit rebuilding, and physical mechanical alignment.

Can I use this guide to rebuild the hydraulic remote valves on my tractor?
This technical volume only covers the 1785 planter implement. Overhauling the tractor's hydraulic stack, engine, or transmission requires the specific service manual authored for your exact model of tractor.

Critical Mechanical Overhaul Sections

This technical publication focuses strictly on physical hardware intervention, providing actionable, step-by-step mechanical repair data for the machine's primary systems:

• Row-Unit & Parallel Arm Rebuilding: Ensure every row tracks perfectly. The manual outlines the heavy wrenching sequences to extract row units, replace worn bushings and pivot pins, and overhaul the seed meter housings and downforce spring assemblies.
• Main Drive Transmission & Gearboxes: Secure consistent seed spacing. Navigate the internal teardown of the drive gearboxes, replace worn sprockets and drive chains, and set the precise tensioning required for accurate meter timing.
• Frame & Drawbar Structural Integrity: Maintain the backbone of your planter. Access the rigging and extraction protocols for the main drawbar hinges, frame folding linkages, and large-scale wheel modules to ensure the implement pulls straight and remains level.
• Marker Arm & Hydraulic Hardware: Restore implement functionality. Follow precise steps for overhauling the row marker arms, replacing pivot bushings, and repacking the lift and fold hydraulic cylinders.
• Vacuum System & Meter Mounting: Secure the meter environment. Navigate the hardware removal and installation steps for the vacuum fan assembly, including the physical mounting of the delivery hoses across the 1785 frame.

Command Your Planting Logistics

A sloppy pivot pin or a misaligned row unit can lead to skipped seeds and lost yield potential. Acquire the John Deere 1785 Planter Repair Manual TM167519 today and arm your service bay with the exact mechanical data required to fully restore your precision seeding equipment.
