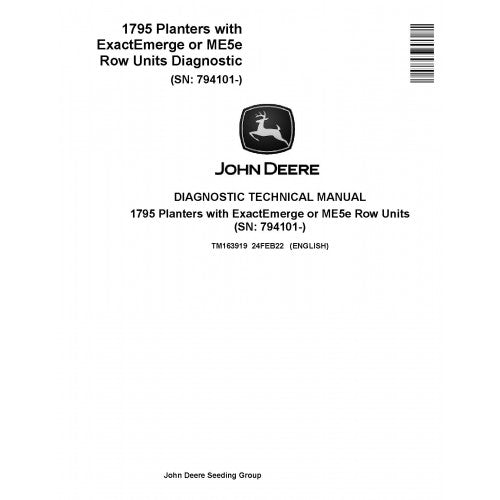

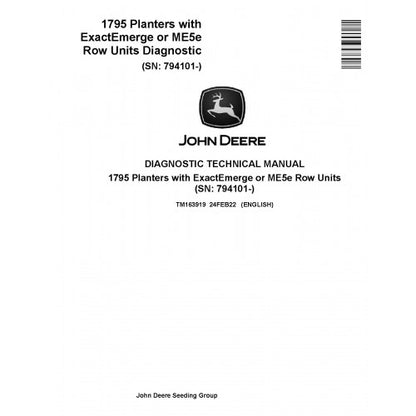

TM163919 John Deere 1795 Planters with ExactEmerge or ME5e Row Units Pdf Diagnostic Technical Manual
TM163919 John Deere 1795 Planters with ExactEmerge or ME5e Row Units Pdf Diagnostic Technical Manual
⭐⭐⭐⭐⭐ 50+ Reviews
Couldn't load pickup availability
Digital Logic & System Analytics: JD 1795 ExactEmerge & ME5e

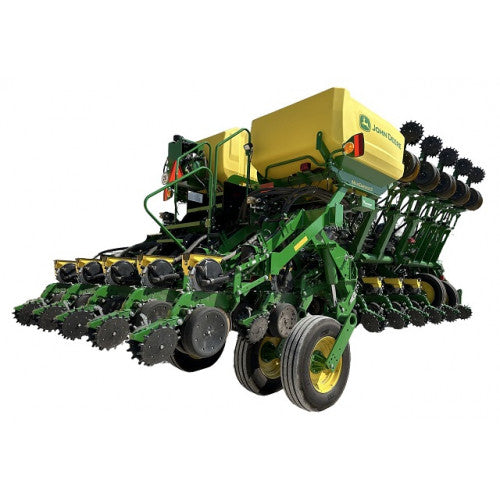

High-speed planting with the John Deere 1795—specifically those starting with Serial Number 794101—requires a flawless digital interface between the tractor’s power distribution and the electric row units. Whether your 1795 is equipped with ExactEmerge or ME5e technology, the implement relies on a high-speed CAN bus network to manage individual meter motors, brush belts, and active downforce transducers. When a row-unit controller (RUC) fails to sync or a motor shows a voltage drop, standard mechanical inspections cannot find the source. The John Deere 1795 Planters with ExactEmerge or ME5e Diagnostic Technical Manual (TM163919) is the vital analytical guide required to interrogate these complex electronic and fluid power systems.
By accessing this specialized diagnostic reference from manualsmarket.com, your maintenance team can transition from reactive part-swapping to data-driven fault isolation. This manual provides the precise voltage parameters, testing logic, and electrical maps needed to ensure your high-capacity seeding equipment maintains peak accuracy during the narrow planting window.
TM163919 Publication Profile
| Technical Category | Diagnostic Specification |
|---|---|
| Supported Model | John Deere 1795 Planter |
| Row Unit Technology | ExactEmerge or ME5e (Electric Drive) |
| Serial Number Break | 794101 and Higher |
| Manual Discipline | Diagnosis, Operation, and System Testing |
| Primary Document ID | TM163919 |
| File Format | Searchable Digital PDF Archive |
Core Diagnostic Capabilities & Interrogation
This technical guide bypasses structural wrenching to focus exclusively on the implement's electronic, hydraulic, and operational logic:
- Electric Drive & Meter Analytics: Isolate seeding failures with pinpoint accuracy. Access the diagnostic routines for the ExactEmerge motors and ME5e electric meter drives, including verification tests for the row-unit power modules and high-speed harnesses.
- Full Electrical Navigation: Access comprehensive schematic wiring diagrams for the 1795 frame. Trace communication signals from the ISO connector to the individual row-unit controllers and downforce actuators with pinpoint accuracy.
- DTC Interpretation & Logic: Stop guessing at monitor warnings. The manual translates every Diagnostic Trouble Code (DTC), detailing the specific triggering conditions and the sequential multimeter tests required to verify the circuit.
- Hydraulic Downforce & Fold Logic: Evaluate the performance of the active downforce and wing-fold systems. Execute guided pressure tests for the lift and fold hydraulics without removing major components.
- Precision Calibration Protocols: Ensure accurate seed population and spacing. Follow the specific setup routines for frame-height sensors, downforce transducers, and row-unit actuators.
Technician Diagnostic FAQ
Will this help me troubleshoot a "Row-Unit Controller" communication error?
Yes. The manual provides the specific CAN bus diagnostic routines and wiring pin-outs required to identify if the fault lies in the frame harness, the individual row unit controller, or the power distribution hub that feeds the electric drives.
Does this manual provide instructions for replacing the row-unit bushings or parallel arms?
No. Physical mechanical teardowns, hardware reassembly, and structural repairs are documented exclusively in the Repair Service Technical Manual. This TM163919 document is engineered strictly for testing operational logic, electrical circuits, and hydraulic control systems.
Can I use this file to calibrate the frame height sensors?
Absolutely. TM163919 contains the step-by-step operational tests and calibration procedures necessary to ensure the frame sensors are communicating accurately with the tractor's display for accurate depth control.
Command Your Seeding Accuracy
Unidentified electronic shorts or erratic hydraulic pressures can lead to uneven emergence and wasted seed. Obtain the John Deere 1795 ExactEmerge/ME5e Planter Diagnostic Manual TM163919 today and equip your service bay with the exact analytical intelligence required to maintain maximum uptime and seeding precision.
