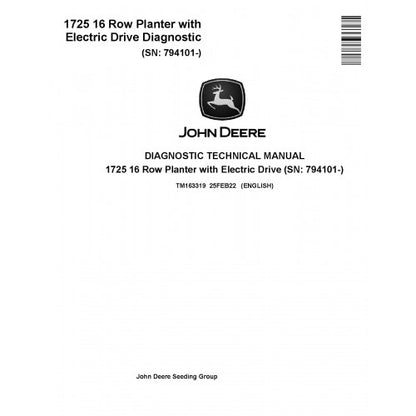

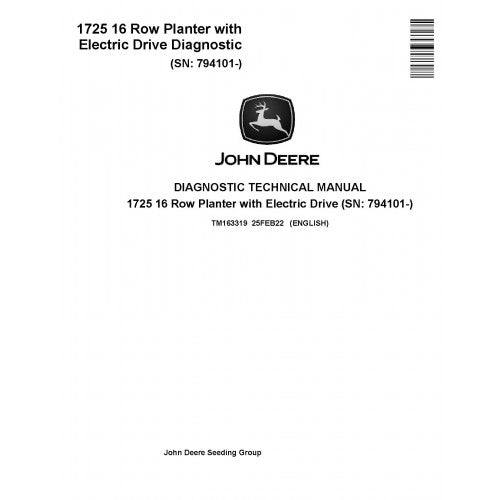

TM163319 John Deere 1725 16 Row Planters with Electric Drive Pdf Diagnosis and Tests Service Manual

Digital Interrogation & Logic Analytics: JD 1725 16-Row Electric Drive

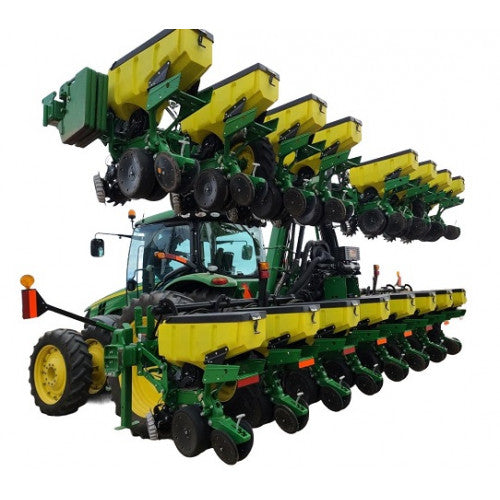

Operating a high-speed 16-row John Deere 1725 with Electric Drive (Serial Number 794101 and higher) requires more than mechanical precision; it demands a flawless digital handshake between the tractor and every individual row unit. These implements rely on a complex network of ExactEmerge motors, row-unit controllers (RUCs), and high-voltage power distribution to maintain population targets at high field speeds. When a motor fails to hit its commanded RPM or the ISO-bus communication lags, standard mechanical checks cannot find the source. The John Deere 1725 16-Row Planters Diagnosis and Tests Manual (TM163319) is the factory-authorized analytical reference required to interrogate the machine’s digital nervous system and high-voltage circuitry.

By accessing this specialized diagnostic guide from manualsmarket.com, your maintenance team can transition from reactive part-swapping to data-driven fault isolation. This manual provides the precise voltage parameters, testing logic, and electrical maps needed to ensure your high-capacity seeding equipment maintains peak accuracy during the narrow planting window.

---

Core Diagnostic Capabilities & Interrogation

This technical guide bypasses heavy structural wrenching to focus exclusively on the implement's electronic, hydraulic, and operational logic:

• Electric Drive & Motor Analytics: Isolate seeding failures with pinpoint accuracy. Access the diagnostic routines for the ExactEmerge motors and brush belts, including verification tests for the row-unit power modules and high-speed harnesses.
• Full Electrical Navigation: Access comprehensive schematic wiring diagrams for the 1725 16-row frame. Trace communication signals from the ISO connector to the individual row-unit controllers and downforce actuators with pinpoint accuracy.
• DTC Interpretation & Logic: Stop guessing at monitor warnings. The manual translates every Diagnostic Trouble Code (DTC), detailing the specific triggering conditions and the sequential multimeter tests required to verify the circuit.
• Hydraulic & Fold Logic: Evaluate the performance of the active downforce and wing-fold systems. Execute guided pressure tests for the lift and fold hydraulics without removing major components.
• Precision Calibration Protocols: Ensure accurate frame positioning and seeding depth. Follow the specific setup routines for frame-height sensors, downforce transducers, and vacuum sensors.

Technician Diagnostic FAQ

Will this manual help me troubleshoot an "Electric Meter Motor" communication error?
Yes. The manual provides the specific CAN bus diagnostic routines and wiring pin-outs required to identify if the fault lies in the frame harness, the individual row unit controller, or the power distribution hub that feeds the electric drives.

Does this manual provide instructions for replacing the row-unit bushings or parallel arms?
No. Physical mechanical teardowns, hardware reassembly, and structural repairs are documented exclusively in the Repair Service Technical Manual. This TM163319 document is engineered strictly for testing operational logic, electrical circuits, and hydraulic control systems.

Can I use this file to calibrate the frame height sensors?
Absolutely. TM163319 contains the step-by-step operational tests and calibration procedures necessary to ensure the frame sensors are communicating accurately with the tractor's display for accurate depth control.

TM163319 Publication Profile

Feature	Technical Specification
Supported Model	John Deere 1725 (16-Row Configuration)
Drive Technology	Electric Drive (ExactEmerge)
Serial Number Break	794101 and Higher
Manual Discipline	Diagnosis, Operation, and System Testing
Document Identification	TM163319
Format	Searchable Digital PDF Archive

Command Your Seeding Accuracy

Unidentified electronic shorts or erratic hydraulic pressures can lead to uneven emergence and wasted seed. Obtain the John Deere 1725 16-Row Electric Drive Diagnostic Manual TM163319 today and equip your service bay with the exact analytical intelligence required to maintain maximum uptime and seeding precision.
