TM161519 John Deere S250, S300 and S350 Mower-Conditioners Pdf Technical Service Manual

Hardware Architecture & Physical Restoration: JD S250, S300 & S350

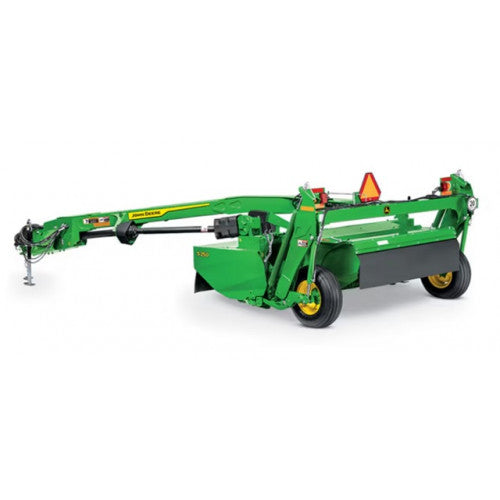

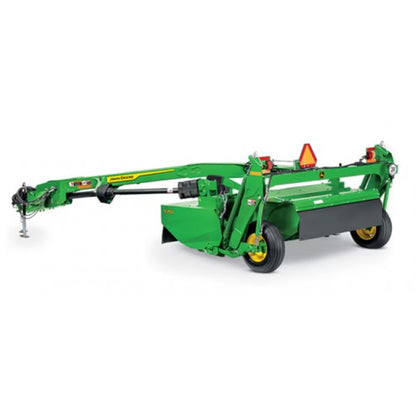

The high-speed efficiency of the John Deere S-Series mower-conditioners—including the S250, S300, and S350 models—is built upon a foundation of precise gear timing and rigid frame architecture. These side-pull machines are designed to endure the high-impact environment of forage harvesting, but the constant centrifugal forces on the cutterbar and the torsional stress on the tongue eventually lead to hardware fatigue. When a gear module begins to show internal play or the conditioner rolls lose their precision alignment, field-expedient fixes are not enough. The John Deere S250, S300, and S350 Mower-Conditioners Technical Service Manual (TM161519) provides the definitive factory blueprints required to physically dismantle, repair, and rebuild these critical machines.

By securing this heavy-duty mechanical reference from manualsmarket.com, your maintenance shop gains the exact factory tolerances, hardware extraction protocols, and torque sequences needed for professional-grade overhauls. This ensures your S-Series mower-conditioners return to the field with the structural rigidity and cutting precision required for high-capacity hay production.

---

Mechanical Teardown & Structural Overhaul

This technical publication focuses strictly on physical hardware intervention, providing actionable, step-by-step mechanical repair data for the machine's primary systems:

• Cutterbar & Gear-Case Timing: Maintain the machine's core. The manual provides the heavy wrenching sequences to extract individual gear modules, replace internal bearings, and set the precise gear-to-gear timing required for high-speed disc rotation.
• Hitch & Tongue Integrity: Restore structural maneuverability. Navigate the teardown of the main pivot points, the replacement of the side-pull hitch mounting hardware, and the structural inspection of the main drawbar and frame members.
• Conditioning System Restoration: Achieve perfect crop dry-down. Follow detailed instructions for extracting the conditioner rolls, replacing the heavy-duty seals and bearings, and adjusting the mechanical tensioning hardware.
• Disc Hub & Knife Drive Hardware: Secure the cutting interface. Follow systematic instructions for replacing shear hubs, protective "turtle shell" covers, and disc mounting hardware to prevent catastrophic failure under load.
• Primary Driveline & Gearbox Mounting: Secure power delivery from the PTO. Access the rigging and torque specs for the main input gearboxes, swivel hitch gear-cases, and the heavy-duty U-joints and drive shafts.

Field Service Wrenching FAQ

Are specific torque values provided for the cutterbar gear module bolts?
Absolutely. Given the extreme centrifugal force and vibration these machines endure, the manual provides mandatory torque charts and specific fastening patterns for all rotating hardware to ensure safe operational limits.

Does this manual cover the troubleshooting of the monitor or electrical wiring?
No. Diagnostic trouble codes, sensor logic, and electrical schematics are documented exclusively in the Operation and Tests manual. This TM161519 file is reserved for physical structural repair, hardware extraction, and mechanical rebuilding of the frame and drive systems.

Can I use this manual to rebuild the hydraulic pump on my tractor?
No. This technical volume is authored exclusively for the S250, S300, and S350 mower-conditioner implements. Working on the tractor's engine, transmission, or internal hydraulic systems requires the dedicated service manual for that specific tractor model.

Technical Blueprint Details: TM161519

System Identifier	Mechanical Documentation Scope
Applicable Models	John Deere S250, S300, S350
Equipment Category	Side-Pull Mower-Conditioners
Publication ID	TM161519
Manual Classification	Technical Service (Mechanical Repair & Teardown)
Document Format	Searchable Digital PDF Archive

Command Your Harvest Capacity

A compromised gear module or a fatigued hitch pivot can halt your hay harvest during critical weather windows. Acquire the John Deere S250/S300/S350 Mower-Conditioner Repair Manual TM161519 today and arm your service bay with the exact mechanical data required to fully restore your harvesting equipment.
