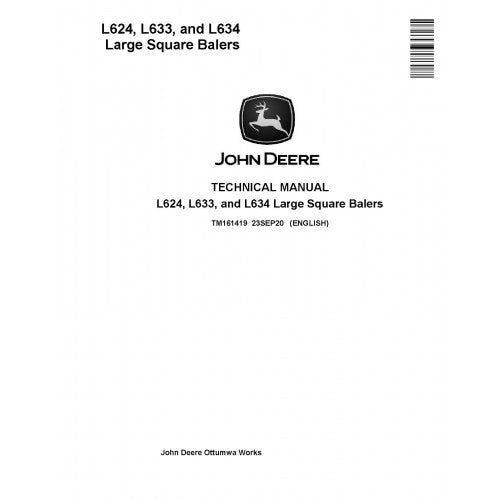

TM161419 John Deere L624, L633 and L634 Large Square Balers Pdf Technical Service Manual

Hardware Architecture & Physical Restoration: JD L624, L633 & L634

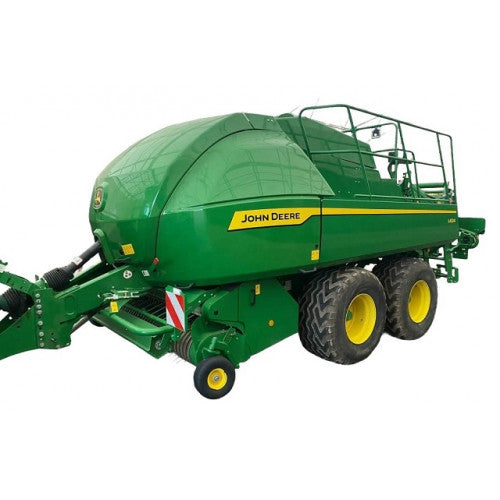

The reliability of a high-density baling operation depends on the precise mechanical synchronization of the plunger, stuffer, and knotter assemblies. The John Deere L-Series large square balers—comprising the L624, L633, and L634 models—are engineered for extreme compression forces and high-speed throughput. Over thousands of bales, the torsional stress on the main gearbox and the abrasive wear on the plunger rollers necessitate deep-level hardware intervention. When a knotter frame develops play or the plunger timing requires resetting after a shear-bolt event, standard field maintenance is insufficient. The John Deere L624, L633, and L634 Large Square Balers Technical Service Manual (TM161419) delivers the definitive factory blueprints required to physically dismantle, align, and reconstruct these heavy-duty hay machines.

By securing this factory-authored mechanical reference from manualsmarket.com, your maintenance shop gains the exact factory tolerances and hardware extraction protocols needed for professional-grade overhauls. This ensures your L-Series balers return to the field with the structural integrity required for dense, consistent bale production.

---

Field Service Wrenching FAQ

Are specific torque values provided for the plunger drive and flywheel bolts?
Absolutely. Given the massive inertial forces of the L-Series flywheel and plunger, the manual provides mandatory torque charts and specific fastening patterns for all driveline hardware to ensure safe operational limits and prevent catastrophic mechanical failure.

Does this manual cover the troubleshooting of the BaleSmart system or electronic sensors?
No. Diagnostic trouble codes, sensor voltage logic, and electrical circuit tracing are documented exclusively in the Operation and Tests manual. This TM161419 publication is dedicated strictly to heavy hardware teardowns, drivetrain overhauls, and physical component replacement.

Can I use this manual to rebuild the knotter bill-hooks?
Yes. This technical volume provides the specific mechanical teardown and reassembly sequences for the entire knotter stack, including the needle drive timing, bill-hook replacement, and knotter frame alignment specifications.

Mechanical Teardown & Structural Overhaul

This technical publication focuses strictly on physical hardware intervention, providing actionable, step-by-step mechanical repair data for the machine's primary systems:

• Plunger & Bale Chamber Restoration: Maintain high-density compression. The manual details the heavy wrenching sequences to extract the plunger assembly, replace worn rollers and wear plates, and align the chamber rails for perfect squareness.
• Main Driveline & Gearbox Extraction: Restore the machine's primary power transmission. Access the rigging and hardware sequences necessary to safely remove the massive main gearbox, overhaul the flywheel brake, and service the primary drive shafts.
• Knotter & Needle Assembly Mechanics: Secure the tying cycle. Follow systematic instructions for overhauling the knotter drive gears, replacing needle mounting hardware, and setting the precise mechanical timing between the plunger and the needles.
• Pickup & Stuffer Hardware: Ensure consistent crop flow. Navigate the internal teardown of the pickup reel, replace cam tracks and bearings, and overhaul the stuffer arm pivot pins and drive linkages.
• Chassis & Axle Hardware Service: Restore machine mobility. Follow precise steps for rebuilding the heavy-duty tandem axle assemblies, servicing the brake hardware, and inspecting the main frame for structural fatigue.

Technical Blueprint Details: TM161419

System Identifier	Mechanical Documentation Scope
Applicable Models	John Deere L624, L633, L634
Equipment Category	Large Square Balers
Publication ID	TM161419
Manual Classification	Technical Service (Mechanical Repair & Teardown)
Document Format	Searchable Digital PDF Archive

Command Your Baling Capacity

A misaligned plunger or a worn knotter drive can lead to broken bales and lost productivity during critical harvest windows. Acquire the John Deere L624/L633/L634 Baler Repair Manual TM161419 today and arm your service bay with the exact mechanical data required to fully restore your harvesting equipment.
