TM160919 John Deere RD30F, RD35F, RD40F and RD45F Draper Pdf Technical Service Manual

Hardware Architecture & Physical Restoration: JD RD-Series Draper Platforms

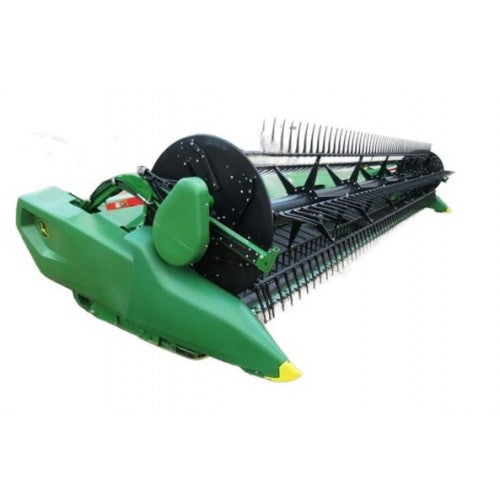

The high-capacity harvesting performance of the John Deere RD-Series—comprising the RD30F, RD35F, RD40F, and RD45F—is dependent on the absolute alignment of the draper belts and the structural integrity of the flexible cutterbar. These headers are engineered to follow ground contours at high speeds, putting constant torsional stress on the frame and high-frequency vibration on the knife drive components. When a side belt roller fails or the wobble box requires a complete internal overhaul, standard field adjustments are insufficient. The John Deere RD30F, RD35F, RD40F, and RD45F Draper Platforms Technical Service Manual (TM160919) is the factory-authorized "wrenches-on-iron" reference required to physically dismantle, repair, and rebuild these critical harvesting tools.

By securing this mechanical authority from manualsmarket.com, your service team gains access to the exact factory tolerances, torque sequences, and hardware extraction protocols used during original assembly. This ensures your RD-Series draper returns to the field with the mechanical precision required for uniform crop feeding and maximum grain savings.

---

Field Mechanic Service FAQ

Are specific torque values provided for the knife drive and wobble box mounting?
Absolutely. Given the high-frequency oscillation of the cutterbar, the manual provides mandatory torque charts and specific fastening patterns for all drive hardware to prevent component fatigue or catastrophic field failure.

Does this manual cover the troubleshooting of the combine's cab display or header height sensors?
No. Diagnostic trouble codes, sensor voltage logic, and electrical circuit tracing are documented exclusively in the Operation and Tests manual. This TM160919 file is reserved for physical structural repair, hardware extraction, and mechanical rebuilding of the belts, rollers, and drive gear-cases.

Can I use this manual to rebuild the draper drive motors?
This manual provides the instructions for the safe removal and installation of the hydraulic motors. However, the internal rebuilding of high-pressure hydraulic motors often requires a dedicated component manual or specialized bench testing equipment specified by the hydraulic manufacturer.

Mechanical Teardown & Structural Overhaul

This technical publication focuses strictly on physical hardware intervention, providing actionable, step-by-step mechanical repair data for the platform's primary systems:

• Draper Belt & Roller Restoration: Maintain perfect crop flow. The manual details the heavy wrenching sequences to extract rollers, replace worn bearings, and align the side and center belts for skip-free operation.
• Knife Drive & Wobble Box Mechanics: Secure clean cutting. Follow systematic instructions for overhauling the primary knife drive gear-case, replacing sickle sections, and adjusting the mechanical timing of the dual-drive systems.
• Reel Drive & Structural Integrity: Restore the feeding interface. Navigate the internal teardown of the reel lift and drive gearboxes, replace cam tracks and tines, and service the heavy-duty reel support arms.
• Frame & Flexible Cutterbar Architecture: Maintain ground-following accuracy. Follow precise steps for overhauling the poly skid shoes, replacing the flex-arm bushings, and inspecting the main frame for structural cracks or misalignment.
• Primary Driveline & Gearbox Mounting: Secure power delivery from the combine. Access the rigging and torque specs for the main input gear-cases, drive shafts, and the mechanical linkages that support the header-to-combine interface.

Technical Blueprint Details: TM160919

System Identifier	Mechanical Documentation Scope
Applicable Models	John Deere RD30F, RD35F, RD40F, RD45F
Equipment Category	Draper Platforms (Flex)
Publication ID	TM160919
Manual Classification	Technical Service (Mechanical Repair & Teardown)
Format	Searchable Digital PDF Archive

Command Your Harvest Capacity

A misaligned belt or a vibrating knife drive can halt your harvest during the most profitable windows. Acquire the John Deere RD-Series Draper Platform Repair Manual TM160919 today and arm your service bay with the exact mechanical data required to fully restore your harvesting equipment.
