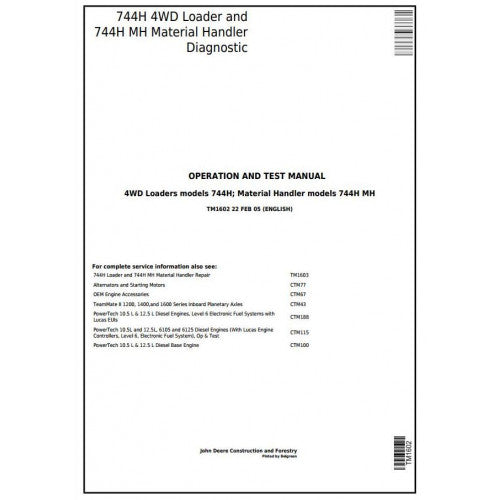

TM1602 John Deere 744H 4WD Loader and 744H MH Material Handler Pdf Diagnostic, Operation and Test Service Manual

Factory Diagnostic Standards: John Deere 744H & 744H MH

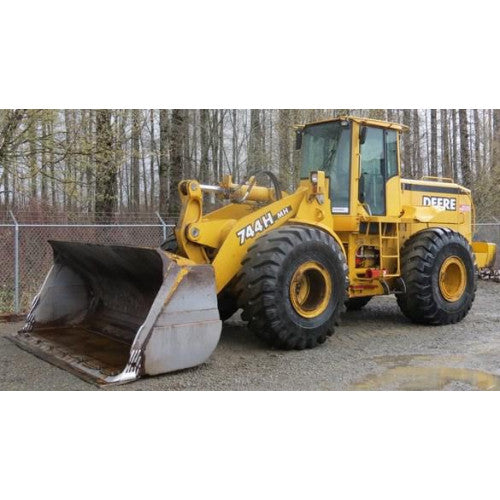

The John Deere 744H production loader and its specialized 744H MH Material Handler variant are driven by sophisticated electronic control modules and high-flow load-sense hydraulics. When these massive millyard and quarry machines suffer a communication breakdown across the CAN bus or experience a lag in the steering priority circuit, standard mechanical intuition falls short. Accurately diagnosing these heavy-duty platforms requires strict adherence to original equipment manufacturer (OEM) testing baselines. The John Deere 744H and 744H MH Diagnostic, Operation, and Test Manual (TM1602) provides the clinical flowcharts and electrical schematics necessary to evaluate machine logic with factory precision.

Available for immediate digital download at Manualsmarket.com, this archive empowers your diagnostic bay to resolve complex faults efficiently and restore your production-class equipment to optimal performance.

High-Capacity System Diagnostic Coverage

This technical publication equips your technicians with the exact testing pathways required to isolate failures without unnecessary component replacement on these heavy-duty chassis.

• Material Handler Electronics: Specialized testing protocols for the MH version's unique elevated cab controls, specialized grapple logic, and extended boom sensors to ensure safe load handling.
• Electrical Network Schematics: Navigate voltage irregularities and ground shorts using comprehensive wiring diagrams engineered specifically for the heavy-duty 744H chassis and cab harnesses.
• DTC (Diagnostic Trouble Code) Logic: Decipher active dashboard alerts with the complete factory fault code index. Each code includes exact trigger parameters and a step-by-step resolution path.
• Hydraulic Flow Verification: Utilize OEM-specified test ports to benchmark the high-capacity implement pump output, evaluate steering pressures, and diagnose sluggish load cycles.
• Powertrain Sensor Calibration: Verify data exchange between the transmission controller and the shifting solenoids to prevent erratic power delivery under massive material payloads.

Critical Testing Specifications & Benchmarks

Rather than relying on generic troubleshooting theories, the TM1602 technical document equips master mechanics with the definitive numerical data required for professional evaluation. It contains the specified ohm resistance values for the transmission solenoids, expected voltage inputs at primary machine controllers, and the exact standby pressure metrics for the heavy-duty steering and implement pumps. By measuring your 744H or 744H MH against these original factory baselines, your shop can isolate faulty sensors or fluid restrictions with pinpoint accuracy, avoiding the high cost of unnecessary parts swapping on production-class equipment.

Frequently Asked Diagnostic Questions

Does this document cover the mechanical teardown of the 744H drive axles?

No. The TM1602 is strictly authored for testing system logic, tracing electrical faults, and reading fluid pressures. For hardware disassembly and heavy mechanical rebuilding, you must reference the companion Service Repair Technical Manual.

Can I use these flowcharts to fix a slow grapple response on the MH version?

Yes. The manual outlines the specific pressure checks, test port locations, and diagnostic steps required to determine if the sluggish attachment issue is a pump flow discrepancy, a cylinder internal leak, or a faulty control valve.

Will this guide show me how to completely rebuild the engine internals?

While this document includes chassis-to-engine sensor integration and electrical testing limits, the internal mechanical rebuilding of the engine block requires the specific Component Technical Manual (CTM).

Is the fault code index searchable on a shop computer?

Absolutely. The digital PDF format is fully indexed and searchable, allowing your technicians to input the specific DTC from the loader's dash directly into the search bar for instant access to the testing sequence.

Equip Your Shop with the Official Data

Don't let complex electronic issues sideline your heavy material handlers. Secure the John Deere 744H, 744H MH Diagnostic Manual TM1602 today and bring your electrical and hydraulic troubleshooting up to uncompromising factory standards.
