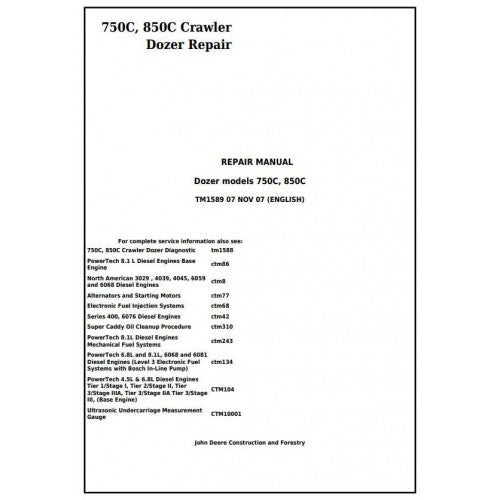

TM1589 John Deere 750C, 850C Crawler Dozer Pdf Repair Service Technical Manual

John Deere 750C & 850C Crawler Dozer Mechanical Repair Manual (TM1589)

The John Deere 750C and 850C are legendary for bringing dual-path hydrostatic power to the mid-size dozer market. These C-Series machines are built for longevity, but years of high-production earthmoving eventually require significant mechanical attention. The John Deere 750C/850C Repair Manual (TM1589) is the specialized industrial guide designed to facilitate those deep-level repairs. This manual moves past basic maintenance to provide the heavy-duty teardown and re-assembly blueprints required to keep these profitable assets in the field.

Whether you are managing a fleet of high-hour 850C dozers or restoring a 750C for site preparation work, TM1589 is your technical authority. It addresses the physical realities of "heavy iron" repair: handling massive final drives, splitting weathered track chains, and pulling the entire hydrostatic pump stack. By following the factory-specified tolerances and torque sequences, you ensure that every repair meets the original engineering standards, preventing the secondary failures that often follow guesswork.

Comprehensive Workshop Specifications

• Applicable Models: John Deere 750C and 850C Crawler Dozers
• Technical ID: TM1589
• Document Class: Service Repair Technical Manual (Mechanical)
• Utility: Component Removal, Inspection, and Overhaul
• Systems Covered: Hydrostatic Powertrain, Tracks, Hydraulics, and Frame
• Format: Digital PDF (Searchable and Zoomable)

Major Powertrain & Hydrostatic Teardown

The C-Series performance is anchored in its hydrostatic transmission. TM1589 provides the complete removal procedure for the hydrostatic pumps and motors. It details the steps for tilting the cab—a necessity for accessing the drivetrain—and provides the critical internal wear limits for the pump drive shafts and coupling splines. This manual ensures that when you perform a powertrain swap or a seal replacement, the alignment is factory-perfect to prevent premature vibration and wear.

Undercarriage & Ground-Contact Service

On a crawler dozer, the undercarriage represents the highest lifetime operating cost. This manual empowers you to manage that cost by providing expert track frame repair steps. It covers the removal of the equalizer bar, the replacement of the pivot shaft bushings, and the complete disassembly of the front idlers and recoil springs. Whether you are installing new track chains or resealing a track tensioner, TM1589 provides the safe lifting and pressing procedures required for these high-tension components.

Structural Hydraulics & Linkage

A loose blade makes precision grading impossible. This manual details the refurbishment of the 750C/850C blade linkage and C-frame. You will find exploded views and instructions for resealing the hoist, tilt, and angle cylinders, including the specific torque requirements for the heavy-duty gland nuts. By following these factory procedures, you can eliminate hydraulic drift and restore the "like-new" responsiveness of your machine’s blade controls.

Who Should Own This Manual?

• Heavy Equipment Mechanics: Performing major component removals and engine swaps.
• Undercarriage Specialists: Managing track turns and frame realignments.
• Independent Repair Shops: Needing the specific specs for John Deere C-Series hydrostatics.
• Owner-Operators: Who want to handle their own heavy maintenance to save on dealer labor.

Why Source your TM1589 from Manualsmarket.com?

At Manualsmarket.com, we know that C-Series machines are often the backbone of a small business. We provide the authentic John Deere 750C/850C Repair Manual (TM1589) to ensure you have the precise data needed for a successful rebuild. Our high-quality PDF format allows you to search for keywords instantly or print out high-resolution diagrams to take directly to the machine. Invest in the right information to protect your machine’s performance and your bottom line.

Note: For electrical troubleshooting, fault codes, and hydrostatic pressure testing, you will need the Operation & Test Manual (TM1588), also available in our John Deere Equipments Collection.

750C/850C Repair FAQ

Does this manual cover the engine internal components?

This manual covers engine removal and installation. For an internal block or head rebuild, you will need the specific PowerTech Engine CTM (Component Technical Manual).

Are the electrical wiring diagrams in this book?

No. Wiring schematics and electrical diagnostics are located in the separate Operation and Test Manual (TM1588).

Does it show how to remove the final drives?

Yes. It includes the full teardown and re-assembly steps for the final drive planetary gearsets and sprocket replacement.

Is the cab tilting procedure included?

Absolutely. The manual details the safe method for tilting the cab to access the transmission and hydraulic systems.
