TM1588 John Deere 750C, 850C Crawler Dozer Pdf Diagnostic, Operation and Test Service Manual

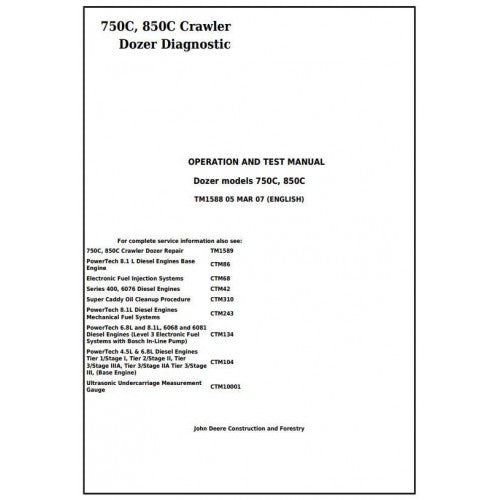

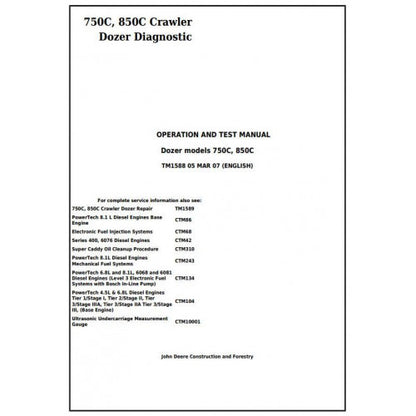

John Deere 750C & 850C Crawler Dozer Operation & Test Technical Manual (TM1588)

The John Deere 750C and 850C marked a turning point in dozer technology, merging heavy iron reliability with precise computerized control. While the mechanical components are built to last, the electronic "nervous system"—comprising the Transmission Control Unit (TCU), speed sensors, and displacement solenoids—can be the source of complex failures. When a C-Series dozer refuses to steer, locks into neutral, or displays a cryptic error code, mechanical tools alone cannot solve the problem. The John Deere 750C/850C Operation and Test Manual (TM1588) is the essential diagnostic toolkit that translates these electronic symptoms into actionable repair steps.

Unlike a standard repair manual that focuses on physical disassembly, TM1588 explains why a component is failing to operate. It is designed to prevent the costly and inefficient "parts swapping" method of repair. By guiding technicians through logic trees, voltage checks, and hydraulic pressure tests, this manual empowers you to identify the root cause of a breakdown—whether it is a faulty controller or a simple wiring short—before ordering a single replacement part.

TM1588: The Electronic Troubleshooting Authority

• Target Machines: John Deere 750C, 850C Crawler Dozers
• Manual ID: TM1588
• Manual Type: Operation & Test (Diagnostic Focus)
• Primary Utility: Fault Isolation, System Calibration, Circuit Tracing
• Key Systems: Hydrostatic Drive Logic, Electrical Architecture, Hydraulic Performance
• Format: Digital PDF (Searchable, Printable)

Deciphering the Control Logic: Codes & Calibration

The most frequent service calls for the 750C/850C involve the dual-path hydrostatic drive losing synchronization or drifting. TM1588 provides the critical Calibration Procedures necessary to resolve these issues. It details the specific keypad sequences required to access "Technician Mode" and re-teach the TCU the neutral and maximum speed positions for the pumps. Furthermore, the manual contains a comprehensive Diagnostic Trouble Code (DTC) Library. Instead of guessing at the meaning of a code like "F341," the manual defines the fault and provides a step-by-step electrical test to verify the specific sensor circuit involved.

Mapping the Electrical System: Wiring Schematics

Electrical troubleshooting on a C-Series dozer can be incredibly difficult without accurate documentation. This manual delivers high-fidelity, color-coded wiring diagrams that map every harness on the machine. Technicians can trace the path of the 5-volt reference signal from the ECU to the throttle potentiometer or follow CAN-bus lines between controllers with ease. The included Connector End Views clearly indicate which pin to probe with a multimeter, significantly reducing the risk of accidental shorts during testing.

Verifying Hydraulic Performance: Flow & Pressure

Determining whether a problem is electronic or hydraulic is a key step in diagnostics. TM1588 answers this question through the Operational Checkout section. This guide lists the exact test ports and target PSI values for charge pressure, drive pressure, and implement relief settings. It allows you to isolate a mechanical failure, such as a worn pump group, from an electronic failure, like a bad displacement solenoid, by verifying if the hydraulic system meets factory specifications under load.

Who Needs This Diagnostic Manual?

• Field Technicians: Requiring immediate access to code definitions to get a "down" machine moving again.
• Shop Foremen: Needing to verify a diagnosis before authorizing expensive component replacements.
• Independent Mechanics: Who require dealer-level access to the machine's calibration menus.
• Equipment Refurbishers: Who are rewiring older machines and need accurate schematics.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we specialize in providing the technical intelligence that keeps legacy equipment profitable. The John Deere 750C/850C Diagnostic Manual (TM1588) is the authentic factory resource, fully searchable and zoomable. Generic manuals often lack the specific voltage values or calibration steps required for C-Series hydrostatics. Download the precise data you need to fix the machine correctly the first time.

Note: If you need to physically remove the engine, rebuild the track frames, or replace the final drives, you will need the Mechanical Repair Manual (TM1589), also available in our John Deere Equipments Collection.

Common Diagnostic Questions (FAQ)

Will this manual help me fix a tracking issue?

Yes. Tracking issues are often related to calibration or sensor drift. TM1588 guides you through the hydrostatic calibration process to re-synchronize the tracks.

Does it cover engine diagnostics?

Yes, it covers the engine sensors, wiring, and fault codes as they relate to the machine's operation, though internal engine repair is covered in the separate CTM.

Where do I plug in my pressure gauges?

The manual includes detailed photos and diagrams showing the exact location of all hydraulic test ports on the 750C and 850C for accurate testing.

Can I trace a short in the cab harness?

Absolutely. The electrical schematics show every wire, splice, and ground point in the cab, making it straightforward to locate shorts or open circuits.
