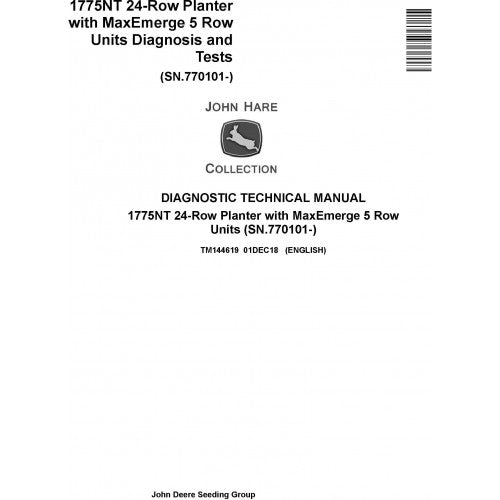

TM144619 John Deere 1775NT 24-Row Planter Pdf Diagnostic Technical Manual

Navigating the Data Stream of the 24-Row MaxEmerge 5

Planting with a 24-row John Deere 1775NT equipped with MaxEmerge 5 row units means managing an incredible volume of digital information. Every single second, the implement sends thousands of data points regarding vacuum pressure, seed singulation, and active downforce directly to the tractor's cab display. This dense ISOBUS network is the lifeblood of your planting accuracy. However, years of field vibration and exposure to the elements will eventually compromise sensor harnesses and CAN bus connections. When a row drops offline or the electro-hydraulic fold sequence stops responding, grabbing a wrench simply won't fix a software logic break. The John Deere 1775NT 24-Row Planter with MaxEmerge 5 Row Units Diagnosis and Tests Manual (TM144619) delivers the exact digital roadmaps, multimeter voltage limits, and software testing protocols needed to isolate communication failures and recalibrate drifting sensors without second-guessing.

Who Should Keep This PDF Handy?

Working on the sophisticated circuitry of a massive 24-row folding planter without the original engineering voltage parameters is a massive operational risk. This diagnostic manual is an absolute requirement for:

• Ag Fleet Maintenance Managers: Standardize your electrical troubleshooting protocols. Guarantee that all multimeter probing across your wide-span planters adheres strictly to John Deere's internal electrical resistance and voltage limits.
• Mobile Service Specialists: Arrive at the farm fully prepared with the precise hydraulic flow metrics and electrical pin-outs necessary to diagnose an unresponsive central fold valve block on your very first field visit.
• Precision Agriculture Technicians: Rapidly decipher intricate SeedStar alert codes and map your troubleshooting route directly to the faulty frame sensor or harness connector, maximizing uptime during the critical planting season.

Frequently Asked Diagnostic Questions

Are the SeedStar DTC logic charts and electrical wiring schematics located in this specific manual?
Yes. Adhering to rigorous manufacturer guidelines, in only John Deere manuals, the Diagnostic, Operation, and Test manual serves as the exclusive source for Schematic Wiring Diagrams, exhaustive Diagnostic Trouble Codes (DTCs), and their related electrical testing logic. This TM144619 file holds the precise electronic mapping for your 24-row MaxEmerge 5 setup.

Will this TM144619 document show me how to physically rebuild the row unit downforce linkages or double-disk openers?
No. The Service Repair Technical Manual handles information purely on how to repair a machine mechanically and physically tear it down. This diagnostic publication is strictly focused on electrical voltage testing, CAN bus wire tracking, and software sequence analysis.

Can I use this manual to troubleshoot the diesel engine on my towing tractor?
No. As a drawn agricultural implement, the 1775NT relies entirely on the towing tractor for mobility, PTO, and hydraulic fluid power; it possesses no internal engine. Furthermore, in John Deere manuals, they don't cover engine service and repair; they just cover some basic information. A dedicated base engine Component Technical Manual is mandated for the tractor's internal combustion service.

Is this digital file easy to read on a mobile device while I am tracking a wiring harness in the dirt?
Absolutely. Delivered as a highly compatible, fully searchable digital PDF format, you can instantly open this file on your smartphone, tablet, or rugged shop laptop for immediate reference right at the planter frame.

Technical Systems Analyzed

This technical service publication purposely excludes heavy iron teardowns to completely focus on the implement's intelligent circuitry, sequence software, and fluid dynamics:

• Electrical Network Blueprints: Exhaustive wiring schematics detailing the complex harness routing across the 24-row folding toolbar, tractor-to-implement ISO connections, and individual sensor pin-outs to locate ground faults efficiently.
• DTC Logic and Code Resolution: Complete lookup tables covering every Diagnostic Trouble Code (DTC) generated by the SeedStar control modules. These charts provide methodical isolation procedures to accurately pinpoint faulty sensors and network communication breaks.
• Sensor Target Calibration: Manufacturer-mandated procedures for calibrating vacuum pressure transducers, testing optical seed tube sensors, and ensuring seamless communication with the Gen 4 display interface.
• Electro-Hydraulic Sequence Verification: Factory testing routines for evaluating the primary hydraulic valve blocks. Provides exact pressure gauge specifications for the implement's folding and unfolding circuits.

TM144619 Machine Specifications Matrix

Manual Title	John Deere 1775NT 24-Row Planter with MaxEmerge 5 Row Units Diagnosis and Tests Manual
Manual Number	TM144619
Equipment Type	24-Row Narrow Transport Planter / MaxEmerge 5 Row Units
Manual Type	Diagnostic, Operation and Test Technical Manual
Models Covered	John Deere 1775NT (24-Row Configuration with MaxEmerge 5)
Key Systems Covered	CAN Bus Schematics, Fold Sequence Logic, SeedStar Sensor Diagnostics, Electro-Hydraulic Valves
File Format	Searchable Digital PDF
Language	English
Delivery Method	Instant Download After Payment

Secure Your Digital Troubleshooting Guide
