TM14351X19 John Deere 1050K PL Pipelayer Ready Crawler Dozer Pdf Operation and Test Technical Manual

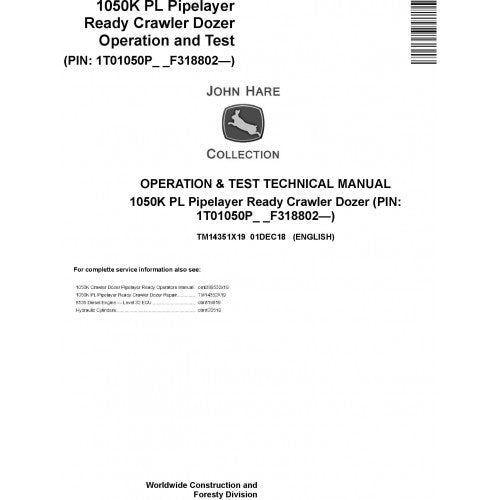

John Deere 1050K PL (Pipelayer Ready) Operation & Test Technical Manual (TM14351X19)

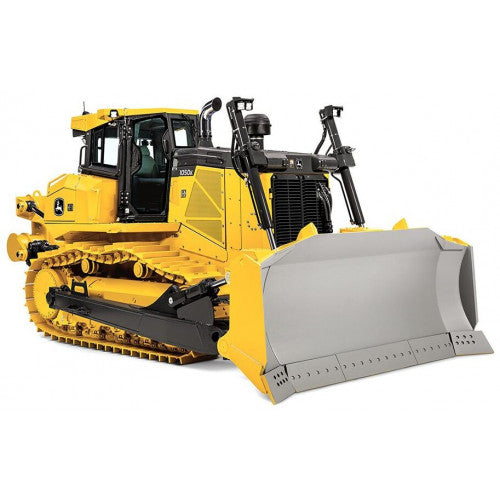

The John Deere 1050K PL (Pipelayer Ready) is a specialized beast. Designed to serve as the base for massive sideboom attachments, this machine operates in a high-stakes environment where precision is mandatory. When a 1050K PL refuses to track straight, locks out its hydraulics, or displays a "Stop Engine" warning on the pipeline right-of-way, mechanical tools are useless. You need the John Deere 1050K PL Operation and Test Manual (TM14351X19). This is the definitive "digital roadmap" for diagnosing the complex electronic and hydraulic systems of units with Serial Numbers F318802 and higher.

While the Repair Manual handles the heavy iron, this document handles the "nervous system." It bridges the gap between a vague symptom—like a sluggish response or an overheating warning—and the specific failed sensor or wire. TM14351X19 provides the authentic factory logic trees, electrical schematics, and calibration protocols necessary to keep this critical asset moving pipe. It allows technicians to troubleshoot the base machine's interface with pipelayer kits, ensuring seamless operation between the tractor and the attachment.

TM14351X19 Diagnostic Profile

• Target Machine: John Deere 1050K PL (Pipelayer Ready)
• Serial Coverage: F318802 and up
• Manual ID: TM14351X19
• Manual Type: Operation & Test (Diagnostic Focus)
• Core Function: Code Interpretation, Circuit Tracing, System Verification
• Key Systems: Hydrostatic Logic, PL Interface Electronics, Engine Control
• Format: Digital PDF (Searchable, Zoomable)

Mastering the "PL-Ready" Electronics

The 1050K PL is wired differently than a standard dozer to accommodate sideboom integration. This manual provides high-fidelity, color-coded wiring diagrams that map the specific harnesses used in the F318802+ series. You can trace the power distribution from the main fuse panel to the pipelayer interface connectors, ensuring that the attachment is receiving the correct signals. The manual includes Connector End Views and pin-out charts, allowing you to use a multimeter to isolate shorts or open circuits in the complex cab and chassis wiring.

Hydrostatic Calibration & Logic

Pipeline work requires inch-perfect maneuverability. If your 1050K PL drifts or feels jerky, it likely requires electronic tuning. TM14351X19 details the hydrostatic calibration procedures required to synchronize the dual-path drive pumps. It guides you through the onboard monitor menus to "zero" the system, compensating for mechanical wear and restoring the smooth, predictable control that operators demand. Additionally, the complete Diagnostic Trouble Code (DTC) library translates cryptic error codes into step-by-step testing sequences.

Hydraulic Verification & Pressure Testing

Is the issue a bad pump or a bad signal? This manual answers that question with the Operational Checkout. It lists the exact hydraulic test ports and target PSI values for the charge pumps, drive loops, and the pipelayer-ready hydraulic circuits. By connecting your gauges and following the factory test procedures, you can quantitatively verify the health of the hydraulic system under load, isolating mechanical failures from electronic glitches.

Who Needs This Diagnostic Guide?

• Pipeline Mechanics: Who need to diagnose "no-move" conditions immediately on the right-of-way.
• PL Equipment Managers: Who need to verify machine health before deploying assets to a new spread.
• Sideboom Integrators: Who need to understand the base machine's electronic signals for attachment installation.
• Independent Techs: Who need dealer-level access to calibration codes and schematics.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we specialize in the specific technical data required for high-value machinery. The John Deere 1050K PL Diagnostic Manual (TM14351X19) is the authentic factory resource, ensuring you have the correct voltage values and pin-outs for the F318802+ serial range. Don't risk a million-dollar project on generic data. Download the precise intelligence you need to keep your 1050K PL operational.

Note: If you need to physically remove the engine, rebuild the track frames, or replace the hydrostatic pumps, you will need the Mechanical Repair Manual (TM14352X19), also available in our John Deere Equipments Collection.

1050K PL Diagnostic FAQ

Does this manual show the pipelayer attachment codes?

It covers the base machine's interface codes. Specific codes internal to the sideboom attachment (e.g., LMI systems) are in the boom manufacturer's manual.

Will this help with a "Stop Engine" light?

Yes. It includes the logic trees to troubleshoot engine and chassis fault codes that trigger the "Stop Engine" warning.

Are the pressure test ports for the PL circuit shown?

Yes. The manual includes diagrams showing the location and specs for the PL-ready hydraulic ports.

Can I trace the joystick wiring?

Absolutely. The electrical schematics cover the complete path from the electro-hydraulic joystick to the controllers.
