TM14350X19 John Deere 1050K Crawler Dozer Pdf Repair Service Technical Manual

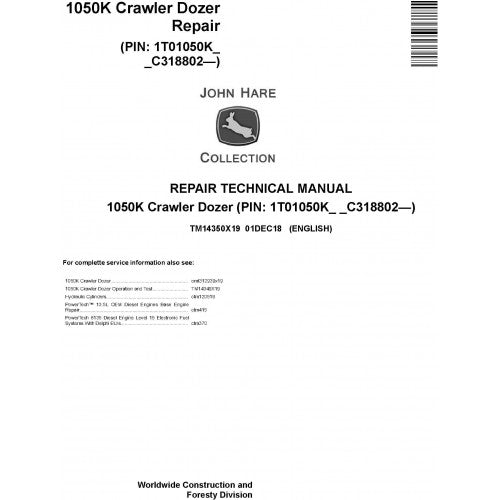

John Deere 1050K Crawler Dozer Repair Technical Manual (TM14350X19)

The John Deere 1050K represents the pinnacle of the manufacturer's production-class dozer lineup, engineered to move massive volumes of material in mining and heavy civil construction applications. For machines bearing Serial Numbers C318802 and higher, the mechanical complexity of the suspended undercarriage and high-output powertrain requires a dedicated service resource. The John Deere 1050K Repair Manual (TM14350X19) serves as the heavy-duty workshop companion for technicians tasked with keeping this 43-ton giant operational.

Unlike standard service booklets that cover routine fluid changes, this manual is a comprehensive Mechanical Overhaul Guide. It addresses the realities of repairing a machine that pushes limits daily: worn bogie pins, high-pressure hydrostatic leaks, and structural fatigue. TM14350X19 provides the factory-engineered disassembly sequences, lifting bracket locations, and assembly tolerances required to safely strip the 1050K down to its chassis and rebuild it to OEM specifications. It is the only document that ensures your heavy repairs—from the blade to the ripper—are executed with precision.

TM14350X19 Manual Specifications

• Target Machine: John Deere 1050K Crawler Dozer (Standard Configuration)
• Serial Number Coverage: C318802 and higher
• Manual ID: TM14350X19
• Manual Type: Service Repair (Mechanical & Structural)
• Primary Scope: Component Removal, Teardown, and Installation
• Format: Digital PDF (Fully Searchable & Printable)

Suspended Undercarriage & Bogie Service

The defining feature of the 1050K is its suspended double-bogie undercarriage, which isolates the operator from vibration but adds mechanical complexity. This manual details the specific procedures for servicing the bogie suspension system, including the removal of the hard bar and the replacement of the oscillation pivot bearings. It guides technicians through the heavy lifting required to remove the track roller frames and provides the critical torque specs for the segment bolts and idler caps. Correctly maintaining this suspension system is vital for preserving the machine's tractive effort and ride quality.

Powertrain & Hydrostatic Component Rebuild

Driving the 1050K is a dual-path hydrostatic transmission that allows for full-power turns. TM14350X19 covers the complete removal and installation of the hydrostatic pumps and motors. It outlines the necessary cab tilting procedures to access the drivetrain and provides the shaft alignment criteria to prevent coupling failure. Furthermore, the manual includes detailed instructions for disassembling the massive final drives, checking the planetary gearsets for pitting, and setting the bearing preload during reassembly.

Engine Removal & Structural Hydraulics

When the PowerTech 13.5L diesel requires a major overhaul, this manual is your roadmap. It details the engine removal process, identifying every harness disconnection point, fuel line interface, and mounting bolt location to pull the power unit safely. Additionally, it covers the mechanical repair of the implement hydraulics, offering exploded views for resealing the semi-U or full-U blade cylinders and the single-shank ripper. By following these factory procedures, you ensure that the machine retains its breakout force and lifting capacity.

Why Industry Professionals Choose Manualsmarket.com

At Manualsmarket.com, we recognize that the 1050K is a high-value asset where downtime is measured in tons not moved. We supply the authentic John Deere 1050K Repair Manual (TM14350X19) to ensure you have the specific data for the C318802+ series. Generic dozer manuals cannot account for the unique suspended undercarriage or the specific hydrostatic packaging of the 1050K. Download the verified factory intelligence you need to execute heavy repairs with confidence.

Note: This manual covers mechanical repair. For electrical troubleshooting, fault codes, and software calibration, you will need the Diagnostic Operation & Test Manual (TM14349X19).

1050K Repair FAQ

Does this manual cover the Pipelayer (PL) version?

No. This manual is for the standard 1050K Crawler Dozer. The Pipelayer-ready machines use a different manual (TM14352X19) due to frame differences.

Is the cab tilting procedure included?

Yes. The manual details the hydraulic cab tilt system and the mechanical locks required to safely work beneath the operator station.

Does it cover internal engine repair?

It covers engine removal and external component replacement. For internal block/head work (pistons, crank), you need the PowerTech 13.5L CTM.

Are the track chain split procedures included?

Yes. It includes the safe methods for splitting the heavy-duty track chain and pressing out the master pin.
