TM14349X19 John Deere 1050K Crawler Dozer Pdf Operation and Test Technical Manual

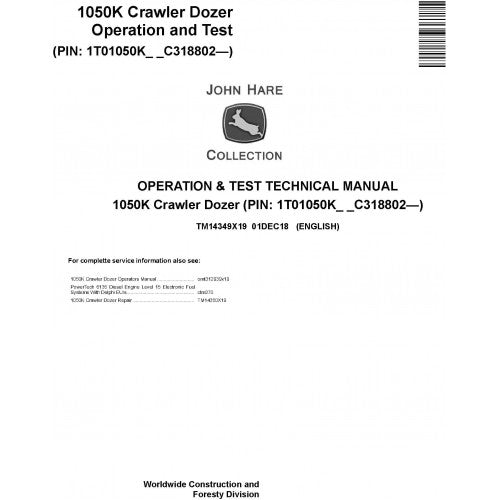

John Deere 1050K (SN C318802-) Operation & Test Technical Manual (TM14349X19)

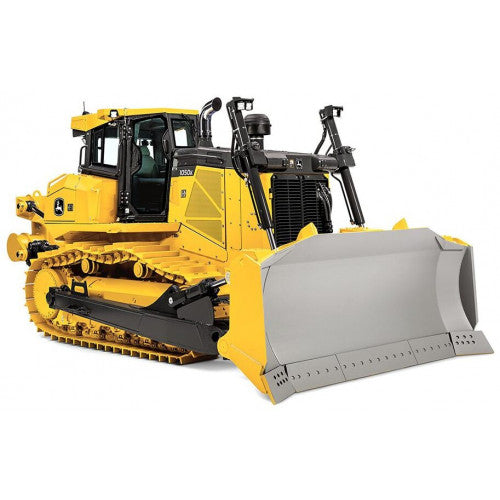

The John Deere 1050K (Serial Numbers C318802 and up) is a machine where brute force meets binary code. As the flagship of the Deere crawler lineup, this 43-ton earthmover relies on a sophisticated network of controllers to manage its suspended undercarriage and high-output hydrostatic drive. When a 1050K de-rates its engine power or the tracks fail to counter-rotate, the issue is rarely a broken gear—it is a signal interruption. The John Deere 1050K Operation and Test Manual (TM14349X19) is the essential diagnostic software in book form, designed to decipher the electronic language of this production-class giant.

While the Repair Manual handles the heavy wrenching, TM14349X19 handles the "thinking." It bridges the gap between a vague operator complaint—like "sluggish steering" or "high transmission temp"—and the specific failed component. This manual provides the authentic factory logic trees, color-coded wiring maps, and calibration protocols necessary to keep the 1050K operating at peak efficiency. It empowers technicians to troubleshoot the complex interaction between the 13.5L engine and the dual-path transmission without resorting to expensive trial-and-error parts swapping.

TM14349X19 Diagnostic Capabilities

• Target Machine: John Deere 1050K Crawler Dozer (Standard)
• Serial Coverage: C318802 and higher
• Manual ID: TM14349X19
• Manual Type: Operation & Test (Diagnostic Focus)
• Core Function: Code Interpretation, Circuit Tracing, System Verification
• Key Systems: Hydrostatic Logic, Eco-Mode Electronics, Engine Control
• Format: Digital PDF (Searchable, Zoomable)

Decoding the "Fly-by-Wire" Systems

The 1050K's performance is defined by its electronic management. TM14349X19 contains the complete Diagnostic Trouble Code (DTC) library for the C318802+ series. Instead of a generic definition, each code is paired with a specific testing sequence. You can verify if a "Fuel Rail Pressure" code is a bad sensor or a failing high-pressure pump using the manual's voltage tables. Furthermore, it details the logic behind the "Eco Mode" and auto-shutdown features, helping you distinguish between a malfunction and normal programmed behavior.

Precision Hydrostatic Tuning

For a machine of this size, smooth operation is critical. If your 1050K feels jerky or drifts during a push, it likely requires electronic calibration rather than mechanical repair. This manual details the hydrostatic calibration procedures required to synchronize the massive drive pumps. It guides you through the onboard monitor's "Service Mode" to re-teach the Transmission Control Unit (TCU) the neutral and maximum displacement points. This calibration is mandatory after any hydraulic service to restore the dozer's fine control.

Electrical Architecture & Schematics

Troubleshooting a 1050K wiring harness without a map is impossible. TM14349X19 delivers high-fidelity, system-specific wiring diagrams. You can trace the CAN-bus communication lines between the Engine Control Unit (ECU), the TCU, and the Standard Display Monitor (SDM). The manual includes Connector End Views and pin-out charts, allowing you to use a multimeter to isolate shorts, open circuits, or corrosion in the chassis wiring, ensuring that every command from the joystick reaches the valves.

Who Needs This Diagnostic Guide?

• Mining Technicians: Who need to resolve "down" machine codes immediately to keep production moving.
• Site Superintendents: Who need to verify machine health before committing it to a critical path task.
• Heavy Equipment Electricians: Who need accurate schematics to repair harness damage.
• Independent Shops: Who need dealer-level access to calibration codes and logic trees.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we understand that accurate data is the only way to fix modern heavy equipment. The John Deere 1050K Diagnostic Manual (TM14349X19) is the authentic factory resource, ensuring you have the correct voltage values and pin-outs for the C318802+ serial range. Don't risk a million-dollar asset on generic information. Download the precise intelligence you need to keep your 1050K pushing efficiently.

Note: If you need to physically remove the engine, rebuild the bogie suspension, or replace the hydrostatic pumps, you will need the Mechanical Repair Manual (TM14350X19), also available in our John Deere Equipments Collection.

1050K Diagnostic FAQ

Does this manual cover the Pipelayer (PL) diagnostics?

No. This manual is for the standard 1050K Crawler Dozer. The Pipelayer-ready machines use a different manual (TM14351X19) due to different wiring harnesses.

Will this help with a "Derated Power" warning?

Yes. It includes the logic trees to troubleshoot the engine and transmission codes that trigger the derate protection mode.

Are the pressure test ports shown?

Yes. The manual includes diagrams showing the exact location and target specs for all hydraulic test ports on the machine.

Can I trace the CAN-bus lines?

Absolutely. The electrical schematics clearly show the high and low CAN lines connecting all major controllers.
