TM14277X19 John Deere 850J II Crawler Dozer Pdf Operation and Test Technical Manual

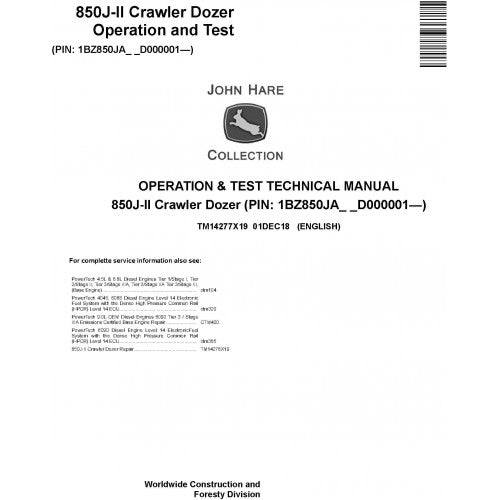

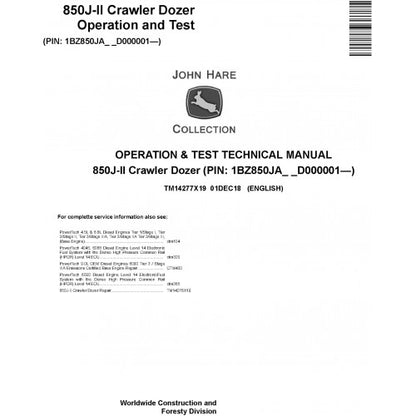

John Deere 850J-II (SN D000001-) Operation & Test Technical Manual (TM14277X19)

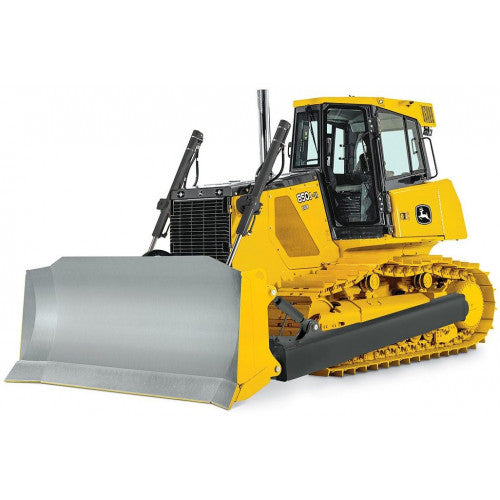

The "D-Series" production block of the John Deere 850J-II (Serial Numbers D000001 and upward) represents a peak in electro-hydraulic earthmoving technology. These dozers are incredibly responsive, but that agility is entirely governed by onboard computers, sensors, and intricate wiring harnesses. When a machine experiences "invisible downtime"—where the engine runs but the transmission is locked in neutral or the blade controls are unresponsive—you cannot fix it with a wrench. You need the John Deere 850J-II Operation and Test Manual (TM14277X19).

This specialized digital manual is your shop's diagnostic command center. It eliminates the costly "trial and error" approach of swapping expensive controllers and solenoids. By providing the exact factory testing protocols, voltage baselines, and calibration software sequences for this specific serial number range, TM14277X19 empowers your mechanics to find the precise point of failure and get the dozer back into the dirt faster.

What the TM14277X19 Manual Resolves

1. Translating D-Series Fault Codes

Modern John Deere monitors will throw a Diagnostic Trouble Code (DTC) the moment a parameter falls out of range. This manual contains the master index of every ECU and TCU code for the D000001+ series. More importantly, it provides the required troubleshooting logic trees. It tells you exactly which harness to probe, what resistance to look for, and how to verify if a sensor is truly dead or just suffering from a bad ground connection.

2. Navigating the CAN-Bus Network

Finding an electrical short on a 20-ton machine can take days without a map. This document supplies high-resolution, full-machine electrical wiring schematics and connector pin-outs. You can seamlessly trace the communication lines from the operator's electro-hydraulic joystick down through the chassis harness to the implement control valves.

3. Hydrostatic Synchronization & Calibration

If your 850J-II is crabbing (drifting to one side) during a heavy push, the dual-path hydrostatic pumps are out of sync. TM14277X19 reveals the specific monitor keypad sequences required to enter technician mode. It guides you step-by-step through the hydrostatic drive calibration, re-teaching the machine its neutral points and restoring perfect track synchronization.

4. Hydraulic Pressure Baseline Testing

Before pulling a transmission or a main pump, you must verify the hydraulic flow. The Operational Checkout section of this manual identifies every hydraulic test port on the dozer. It provides the exact PSI targets for the charge pressure, drive loops, and implement relief valves, allowing you to quickly isolate a mechanical pump failure from a stuck electronic bypass valve.

Maximize Your Uptime with Manualsmarket

At Manualsmarket.com, we know that using an outdated manual on a modern machine is a recipe for disaster. The wiring and software logic on the D-Series (SN D000001-) differs from earlier models. We guarantee the authenticity of the John Deere 850J-II Diagnostic Manual (TM14277X19) so your team has the exact, verifiable data they need. Secure this searchable PDF today and equip your technicians with the intelligence required to master John Deere's advanced operating systems.

Need to rebuild the undercarriage or physically extract the engine? Ensure you also grab the Mechanical Repair Manual (TM14278X19) from our John Deere Equipments Collection.

Diagnostic FAQ for the 850J-II (D000001+)

Will this guide help me fix a machine stuck in "Limp Mode"?

Absolutely. The manual details the specific sensor failures and engine parameters that trigger the machine's protective derate (limp) mode, providing the steps to test and clear the restriction.

Are the joystick controller testing procedures outlined here?

Yes. You will find the exact voltage outputs required to test the electro-hydraulic pilot controls, ensuring the joystick is sending the correct signal to the blade valves.

I need to replace the tracks. Is that in this book?

No. This is the Operation and Test manual (electronics and hydraulics). For physical track removal, undercarriage service, and engine teardowns, you need the Repair Technical Manual.

Does the manual show where the fuses and relays are located?

Yes, it features complete power distribution diagrams, illustrating the location of all fuse blocks, relays, and major ground straps on the D-Series chassis.
