TM14275X19 John Deere 750J II Crawler Dozer Pdf Operation and Test Technical Manual

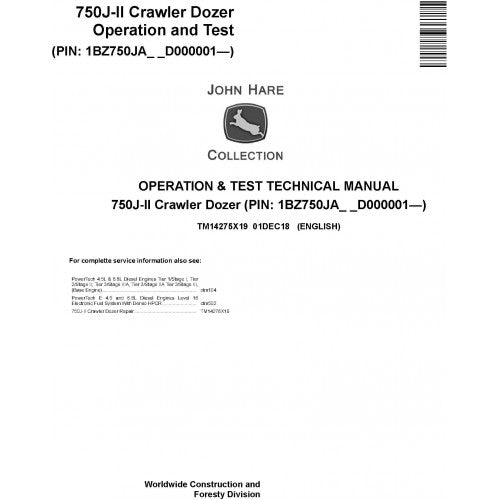

John Deere 750J-II Crawler Dozer (SN D000001-) Operation and Test Technical Manual (TM14275X19)

The John Deere 750J-II (specifically units from serial number D000001 and above) is renowned for its finesse in finish grading and brute strength in land clearing. However, this versatility is orchestrated by a highly sophisticated network of sensors, solenoids, and control modules. When a sensor drifts out of range or a CAN-bus wire rubs bare, the dozer doesn't just lose power—it can completely lock you out of operation. To conquer these electronic gremlins, you need the TM14275X19 Operation and Test Technical Manual.

This isn't a book about turning wrenches or tearing down engines; it is the ultimate digital roadmap for troubleshooting the "brain" of your D-Series 750J-II. It bridges the gap between a frustrating dashboard warning light and a successful, permanent repair, saving your operation from the crushing costs of "invisible downtime."

Document Snapshot

Covering the John Deere 750J-II Crawler Dozer (Serial Numbers D000001 and higher), this Operation & Test Manual (ID: TM14275X19) is an English-language, highly searchable digital PDF focused exclusively on Diagnostics, Electrical Wiring, and Hydraulic System Testing.

Core Diagnostic Systems & Coverage

Deciphering Diagnostic Trouble Codes (DTCs)

Stop guessing what the monitor is trying to tell you. This manual provides the complete glossary of error codes for the Engine Control Unit (ECU) and Transmission Control Unit (TCU). More importantly, it delivers the exact testing logic trees to prove whether a code is triggered by a failed component, a poor ground, or a wiring harness short. You will know exactly what to replace before you order parts.

Schematic Wiring Diagrams & Circuit Tracing

Finding an electrical fault on a 750J-II without a map is a massive waste of billable hours. This PDF equips you with high-resolution, full-color electrical schematics. You can easily trace the 5-volt reference signals from the controllers directly to the pilot valves, the electro-hydraulic joysticks, or the cab monitor. Pin-out charts ensure you are probing the correct connector every time.

Hydrostatic Synchronization & Pump Calibration

If your crawler dozer is drifting to one side or feels sluggish when counter-rotating, the dual-path hydrostatic pumps need re-teaching. TM14275X19 reveals the secure monitor keypad sequences required to run the hydrostatic drive calibration. This software routine re-establishes the neutral and maximum displacement baselines, ensuring the machine tracks perfectly straight and responds instantly to operator inputs.

Hydraulic Flow & Pressure Verification

Determine definitively if a problem is electrical or mechanical. The manual outlines the complete Operational Checkout procedures, giving you the exact test port locations and target PSI values for charge pressures, high-pressure drive loops, and implement circuits. Prove your hydraulic pump health with hard data.

---

Who Relies on This Diagnostic Guide?

• Mobile Field Techs: Diagnosing "no-start" or "limp mode" conditions in remote construction or forestry applications.
• Heavy Duty Electricians: Repairing complex CAN-bus communication issues and harness damage.
• Fleet Maintenance Directors: Empowering their in-house teams to reduce reliance on expensive dealer service calls.
• Independent Earthmoving Mechanics: Needing factory-level calibration access and logic trees.

Secure Your OEM Data with Manualsmarket.com

Using outdated or generic repair information on a D-Series John Deere is a recipe for fried controllers. At Manualsmarket.com, we guarantee the authenticity of the TM14275X19 Diagnostic PDF, ensuring you receive the exact voltage baselines and testing protocols tailored specifically to the SN D000001+ manufacturing block. Equip your shop with the right data to keep your iron moving.

Looking to rebuild the final drives, drop the belly pan, or extract the engine? Mechanical repairs are covered in the Service Repair Technical Manual (TM14276X19), which can be found in our John Deere Equipments Collection.

Common Questions About This Manual (FAQ)

Are structural repairs and engine teardowns included here?

No. Per John Deere publishing standards, this manual covers Schematic Wiring Diagrams, DTCs, and operational testing. Information on how to physically repair or rebuild the machine is located in the separate Service Repair Technical Manual.

Will this guide help me fix a machine that won't steer properly?

Yes. Steering and tracking issues on the 750J-II are often electronic. This manual provides the full hydrostatic calibration and tuning procedures to fix drift and synchronization faults.

Can I find the fuse block layout in this document?

Absolutely. Detailed power distribution diagrams are included, illustrating the exact locations of all fuses, relays, and main system grounds.

Are the electro-hydraulic joystick test parameters in here?

Yes, the manual details the specific voltage and resistance readings required to verify that the cab joysticks are sending the correct inputs to the valve bank.
