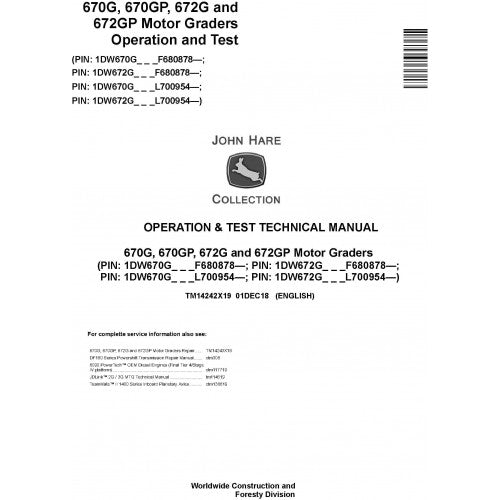

TM14242X19 John Deere 670G, 670GP, 672G, 672GP Motor Graders Pdf Operation and Test Technical Manual

Unlocking G-Series Intelligence: The TM14242X19 Diagnostic Authority

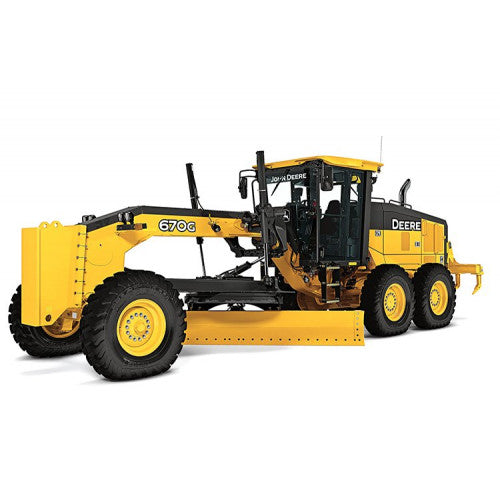

The John Deere 670G and 672G Motor Graders are precision instruments where advanced software manages heavy-duty earthmoving. For the specific production runs within the F680878- and L700954- serial ranges, resolving a performance issue requires a deep dive into the machine's mechatronic nervous system. The John Deere 670G-672GP Operation and Test Manual (TM14242X19) is the specialized technical authority for this digital architecture. It provides the analytical frameworks and factory-verified data needed to communicate with onboard controllers and troubleshoot faults that standard tools cannot reach.

For operators utilizing Grade Pro (GP) technology, this manual is essential for maintaining the high-accuracy automated moldboard and joystick functions. TM14242X19 delivers the exact calibration routines and diagnostic trees needed to keep the mechatronic valve banks and sensors in perfect sync. Whether you are analyzing a communication drop on the CAN-bus or verifying the hydrostatic speed-matching on an AWD 672G, this manual ensures you are working with the most current engineering profiles for this serial number range.

TM14242X19 System Coverage & Manual Specs

• Targeted Models: 670G, 670GP, 672G, 672GP (Grade Pro)
• Manual Classification: TM14242X19 (Operation and Test)
• Serial Number Precision: Engineered for F680878- and L700954-
• Mechatronic Depth: Exhaustive coverage of ECU logic and sensor networks
• Visual Technical Data: High-definition, multi-layered wiring and hydraulic flow schematics
• Navigation: Digital PDF optimized for rapid field-side keyword searches
• Language: English (Official Technical Standard)

The Diagnostic Audience for 670G/672G

• GP Systems Specialists: Technicians managing advanced automation and joystick mechatronics.
• Hydrostatic AWD Techs: Personnel diagnosing speed synchronization and front-wheel drive efficiency on 672G units.
• Mobile Field Engineers: Professional troubleshooters needing exact sensor pin-out data and voltage specs.
• Fleet Service Managers: Establishing health baselines using factory-standard operational checkout tests.
• Specialized JD Workshops: Seeking dealership-level diagnostic depth for the 670G/672G G-Series platform.

Technical Breakdown: G-Series Diagnostic Insights

Surgical DTC Fault Intelligence

Modern G-Series graders utilize a hierarchical fault code system that requires specific context for accurate resolution. This manual provides a Master Diagnostic Trouble Code (DTC) Index tailored specifically to the software architecture of the 670G and 672G. It decodes the "Condition of Fault" and the "Required Action" for every mechatronic error, allowing you to bypass the trial-and-error method and target the exact failing harness, sensor, or controller.

High-Fidelity AWD & Electrical Mapping

The 672G’s All-Wheel Drive system relies on absolute electronic coordination between steering angles and hydrostatic wheel motors. TM14242X19 includes high-resolution electrical and hydrostatic schematics that map these complex relationships. Every circuit, from the mechatronic joystick to the moldboard lift sensors, is presented in high definition, facilitating accurate voltage drop analysis and continuity testing in the field.

Operational Checkout & Dynamic Load Testing

Uptime is maximized through structured health verification. This manual outlines the factory-standard operational checkout procedure. By following the specific pressure testing points and comparing them to the expected flow profiles, you can identify wear in the main hydraulic pump or a shift-quality issue in the PowerShift transmission before it results in an expensive mid-job breakdown.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we understand that technical accuracy is the only way to safeguard your job site productivity. We provide authentic, serial-specific digital assets that match your machine's exact build date and mechatronic configuration. Our John Deere 670G/672G Diagnostic Manual is curated to provide the precise technical clarity that generic guides lack. Choose Manualsmarket.com for the expert data required to keep your G-Series grader performing at its peak.

670G/672G Diagnostic FAQ

Does this manual cover the mechatronic joysticks on the GP models?

Yes. It provides full diagnostic trees and calibration steps for the joystick controllers and mechatronic valve banks specific to Grade Pro units.

Are the 672G AWD speed-matching tests included?

Absolutely. The manual includes the hydrostatic flow and electrical sync tests required for the 672G and 672GP models.

Is this manual correct for serial range L700954?

Yes. This document is specifically engineered for the F680878- and L700954- serial ranges.

How is the manual delivered?

Your manual is delivered via an instant download link immediately after your purchase is confirmed, allowing you to begin your diagnostic work on the job site without delay.
