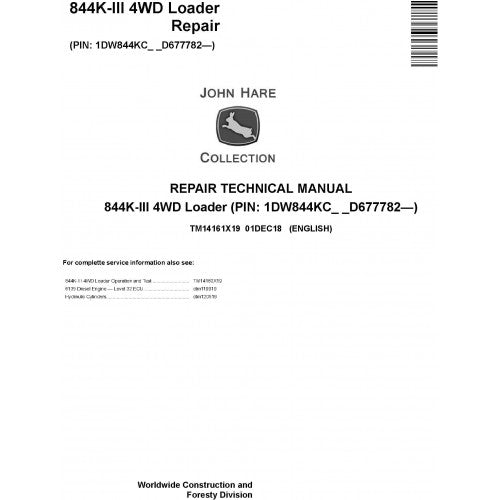

TM14161X19 John Deere 844K-III 4WD Loader Pdf Repair Service Technical Manual

John Deere 844K-III (SN. D677782-) 4WD Loader Repair Service Technical Manual (TM14161X19)

When dealing with the immense scale of quarry-class material handlers, structural integrity is paramount. The John Deere 844K-III (SN. D677782-) 4WD Loader Repair Service Technical Manual is the definitive mechanical blueprint required to overhaul this heavy-tonnage machine. By acquiring this TM14161X19 PDF download, your maintenance facility secures the authentic factory OEM manual specifically developed for the D677782 and subsequent serial ranges. Delivered as an instantly accessible, natively searchable PDF, this crucial publication provides the exact lifting geometries, massive fastener torque specs, and rigorous teardown procedures necessary to rebuild the heavy diesel power plant, reconstruct the transmission, and service the planetary axles, ensuring your 844K-III sustains peak breakout force in the harshest mining environments.

Essential Machine & Literature Parameters

Prior to initiating any structural teardown, confirm that your equipment aligns with the specific factory designations outlined below:

• Designated Machinery: John Deere 844K-III 4WD Loader (Production & Quarry Class)
• Serial Block Applicability: D677782 and upward
• Manufacturer Publication ID: TM14161X19
• Documentation Focus: Service Repair (Physical Hardware, Disassembly, Assembly, Rigging)
• Primary Component Coverage: 13.5L Engine, Axles, Differential, Transaxle, Loader Frame, Z-Bar Linkage
• File Delivery: Instant Digital PDF (Text-Indexed, Bookmark Navigation, Print-Ready)

---

Heavy Iron Reconstruction: Rebuilding the 844K-III

The 844K-III is a massive production asset built to load haul trucks and crushers continuously. Servicing components of this magnitude requires strict adherence to manufacturer rigging and clearance specifications to avoid catastrophic frame damage or technician injury.

13.5L Engine & Drivetrain Hoisting

Extracting the massive 13.5-liter diesel power plant from the rear chassis is a high-stakes mechanical operation. This manual outlines the exact center-of-gravity hoist points and minimum crane weight capacities mandated by John Deere engineering. Mechanics are provided with the precise, sequential unbolting steps for the heavy-duty engine mounts, cooling package isolation, and driveshaft decoupling, ensuring the powertrain is safely separated from the frame prior to internal gear teardowns.

Articulation Pivot & Oscillation Joint Restoration

The 844K-III relies on its massive center articulation joint to maneuver aggregate across the pit floor. When the frame develops excessive lateral play, this section guides your shop through the heavy rigging required to safely split the front and rear loader halves. It details the specialized pressing procedures needed to extract worn upper and lower pivot pins, alongside the exact bearing preload formulas required to reassemble the oscillation joint to factory safety tolerances.

Planetary Final Drives & Outboard Brakes

Transferring hundreds of horsepower to the ground places immense stress on the loader's axles. This guide contains the internal breakdowns for the massive front and rear differential housings and planetary hubs. Technicians will utilize the provided shim-selection mathematics to set the correct ring-gear backlash. Additionally, the document covers the exact friction-disc stacking sequences and wear-limit thresholds necessary to rebuild the heavy-duty wet-disc brake assemblies safely.

---

Who Requires This Production-Class Blueprint?

Because the 844K-III is the primary loading tool on most job sites, minimizing its repair timeline is critical for preserving mine profitability. This structural guide is optimized for:

• Quarry & Mine Maintenance Directors: Empowering on-site mechanics with the exact torque specs needed to swap major heavy-iron components without waiting for dealership availability.
• Heavy Machinery Rebuild Facilities: Sourcing the precise factory clearances to provide dealership-quality axle, transmission, and engine rebuilds for high-tonnage clients.
• Large-Scale Earthmoving Contractors: Guaranteeing that all structural frame repairs and boom linkage overhauls adhere to strict OEM safety and durability standards.

Critical Distinction: Structural Wrenching vs. Diagnostics

For efficient service bay management, personnel must deploy the correct literature. This TM14161X19 manual exclusively dictates physical wrenching, structural teardowns, and hardware reconstruction. It entirely omits electronic wiring schematics, CAN-bus network troubleshooting, and hydraulic pressure testing charts. If your loader is exhibiting sluggish hydraulics, active ECU error codes, or electrical shorts, you must procure the separate Diagnostic, Operation and Test Technical Manual.

Acquire the TM14161X19 PDF at Manualsmarket.com

Do not compromise the structural safety of your largest material handler by estimating pin clearances or engine rigging weights. At Manualsmarket.com, you can securely access the verified TM14161X19 PDF immediately. Supply your service bays with the exact engineering blueprints required to safely rebuild your John Deere 844K-III 4WD Loader.

---

844K-III Hardware Overhaul FAQ

Does this guide explain how to replace the massive bucket pivot pins?

Yes. The manual covers the complete physical disassembly of the Z-bar linkage, detailing the heavy-duty pressing equipment and sequential steps required to extract seized bucket and boom pins, and install new hardened bushings.

Are the torque specifications for the main axle mounting bolts provided?

Absolutely. The document features comprehensive torque-turn charts for all critical frame fasteners, specifically emphasizing the extreme-duty hardware used to secure the front and rear axles to the loader chassis.

Will this manual help me clear an engine fault code?

No. ECU fault code decryption, sensor testing, and electronic system diagnostics are strictly covered in the companion Diagnostic manual. This resource is dedicated solely to physical mechanical repair and reassembly.

How quickly can I locate the transmission internal teardown steps?

Because the PDF file is natively text-indexed and bookmarked, you can bypass flipping through thousands of pages. Simply use the "Ctrl+F" command, type "transmission disassembly," and instantly navigate to the correct internal gear layout and clutch pack instructions.
