TM14079X19 John Deere 770G, 770GP, 772G, 772GP Motor Graders Pdf Repair Service Technical Manual

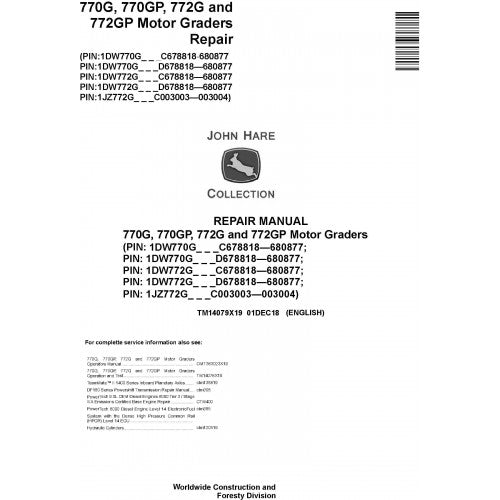

John Deere 770G, 770GP, 772G, 772GP Motor Grader Repair Service Technical Manual (TM14079X19)

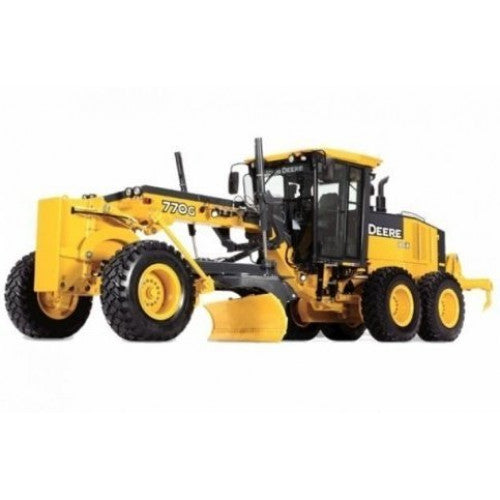

The John Deere 770G and 772G Motor Graders are engineered for high-production grading, but even the toughest G-Series iron eventually requires major mechanical attention. When the time comes to refresh a high-hour machine, the John Deere 770G-772GP Service Repair Technical Manual (TM14079X19) is your blueprint for remanufacturing performance. This document is not about clearing codes; it is the definitive guide to mechanical disassembly, component inspection, and factory-spec assembly.

Whether you are dealing with a 772G with a leaking front-wheel-drive hub or a 770GP with a worn circle drive, this manual provides the "exploded view" clarity needed to tear the machine down to its frame rails and build it back up. It is the essential resource for heavy technicians who need to know bearing preloads, cylinder gland nut torques, and gear lash tolerances. With TM14079X19, you aren't just swapping parts—you are restoring the mechanical integrity of the grader to its original factory standards.

TM14079X19 Repair Manual Specifications

• Models Covered: John Deere 770G, 770GP, 772G, 772GP
• Document Number: TM14079X19
• Document Class: Service Repair Technical Manual (Mechanical)
• Technical Focus: Component Removal, Disassembly, and Installation
• Critical Data: Torque Charts, Seal Depths, and Rebuild Clearances
• Special Coverage: 6WD Front Axle Mechanicals (772G/GP)
• Format: High-Resolution Searchable PDF
• Language: English

Heavy Component Rebuild & Service Procedures

6WD Front Axle & Hub Mechanics (772G/GP)

The 772G's Six-Wheel Drive system adds significant mechanical complexity to the front end. This manual is crucial for servicing the powered front axle hubs and hydrostatic motors. It details the precise procedure for removing the hub assembly, inspecting the planetary gears for stress fractures, and replacing the heavy-duty duo-cone seals. You will find step-by-step instructions for setting the wheel bearing end-play, a critical adjustment that prevents premature hub failure under heavy load.



Circle, Drawbar & Moldboard Refurbishment

Precision grading is impossible with a loose blade. The TM14079X19 provides the mechanical protocols to remove slop from the drawbar and circle. It covers the disassembly of the circle drive gearbox, allowing you to replace internal bearings and shafts rather than buying a new unit. Furthermore, it guides you through the replacement and shimming of the wear inserts between the circle and the drawbar, ensuring the moldboard rotates smoothly and holds a tight grade without chatter.



Engine & Transmission Removal

When a powertrain reaches the end of its lifecycle, this manual manages the heavy lifting. It provides the safe sequencing for separating the engine from the transmission and removing them from the chassis. While internal engine parts are covered in a separate CTM, this manual ensures you handle the external connections—cooling packages, drive shafts, and mounts—correctly. It also includes the internal repair of the PowerShift transmission, offering clutch pack stack-up heights and control valve body service procedures.



Target Audience for This Repair Manual

• Master Technicians: Responsible for deep mechanical repairs and powertrain rebuilding.
• Cylinder Shops: Needing specific seal kit installation diagrams and torque values.
• Construction Companies: Managing their own fleet overhaul programs to extend machine life.
• Remote Site Mechanics: Who need offline access to torque specs when internet access is unavailable.

Why Source from Manualsmarket.com?

At Manualsmarket.com, we specialize in the technical literature that keeps the construction industry moving. The John Deere 770G/772G Repair Manual we offer is the authentic, unadulterated service documentation used by dealerships. We understand that in a teardown, accuracy is everything—a single wrong torque spec can ruin a rebuild. By choosing our manuals, you are securing the professional-grade data required to confidently tackle the heaviest repairs in your workshop.

Visit the John Deere Equipments Collection to find the complete set of manuals for your G-Series fleet.

John Deere 770G-772G Repair FAQ

Does this manual cover the "Grade Pro" (GP) fingertip controls?

It covers the mechanical removal and installation of the armrest and control pods. However, the electronic diagnosis of the GP controls is in the separate Operation & Test manual.

I need to reseal the articulation cylinders. Is that in here?

Yes. The manual covers the disassembly and resealing of all hydraulic cylinders, including steering, articulation, and blade lift cylinders.

Does it include the torque specs for the wheel nuts and frame bolts?

Yes. A comprehensive torque specification chart for all major fasteners, including frame articulation pins and wheel lugs, is included.

Is the differential lock repair covered?

Yes. The manual details the disassembly and service of the rear axle differential and the differential lock mechanism.
