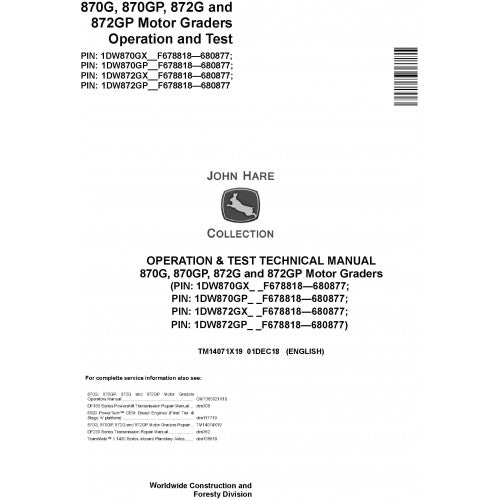

TM14071X19 John Deere 870G, 870GP, 872G, 872GP Motor Graders Pdf Operation and Test Technical Manual

John Deere 870G, 870GP, 872G, 872GP (SN. F678818—680877) Motor Grader Operation & Test Technical Manual (TM14071X19)

The John Deere 870G and 872G Motor Graders (within the specific Serial Number run of F678818 through 680877) represent a peak in mechatronic engineering. These machines don't just push dirt; they compute load, traction, and grade in milliseconds. However, when that computation fails—when a 6WD sensor drifts or a transmission solenoid lags—mechanical intuition hits a wall. The John Deere 870G-872GP Operation and Test Manual (TM14071X19) is the decoder ring for this complex electronic architecture. Unlike the mechanical repair manual, this document is strictly focused on System Diagnostics, Circuit Analysis, and Control Logic.

For the technician facing a "Stop Engine" light or a Grade Pro (GP) joystick that won't respond, TM14071X19 is the only tool that matters. It bridges the gap between the symptom and the cure by providing the official Diagnostic Trouble Codes (DTCs) and the logic trees to interpret them. This manual allows you to plug into the machine's brain, trace the signal through the harness, and identify the exact failed component without wasting time swapping good parts.

Mastering the G-Series Electronics

DTC Interpretation & Logic

Modern diagnostics is about more than reading a code number; it's about understanding the "why." This manual contains the complete DTC database for the F678818-680877 series. It breaks down every error message into a logical troubleshooting sequence. You will find specific electrical test points, expected voltage values, and resistance ranges for every sensor on the machine. This transforms a cryptic error code into a clear path to repair, whether the issue is in the Engine Control Unit (ECU) or a chassis ground.

Electrical & Hydraulic Schematics

The 870G/872G is wired like an aircraft. TM14071X19 provides the high-fidelity, color-coded wiring diagrams necessary to navigate that complexity. You can trace a single wire from the cab fuse panel all the way to the rear ripper valve. Accompanying these are the hydraulic flow schematics, which visualize the pressure-compensated load-sensing (PCLS) logic. These diagrams show you exactly where the oil is supposed to go when a command is given, making it easy to spot internal valve leakage or blockage.

System Verification & Calibration

Fixing the part is only step one; validating the system is step two. This manual details the Operational Checkout procedures used by factory techs to certify a machine. It covers the calibration of the transmission clutch fill, the setup of the GP steering sensitivity, and the critical 6WD performance tests for the 872G. These procedures ensure that the new sensor or solenoid is perfectly synced with the machine's operating logic.

TM14071X19 Manual Specifications

• Target Models: John Deere 870G, 870GP, 872G, 872GP
• Serial Number Range: F678818—680877
• Document ID: TM14071X19
• Manual Type: Operation and Test (Diagnostic)
• Core Content: Electrical Schematics, DTCs, System Logic
• Format: Digital PDF (Searchable, Zoomable)
• Language: English

Why Source from Manualsmarket.com?

At Manualsmarket.com, we know that for specific serial ranges like F678818—680877, "close enough" isn't good enough. A wiring diagram for an earlier model might look similar but lead you to the wrong pin. We supply the authentic John Deere 870G/872G Diagnostic Manual (TM14071X19) to ensure you have the precise, serial-verified data for your fleet. When you download from us, you are equipping your service laptop with the exact intelligence required to solve the most stubborn electronic faults.

Check out our full John Deere Equipments Collection for all your service library needs.

John Deere 870G-872G Diagnostic FAQ

Does this manual cover the Grade Pro (GP) controls?

Yes. It includes the full diagnostic logic and wiring for the armrest-mounted GP fingertip controls and steering system.

Are the wiring diagrams legible?

Yes. The electrical schematics are high-resolution and color-coded, allowing you to zoom in and trace individual circuits easily.

Does this cover mechanical repair?

No. Engine removal, transmission teardown, and physical repairs are in the separate Service Repair Technical Manual. This book is for diagnostics.

Is the 6WD system covered for the 872G?

Yes. It covers the electronic diagnostics and solenoid testing for the Six-Wheel Drive hydrostatic system.
