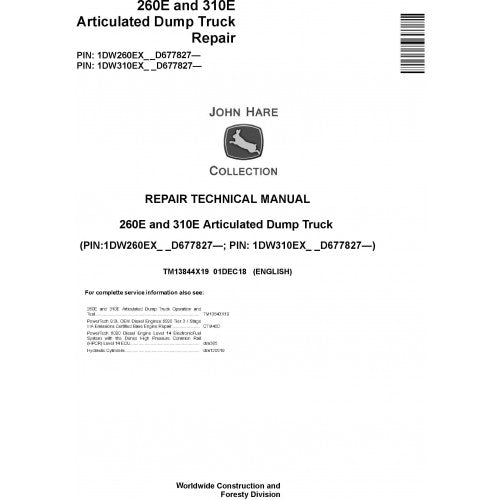

TM13844X19 John Deere 260E, 310E Articulated Dump Truck Pdf Repair Service Technical Manual

E-Series Heavy Hauler Component Rebuilding: John Deere 260E & 310E

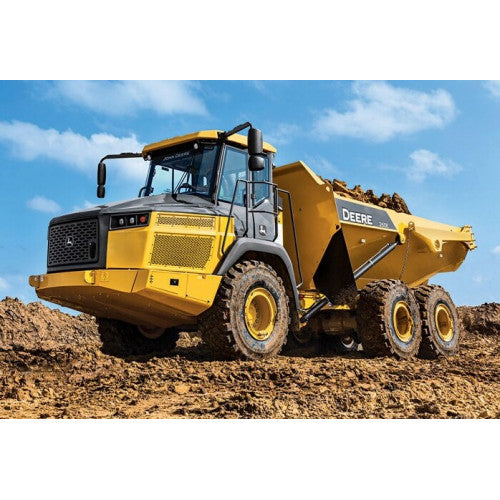

The John Deere 260E and 310E articulated dump trucks are engineered to deliver massive payload capacities across steep inclines and severely degraded terrain. For fleets utilizing these modern earthmovers, specifically units falling within the production block from serial number D677827 and above, maintaining structural integrity is non-negotiable. As extreme hauling cycles generate immense friction and shock loads, major hardware like the central oscillation joint and final drive planetary gears will require intensive mechanical reconstruction. To achieve a factory-grade rebuild without relying on expensive external contractor labor, your service bay must be equipped with the John Deere 260E and 310E Repair Service Technical Manual (TM13844X19).

By incorporating this authoritative physical repair blueprint from manualsmarket.com into your heavy equipment library, you grant your diesel mechanics the capability to execute complete component teardowns safely. This publication delivers the exact mechanical tolerances, heavy rigging instructions, and assembly sequences necessary to restore your E-Series haulers internally.

Core Structural Overhaul & Iron Extraction

This repair standard bypasses electronic troubleshooting to focus entirely on deep physical maintenance. It serves as the primary technical guide for dismantling and reassembling the rugged hardware of the 260E and 310E chassis:

• Articulation Joint Reassembly: Address frame drift and steering instability. The text provides the heavy pressing protocols and precise shimming metrics required to safely extract and replace the massive center pivot pins and spherical oscillation bearings.
• Powertrain & Drop Box Teardown: Manage complete transmission and transfer case overhauls. Mechanics can access exact gear lash measurements, bearing preload specifications, and shaft alignment data critical for a successful drivetrain rebuild.
• Drive Axle & Outboard Planetary Restoration: Prevent catastrophic lock-ups under load. Execute methodical teardowns of the front, center, and rear axles, including differential backlash adjustments and wheel hub seal replacements.
• Dump Body Hoist Cylinder Servicing: Maintain reliable bin lifting power. Utilize the mandated gland nut torque sequences and extraction techniques to completely dismantle and reseal the high-pressure multi-stage lift cylinders.
• Suspension Geometry Maintenance: Safely navigate the discharge and physical teardown of the hydro-pneumatic suspension struts, ensuring the replacement of heavy-duty packing and linkages meets strict OEM dimensions.

TM13844X19 Machine Applicability

Target Platform:

John Deere 260E, 310E Articulated Dump Truck

Serial Number Range:

Valid for SN. D677827 and upward (-)

Manual Designation:

TM13844X19

Service Category:

Repair Technical Manual (Physical Wrenching & Hardware)

Access Medium:

Fully Searchable Digital PDF

Primary Maintenance Facilities Utilizing This Guide

1. Large-Scale Civil Earthmoving Hubs: Standardize your total-machine rebuild programs by ensuring your shop crews utilize the exact mechanical dimensions and torque specifications authored specifically for the E-Series production run.
2. Mine Site Rebuild Centers: Reduce long-term lifecycle costs on your 310E units by performing major suspension and transmission overhauls locally, preserving machinery uptime.
3. Heavy Diesel Wrenching Specialists: Guarantee that every gearbox or articulation hitch you service on a John Deere hauler meets the stringent operational safety standards required for continuous quarry hauling.

Mechanical Service Inquiries (FAQ)

Where are the Diagnostic Trouble Codes (DTCs) and wiring schematics for the E-Series?

Electrical circuit tracing, CAN bus data, sensor voltage specifications, and active fault codes belong exclusively to the Diagnostic, Operation, and Test manual. This specific TM13844X19 document is strictly reserved for hardware removal, mechanical teardowns, and physical wrenches-on-iron repair.

Can this publication guide my technicians through an internal engine rebuild?

This service manual provides the safe rigging points and mechanical steps necessary to unbolt, disconnect, and hoist the entire diesel power plant out of the front frame. However, deep block maintenance—such as replacing pistons or machining the crankshaft—requires a dedicated Component Technical Manual specific to your machine's engine assembly.

Are the torque values for the wheel lug nuts and planetary covers provided?

Yes. Throughout every teardown and reassembly chapter, the document supplies the mandatory torque charts, tightening patterns, and thread-locker applications necessary to secure the hauler's structural hardware.

Is the digital file formatted for easy searching on a shop tablet?

Absolutely. The PDF architecture allows your mechanics to instantly search for a specific component name, bypassing manual page turning. You can also print specific axle rebuilding sections or torque tables to keep at the parts washer.

Solidify Your Fleet's Structural Foundation

Do not compromise the load-bearing integrity of your heavy hauling assets. Secure the John Deere 260E and 310E Repair Manual TM13844X19 today and provide your heavy mechanics with the definitive physical data required to accurately reconstruct your articulated dump trucks.
