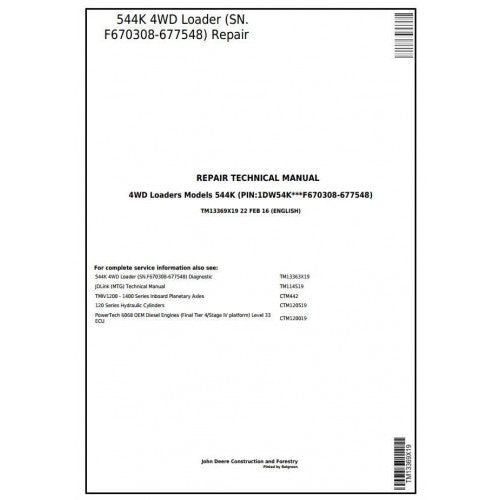

TM13369X19 John Deere 544K 4WD Loader Pdf Repair Service Technical Manual

Conquer Catastrophic Wear: JD 544K Structural Overhaul Blueprint

When your John Deere 544K wheel loader—specifically machines falling within the F670308 to 677548 serial range—begins exhibiting severe mechanical fatigue like grinding differential gears or hazardous slop in the boom pivot pins, temporary band-aids only delay inevitable failure. These robust 4WD loaders are subjected to grueling daily cycles of lifting wet aggregate and pushing dense earth. Attempting a deep structural repair without the precise factory dimensions is a guaranteed path to wrecked replacement components and wasted labor. The John Deere 544K Repair Service Technical Manual (TM13369X19) provides the uncompromised, step-by-step physical teardown sequences you need to execute complex mechanical restorations with absolute certainty.

Accessible immediately, this OEM document empowers your mechanics to permanently fix failing hardware, bypass prolonged dealership wait times, and get your essential earthmover back to generating revenue.

TM13369X19 Archive Specifications

Equipment Line	Technical Reference Details
Machine Designation	John Deere 544K 4WD Loader
Target Serial Range	Valid for SN. F670308 through 677548
Document Identifier	TM13369X19
Service Scope	Hardware Teardown & Mechanical Reassembly
File Delivery	Searchable Digital PDF Document

Resolving Complex Hardware Failures

This guide is explicitly dedicated to physical, wrenches-on-iron solutions, transitioning your shop from simple parts swapping to total structural renewal:

• Drivetrain & Transmission Rebuilds: Safely extract and dismantle the entire drive system. Acquire the critical clutch-pack tolerances, shaft end-play measurements, and bearing preloads necessary for smooth, reliable power transfer.
• Heavy-Duty Axle Restoration: Overhaul the front and rear drive axles with complete confidence. The text supplies precise shim measurements and gear backlash limits to rebuild the planetary differentials properly.
• Loader Arm & Linkage Renewal: Eradicate sloppy implement control. Follow the strict pressing protocols and wear limits for replacing the massive Z-bar pivot pins, boom arm mounts, and bucket bushings.
• Hydraulic Cylinder Rehabilitation: Tear down the enormous lift, bucket, and steering cylinders safely. Apply the exact factory torque metrics to the piston head nuts to guarantee leak-free operation under maximum load.
• Articulation Joint Servicing: Extract severely worn center pivot hardware and install new oscillation frame bushings to correct dangerous chassis misalignment and ensure safe machine tracking.

Who Relies on This Teardown Guide?

• Earthmoving Contractors: Maintain your tight excavation schedules by performing major hardware replacements in your own facility before complete component failure occurs on the job site.
• Independent Heavy Equipment Shops: Take on lucrative, complex drivetrain rebuilds knowing you have the precise structural tolerances required for this specific JD 544K iteration.
• Municipal Public Works Managers: Stretch your operational budget by executing major pin, bushing, and axle repairs internally instead of outsourcing to expensive heavy iron dealerships.

Structural Repair FAQ

Will this guide help me trace an electrical short or read fault codes?

No. Diagnostic Trouble Codes (DTCs), CAN bus analysis, and wiring schematics are entirely reserved for the companion Diagnostic, Operation, and Test manual. This specific TM13369X19 publication strictly covers mechanical teardowns and physical assembly.

Can we use this document to completely rebuild the diesel engine?

This structural guide outlines the proper hoisting and removal procedures to pull the entire engine assembly from the machine's frame. However, profound internal restorations—like replacing the crankshaft or cylinder liners—will require a dedicated Component Technical Manual tailored to that block.

Does this cover the exact hardware for my loader's production run?

Yes, this reference is uniquely authored for the specific mechanical configurations, structural variations, and physical tolerances of the 544K models falling strictly within the F670308-677548 manufacturing block.

Is it possible to print the differential rebuild instructions for the shop floor?

Absolutely. The digital format allows your technicians to print specific exploded views and torque tables, bringing the exact numerical data directly to the toolbox without risking damage to a digital device in a greasy environment.

Dominate Your Maintenance Schedule

Do not let a leaking steering cylinder or a grinding final drive cripple your daily tonnage. Download the John Deere 544K Repair Manual TM13369X19 today and arm your facility with the uncompromised data required for total mechanical restoration.
