TM13363X19 John Deere 544K 4WD Loader Pdf Diagnostic, Operation and Test Service Manual

Overcome Electronic Paralysis: JD 544K System Troubleshooting

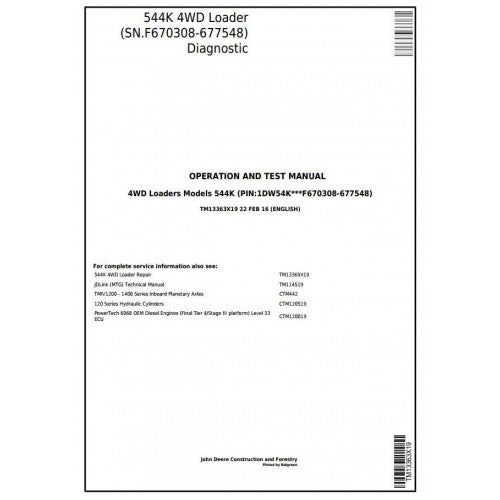

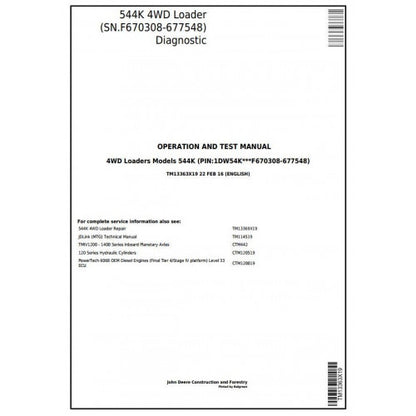

When your John Deere 544K material handler refuses to engage a forward gear due to a severed CAN bus link, or the implement pump fails to deliver adequate breakout force, guessing the culprit destroys your daily productivity. These robust earthmovers are equipped with complex load-sensing hydraulics and interconnected control modules that demand clinical, data-driven testing. Relying on basic mechanic intuition simply does not work when a mysterious dashboard alert drops the machine into limp mode. For loaders manufactured strictly within the F670308 through 677548 production sequence, the John Deere 544K Diagnostic, Operation, and Test Manual (TM13363X19) is the definitive tool required to bypass trial-and-error repairs.

Available for direct digital download, this factory troubleshooting guide provides your internal maintenance staff with the exact logic trees, pressure benchmarks, and electrical maps necessary to isolate system failures immediately and get your bucket back in the dirt.

Actionable Fault Isolation & Analytics

This technical archive shifts your shop's strategy from reactive parts swapping to targeted system evaluation. It is explicitly authored to analyze the internal control networks and fluid dynamics of your heavy equipment:

• Dashboard Error Translation (DTCs): Eliminate the guesswork of flashing warning lights. This index details every diagnostic trouble code, providing the specific sensor parameters that triggered the fault and the mandatory sequential steps to clear the issue safely.
• Harness Routing & Schematics: Hunt down parasitic voltage drops and hidden ground faults efficiently. The manual delivers comprehensive electrical wiring diagrams mapped precisely for the chassis modules, cab interface, and transmission controllers.
• Fluid Power Benchmarking: Ensure your loader is generating maximum lifting power. Connect your gauges to designated test ports and evaluate the main implement pump output, load-sense relief valve pressures, and steering circuit efficiency against original OEM metrics.
• Drive Logic Evaluation: Validate the electronic communication between the transmission control unit and the shifting solenoids to cure harsh directional changes or unexpected power loss under heavy aggregate loads.
• Baseline Interlock Verification: Perform mandatory operational checkouts on the parking brake logic, neutral-start circuits, and braking accumulators before releasing the machine back into a demanding production environment.

TM13363X19 Technical Reference Specs

Equipment Identifier	Diagnostic Archive Parameters
Target Machinery	John Deere 544K 4WD Loader
Applicable Production Run	Serial Numbers F670308 to 677548
OEM Publication Code	TM13363X19
Diagnostic Application	Wiring Diagrams, Fluid Pressures, DTC Analysis
Delivery Architecture	Searchable Digital PDF Document

Who Requires This Diagnostic Intelligence?

• Site Development Mechanics: Maintain your project's excavation quotas by rapidly identifying electronic glitches before they paralyze your primary earthmoving equipment.
• Quarry Fleet Managers: Empower your in-house staff to troubleshoot complex CAN bus communication errors internally rather than waiting weeks for an external dealer service truck to arrive.
• Mobile Field Technicians: Arrive at remote gravel pits fully equipped with the precise electrical ohm values and hydraulic flow metrics required to evaluate this specific generation of 544K loaders accurately.

Troubleshooting Guide FAQ

Is this the correct book for replacing the planetary gears?

No. Mechanical hardware teardowns, axle rebuilds, and internal component restorations are covered exclusively in the companion Service Repair Technical Manual. This specific TM13363X19 publication is dedicated entirely to diagnosing system logic, reading fluid pressures, and tracing electrical wires.

Does this PDF explain the cab control wiring?

Yes. The document includes comprehensive schematic diagrams detailing the electrical circuits, wire routing, and harness connections for the cab instrumentation and operator controls.

Can my team use this to rebuild the diesel block?

While this file includes diagnostic procedures for engine-mounted sensors (such as coolant temperature switches and fuel solenoids) that communicate with the main chassis, deep internal mechanical engine rebuilding requires a completely separate Component Technical Manual.

Is it easy to find a specific sensor test on a laptop?

Absolutely. The digital format is completely indexed and searchable. A technician can type a specific component name or DTC directly into the search bar, instantly bringing up the correct troubleshooting sequence without wasting time flipping through a physical binder.

Restore Your Loading Capability

Stop allowing an obscure wiring short or a stuck priority valve to stall your material handling operations. Secure the John Deere 544K Diagnostic Manual TM13363X19 today and arm your facility with the precise testing data necessary to keep your fleet operational.
