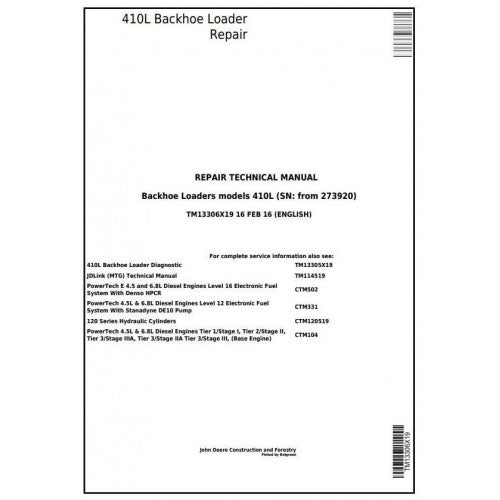

TM13306X19 John Deere 410L Backhoe Loader Pdf Repair Service Technical Manual

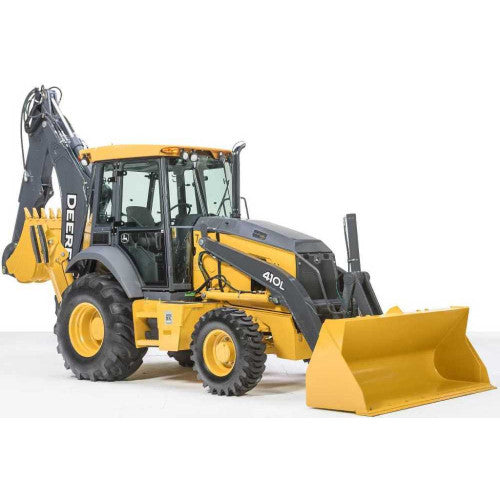

John Deere 410L Backhoe Loader Repair Service Technical Manual (TM13306X19)

Heavy-duty trenching and material handling require the robust iron of the 410L. When this 14-foot dig depth powerhouse requires major mechanical surgery, guessing on clearance tolerances is a fast track to component failure. Equip your service bay with the official John Deere 410L Backhoe Loader Repair Service Technical Manual to ensure every bolt meets factory specifications. By grabbing this TM13306X19 PDF download, your technicians secure the exact factory OEM manual utilized by authorized dealer mechanics to perform complete structural teardowns. Delivered instantly as a high-resolution, natively searchable PDF, this digital binder provides the step-by-step physical disassembly instructions needed to safely extract the diesel engine, rebuild the heavy-duty transaxle, and press new pins into the loader mast.

TM13306X19 Document Profile & 410L Machine Specs

• Supported Machine: John Deere 410L Backhoe Loader
• Applicable Serial Number Breaks: SN. C273920- and SN. D273920- (and newer)
• Official Manufacturer ID: TM13306X19
• Manual Classification: Service Repair Technical Manual (Mechanical, Hardware, and Structural Work)
• Core Maintenance Scope: Engine Hoisting, Drivetrain Disassembly, Axle Rebuilding, Boom/Dipperstick Hardware Replacement
• File Format: Instant Digital PDF (Bookmarked and fully text-searchable)
• Language Standard: English

Physical Rebuild Procedures for the 410L Chassis

This technical publication skips daily fluid checks and focuses entirely on heavy-iron interventions. It outlines the authorized physical procedures required to dismantle and reconstruct the modern components of your 410L.

PowerTech Engine Rigging & Exhaust Hardware

Servicing the physical block of a modern Tier 4 engine—or extracting it completely from the loader's frame—demands strict adherence to lifting geometry. This manual illustrates the authorized hoist points, center-of-gravity calculations, and the precise sequential unbolting of the heavy exhaust aftertreatment hardware (DPF/SCR cans) to safely isolate the power unit.

Heavy-Duty Transaxle & MFWD Axle Service

The 410L’s Mechanical Front-Wheel Drive (MFWD) axle and rear differential handle massive pushing torque. When it is time to overhaul these components, this guide provides the complete exploded teardown diagrams. Mechanics will utilize the provided shim-selection mathematics to set accurate bearing preloads and gear backlash, preventing premature destruction of the planetary hubs and ring gears.

Boom Hydraulics & Loader Linkage Restoration

A backhoe loses its grading precision when the loader arms develop structural slop. Restore absolute rigidity by following the documented instructions for extracting seized pivot pins and pressing in new hardened bushings across the boom, dipper, and bucket linkage. Furthermore, this document dictates the physical teardown, seal replacement, and gland nut torque required for the massive hydraulic lift cylinders.

Who Relies on this Hardware Blueprint?

The 410L is a high-production machine. This specific mechanical repair guide is engineered for the professionals tasked with keeping that iron moving:

• Heavy Highway Construction Crews: Executing their own in-house wet-disc brake replacements to minimize downtime during paving season.
• Municipal Fleet Heavy Wrenchers: Requiring exact factory pin clearances to align and repair worn dippersticks abused by concrete removal.
• Independent Diesel Mechanics: Needing the exact torque specs and teardown logic to safely perform major powertrain separations without dealer assistance.

Crucial Rule: Mechanical Wrenching vs. Electrical Diagnostics

To avoid severe workflow interruptions, you must understand John Deere's specific literature rules. This TM13306X19 Service Repair manual exclusively governs physical wrenches-and-metal hardware repair. It explicitly does NOT contain schematic wiring diagrams, CAN-bus network maps, or troubleshooting logic for Electronic Trouble Codes (DTCs). If your 410L requires emissions sensor testing, wiring harness tracing, or hydraulic flow benchmarking, those procedures are strictly confined to the companion Diagnostic, Operation and Test Technical Manual.

Secure Your Heavy Iron Data at Manualsmarket.com

Never gamble on fastener torque limits during a major heavy equipment overhaul. At Manualsmarket.com, we guarantee the instant digital delivery of your verified TM13306X19 PDF. Arm your tool chest with the authentic structural blueprints needed to safely rebuild and extend the operational life of your John Deere 410L.

Workshop FAQ: 410L Mechanical Repair (TM13306X19)

Does this manual cover the replacement of the Ride Control accumulator?

Yes. The physical removal, depressurization safety steps, and installation of the ride control hydraulic accumulator and associated hard lines are covered in the mechanical hydraulics section.

Will this document help me fix a flashing DEF system light?

No. Dashboard warnings, electronic sensor diagnostics, and software-driven emissions tests are strictly located in the Diagnostic and Test manual. This TM13306X19 guide handles the physical removal of the exhaust hardware only.

Are the torque specifications for the loader bucket tooth shanks included?

Absolutely. You will find exhaustive, dedicated torque tables covering all ground-engaging tools, structural pivot hardware, axle mounting bolts, and cab isolation mounts.

Can I easily find specific part teardowns while working under the machine?

Yes. Because the document is an intelligently rendered, natively indexed digital file, you can utilize your tablet's search bar to type terms like "planetary rebuild" or "brake friction plate" and jump directly to the correct instructional page.
