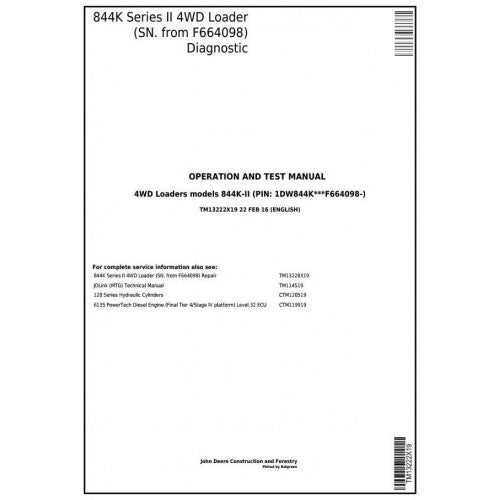

TM13222X19 John Deere 844K Series II 4WD Loader Pdf Diagnostic, Operation and Test Service Manual

Conquer Electronic Gremlins: JD 844K-II System Troubleshooting

A massive John Deere 844K Series II wheel loader halted by an obscure sensor fault is a profound financial liability. Operating in severe mining, quarrying, and aggregate environments, these high-tonnage machines rely on highly advanced digital controllers to manage everything from transmission shifts to load-sensing hydraulics. When a unit built from serial number F664098 onward triggers a sudden limp-mode event, blind parts-swapping is both prohibitively expensive and largely ineffective. Waiting days for an external service technician to arrive with a laptop completely destroys your production schedule. The John Deere 844K Series II Diagnostic, Operation, and Test Manual (TM13222X19) provides your internal maintenance staff with the definitive factory testing procedures to scientifically trace electrical anomalies and fluid pressure drops directly to their origin.

Ready for immediate digital integration into your service department, this comprehensive analytical framework stops the cycle of diagnostic guesswork, delivering the exact electronic blueprints and fluid flow metrics required to keep your primary earthmovers operational.

Eradicate Guesswork & Validate Machine Performance

Transform your field service approach from reactive guessing to structured fault isolation. This technical document bypasses heavy wrenches-on-iron teardowns, focusing entirely on diagnosing the loader's embedded control logic and fluid power circuits:

• DTC Translation & Logic Flow: Stop staring at flashing cab alerts. Access the exhaustive index of Diagnostic Trouble Codes to understand exactly which sensor triggered the warning and follow the precise, step-by-step logic trees required to safely clear the fault.
• Electrical Network Navigation: Pinpoint elusive ground faults, locate compromised harness connections, and trace parasitic voltage drops utilizing comprehensive schematic wiring diagrams mapped specifically for the updated cab interfaces of this production block.
• Fluid Power Benchmarks: Connect flow meters and gauges to designated factory test ports. Verify the primary implement pump output and benchmark the priority steering valve pressures to cure sluggish boom lift or weak bucket breakout force on massive payloads.
• Powertrain Communication Analytics: Validate the electronic data exchange between the transmission control module and the heavy-duty shifting solenoids to permanently eliminate rough directional changes or sudden losses in hauling speed.
• Safety Interlock Verification: Conduct rigorous operational checkouts on the high-capacity braking accumulators, neutral-start circuits, and park brake parameters before releasing the machine back into a hazardous excavation environment.

TM13222X19 Testing Archive Specifications

Equipment Identifier	Diagnostic Data Profile
Target Machinery	John Deere 844K Series II 4WD Loader
Applicable Production Run	Valid from SN. F664098 and up
OEM Publication Code	TM13222X19
Document Utility	DTC Analysis, Wiring Maps, Hydraulic Flow Tests
Delivery Architecture	Searchable Digital PDF Document

Who Relies on This Troubleshooting Protocol?

• Mining Site Diagnosticians: Ensure your primary haul-truck loaders never miss a loading cycle by empowering your pit technicians to clear complex CAN bus communication errors immediately.
• Heavy Civil Fleet Managers: Maintain your project's daily dirt-moving quotas by rapidly identifying electrical shorts before they escalate into complete machine shutdowns at the rock face.
• Mobile Heavy Iron Techs: Expand your field troubleshooting capabilities with the exact electrical ohm values and hydraulic flow metrics required to evaluate this specific generation of JD production loaders.

System Evaluation FAQ

Does this manual explain how to remove and rebuild the heavy drive axles?

No. Heavy mechanical hardware extraction, planetary rebuilding, and physical component restorations are strictly covered in the companion Service Repair Technical Manual. This TM13222X19 publication is explicitly dedicated to testing logic boards, reading hydraulic pressures, and tracing electrical wires.

Are the electrical schematics applicable to my specific 844K-II loader?

Yes. The electrical maps, harness routings, and control module layouts in this document accurately reflect the specific engineering updates and architecture designed for 844K Series II loaders built starting from serial number F664098.

Can we use this file to diagnose deep internal engine block failures?

This PDF covers the diagnostic testing parameters for engine-mounted sensors (such as oil pressure senders and fuel shutoff solenoids) that communicate with the main loader chassis network. However, comprehensive internal engine diagnostics and mechanical testing require a dedicated Component Technical Manual.

Is the fault code directory easily searchable on a field laptop?

Absolutely. The digital PDF format is completely indexed and searchable. A technician can type the exact DTC from the cab monitor directly into their device's search bar, instantly bringing up the required troubleshooting flowchart without wasting time flipping through physical pages on the job site.

Command Your Maintenance Schedule

Do not let a hidden ground fault or a failing steering pressure switch paralyze your high-tonnage material handling operations. Download the John Deere 844K Series II Diagnostic Manual TM13222X19 today and arm your service trucks with the precise testing data required to maintain your operational edge.
