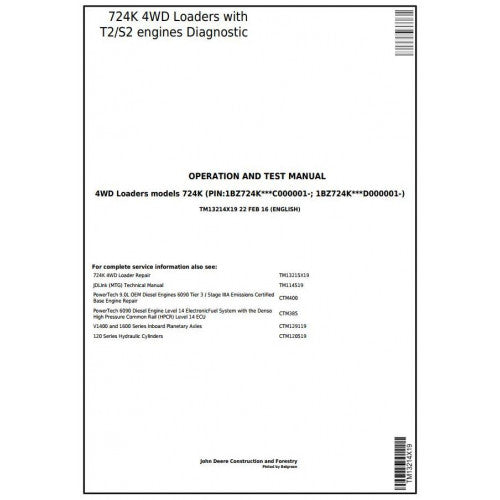

TM13214X19 John Deere 724K Loader Pdf Diagnostic, Operation and Test Service Manual

Overcome System Anomalies: JD 724K T2/S2 Diagnostics

When your John Deere 724K wheel loader—specifically those powered by Tier 2 or Stage II emissions engines—refuses to engage the bucket hydraulics due to a phantom sensor fault, productivity grinds to a halt. These specific engine configurations are highly prized in remote forestry, heavy agriculture, and mid-sized earthmoving for their robust, uncomplicated power delivery. However, their interconnected control networks still require precise, scientific testing when electronic gremlins appear. Throwing random replacement parts at a machine built from the C000001 or D000001 production blocks rarely clears a persistent dashboard warning. You need the exact factory flowcharts to isolate the root cause. The John Deere 724K (T2/S2) Diagnostic, Operation, and Test Manual (TM13214X19) is the ultimate problem-solving framework, giving your technicians the blueprints to trace electrical shorts and fluid pressure drops directly to their source.

Available for immediate integration into your service trucks this comprehensive testing blueprint eliminates the need for expensive trial-and-error methodology by guiding your team through the exact diagnostic steps utilized by factory engineers.

Targeted Fault Isolation for T2/S2 Platforms

This technical reference focuses entirely on troubleshooting the digital and fluid power nervous systems of your loader, strictly avoiding mechanical wrenches-on-iron teardowns:

• Tier-Specific Code Translation (DTCs): Stop struggling with obscure dashboard alerts. Access the complete library of Diagnostic Trouble Codes programmed specifically for the T2/S2 chassis architecture, outlining the exact sensor inputs and the step-by-step logic required to clear them safely.
• Electrical Network Mapping: Hunt down parasitic voltage drains, locate severed wires, and evaluate cab interfaces. Utilize highly accurate schematic wiring diagrams engineered specifically for the cab harnesses and control modules of this exact build.
• Fluid Power Benchmarking: Validate your implement efficiency to cure sluggish boom lift. The guide specifies the required test port locations and exact PSI metrics to measure the main hydraulic pump, steering circuits, and load-sense relief valves against original manufacturer standards.
• Powertrain Controller Sync: Evaluate the digital data exchange between the transmission logic board and the shifting solenoids to permanently resolve erratic directional changes or sudden power loss under heavy load.
• Pre-Operation Safety Checks: Perform standardized performance evaluations on braking accumulators, neutral-start interlocks, and park brake parameters before clearing the machine for active duty on a demanding job site.

TM13214X19 Document Specifics

Equipment Detail	Diagnostic Archive Parameters
Platform	John Deere 724K 4WD Loader
Engine Configuration	Tier 2 / Stage II (T2/S2) Emissions
Production Block	Starting from SN. C000001 and D000001
Publication Code	TM13214X19
Diagnostic Utility	DTC Logic, Schematic Wiring, Fluid Pressures

Who Resolves Pain Points With This Blueprint?

• Remote Forestry Mechanics: Keep your primary log loaders operational in the woods by diagnosing complex CAN bus errors on-site without waiting days for a dealership service truck to arrive.
• Mid-Size Excavation Fleets: Maintain your project timelines by empowering your in-house staff to trace complex electrical shorts before they paralyze your earthmovers.
• Independent Diesel Diagnosticians: Equip your service truck with the precise electrical resistance values and hydraulic flow metrics needed to accurately evaluate these specific T2/S2 powered loader configurations.

Diagnostic Troubleshooting FAQ

Does this manual explain how to extract and rebuild the T2/S2 engine block?

No. This file strictly covers the diagnostic testing of engine-mounted sensors communicating with the loader's chassis network. For heavy physical extraction, internal block rebuilds, or mechanical testing of the power plant, you require a distinct Component Technical Manual.

Are the wiring schematics applicable to loaders with newer Tier 3 or Tier 4 engines?

No. The electrical diagrams, harness routings, and controller pinouts in this document are mapped exclusively to the Tier 2 / Stage II engine chassis configurations starting from the C000001 and D000001 serial blocks. Newer emissions tiers utilize completely different wiring networks.

Will this show me how to rebuild the inboard planetary gears?

Mechanical hardware teardowns, axle rebuilds, and internal component restorations are covered exclusively in the companion Service Repair Technical Manual. This TM13214X19 publication is dedicated solely to diagnosing logic, reading fluid pressures, and tracing wires.

Is the diagnostic trouble code directory searchable on a field laptop?

Yes. The digital PDF format is fully indexed. Technicians can type the specific DTC directly into the search bar to instantly access the correct troubleshooting flowchart without wasting time paging through physical binders in a dirty environment.

Eradicate Electronic Downtime

Do not let a failing pressure switch or a severed harness wire paralyze your material handling operations. Secure the John Deere 724K (T2/S2) Diagnostic Manual TM13214X19 today and equip your service bays with the uncompromised testing data required to keep your fleet moving.
