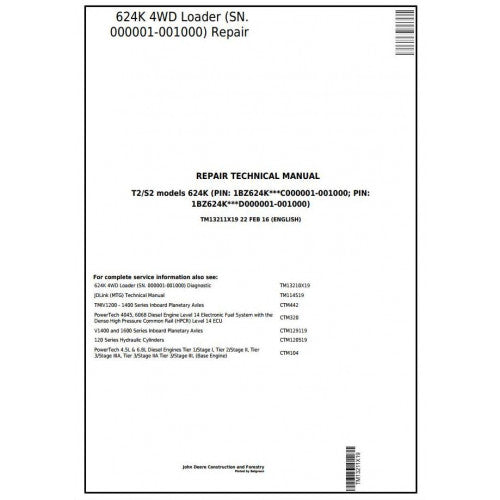

TM13211X19 John Deere 624K (T2/S2) 4WD Loader Pdf Repair Service Technical Manual

Combat Heavy Hardware Fatigue: JD 624K (T2/S2) Mechanical Teardown

The John Deere 624K wheel loader—specifically the highly sought-after Tier 2/Stage II emissions variants—is a celebrated workhorse in demanding agricultural, forestry, and municipal applications. These robust machines are favored for their straightforward, reliable power delivery. However, relentless daily loading cycles eventually take a severe toll on their structural iron and heavy drivetrains. When a front planetary drive begins to grind or the center articulation joint develops hazardous play on early models spanning the 000001 to 001000 production block, improvising a structural repair is a costly mistake. The John Deere 624K (T2/S2) Repair Service Technical Manual (TM13211X19) provides the definitive, problem-solving blueprints necessary to execute complex physical extractions and mechanical overhauls directly on your own shop floor, mitigating the crushing expense of outsourced dealership labor.

Ready for immediate digital integration, this structural reference ensures your maintenance facility can overcome profound hardware failures, restoring the physical integrity of your primary material handlers to uncompromising factory standards.

Targeted Solutions for Deep Mechanical Wear

This technical publication bypasses routine preventative care, delivering the critical dimensions, extraction methods, and reassembly sequences to solve the 624K's most severe physical breakdowns:

• Overcoming Powertrain Failures: Tackle transmission rebuilds without hesitation. Obtain the critical clutch pack tolerances, gear backlash measurements, and heavy bearing preloads required to fully restore the gearbox and torque converter.
• Resolving Axle & Differential Wear: Safely dismantle the heavy-duty drive axles. The reference provides precise shim selection charts to rebuild the inboard planetary drives and differentials to uncompromised OEM specifications.
• Curing Boom & Linkage Slop: Eliminate dangerous bucket sway during material handling. Utilize mandated wear limits and heavy pressing protocols to successfully replace heavily fatigued Z-bar pivot pins, linkage arms, and bucket bushings.
• Hydraulic Cylinder Rehabilitation: End the frustration of constantly leaking lifting equipment. Safely dismantle the enormous lift, tilt, and steering cylinders, utilizing specific factory torque requirements for the piston retaining nuts to guarantee long-term fluid containment.
• Fixing Articulation Wander: Address hazardous chassis tracking. Extract compromised center pivot hardware and press in new oscillation frame bearings using authorized tightening metrics to ensure straight-line stability under full payload.

TM13211X19 Document Profile

Equipment Specifications	Technical Archive Details
Target Machine	John Deere 624K 4WD Loader
Emissions Standard	Tier 2 / Stage II (T2/S2)
Production Era	SN. 000001 through 001000
Official Document ID	TM13211X19
Document Function	Structural Teardown & Mechanical Reassembly
Format Type	Searchable Digital PDF File

Who Resolves Pain Points With This Blueprint?

• Agricultural Fleet Mechanics: Keep your primary feed and silage loaders operational by addressing worn mechanical joints directly on the farm before they escalate into catastrophic structural failures.
• Forestry Equipment Specialists: Execute complex drivetrain rebuilds internally before a failing transmission component halts your log-loading operations at the mill.
• Independent Heavy Iron Shops: Diversify your revenue stream by accepting lucrative mechanical teardowns, fully equipped with the exact physical tolerances for this specific JD manufacturing run.

Heavy Maintenance Reference FAQ

Does this file explain how to trace an electrical short or read fault codes?

No. Identifying diagnostic trouble codes (DTCs), locating electrical shorts, and testing sensor logic belong strictly in the companion Diagnostic and Test manual. This specific TM13211X19 publication is dedicated exclusively to physical, wrenches-on-iron hardware teardowns and mechanical assembly.

Can my mechanics use this to overhaul the diesel power plant?

This reference guides the safe hoisting and mechanical disconnection necessary to pull the complete engine assembly from the loader's chassis. However, deep internal block restorations—such as fitting new pistons or a crankshaft—require a separate Component Technical Manual specifically authored for that power plant.

Are these mechanical tolerances applicable to newer Tier 4 loaders?

No. The hardware teardown steps, structural component layouts, and physical repair specifications contained within are engineered exclusively for the T2/S2 configurations spanning the 000001 to 001000 serial blocks.

Is the digital file suitable for printing heavy axle diagrams?

Absolutely. The PDF layout permits your staff to print specific exploded hardware views and torque charts, placing the exact numerical data directly on the workbench without exposing a laptop or tablet to shop grease and dirt.

Conquer Structural Downtime

Do not let a failing planetary drive or severely worn articulation pins dictate your loading schedule. Secure the John Deere 624K (T2/S2) Repair Manual TM13211X19 today and equip your facility with the uncompromised mechanical data required to restore your wheel loader to peak physical condition.
