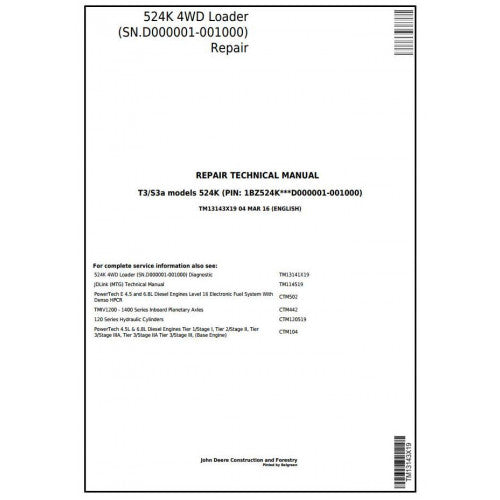

TM13143X19 John Deere 524K (T3/S3a) 4WD Loader Pdf Repair Service Technical Manual

Conquer Severe Iron Fatigue: JD 524K Mechanical Teardowns

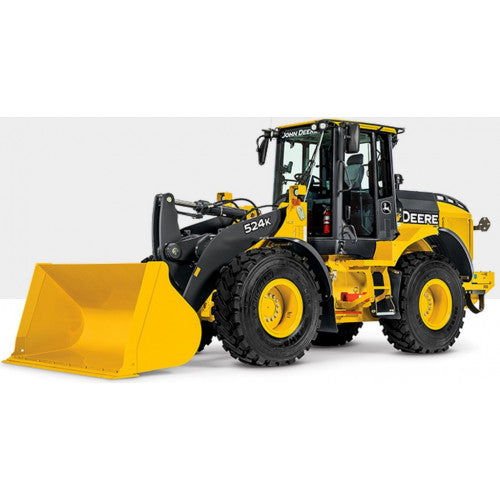

The John Deere 524K wheel loader tackles the relentless daily grind of municipal waste transfer, commercial snow removal, and intense agricultural feedlot management. When these Tier 3/Stage IIIA (T3/S3a) machines suffer a profound physical breakdown—such as a heavily worn center oscillation joint or a grinding inboard planetary gear—attempting a blind repair is a massive financial risk. For loaders falling strictly within the D000001 to 001000 production block, relying on estimated torque values leads directly to premature component failure and unsafe operating conditions. The John Deere 524K (T3/S3a) Repair Service Technical Manual (TM13143X19) supplies your mechanics with the exact OEM extraction methods and dimensional tolerances required to solve catastrophic hardware issues right on your shop floor.

Available instantly, this structural blueprint stops the financial bleeding associated with outsourcing heavy iron repairs, empowering your team to mitigate downtime by executing complex physical rebuilds independently and accurately.

Targeted Solutions for Deep Structural Wear

Shift your maintenance strategy from basic preventative care to advanced component restoration. This manual bypasses electrical diagnostics to focus exclusively on the exact disassembly and reconstruction of the 524K's heavy assemblies:

• Powertrain Extraction & Overhaul: Resolve harsh mechanical slipping by safely dismantling the transmission. The manual dictates the exact clutch pack stack-up clearances, shaft end-play measurements, and bearing preloads necessary to restore optimal power delivery.
• Heavy Axle & Differential Reconstruction: Rectify failing final drives without paying dealership markups. Access the mandatory shim calculations and gear backlash limits required to properly rebuild the front and rear drive axles.
• Z-Bar Linkage & Pin Replacement: Cure hazardous bucket drift during heavy material lifts. Utilize factory pressing protocols and strict wear thresholds to replace fatigued boom linkage pins, forward arms, and heavy-duty bucket bushings safely.
• High-Pressure Cylinder Resealing: Stop chronic hydraulic fluid leaks at the source. Tear down massive boom, tilt, and steering cylinders, applying the exact tightening sequences to the piston retaining nuts for permanent, high-pressure fluid containment.
• Articulation Joint Servicing: Eliminate dangerous steering wander on the job site. Extract compromised center pivot hardware and press in fresh oscillation frame bearings utilizing authorized torque metrics to restore straight-line chassis stability.

TM13143X19 Document Profile

Equipment Specifications	Technical Archive Details
Target Asset	John Deere 524K 4WD Loader
Emissions Configuration	Tier 3 / Stage IIIA (T3/S3a)
Applicable Production Block	SN. D000001 through 001000
OEM Document ID	TM13143X19
Maintenance Utility	Physical Hardware Teardown & Assembly
File Architecture	Searchable Digital PDF Archive

Who Rectifies Breakdowns With This Blueprint?

• Public Works Fleet Directors: Keep city-owned utility loaders moving snow and salt by performing major mechanical pin and bushing replacements internally before a complete joint failure occurs.
• Agricultural Equipment Specialists: Address severe driveline wear on your primary feed handling equipment directly on the farm, avoiding massive transportation costs to external repair facilities.
• Heavy-Duty Diesel Mechanics: Take on lucrative, complex drivetrain teardowns knowing you possess the precise structural tolerances required for this specific JD manufacturing run right in your service bay.

Mechanical Overhaul Queries

Will this PDF help me troubleshoot a flashing check engine light?

No. Diagnostic Trouble Codes (DTCs), sensor logic testing, and schematic wiring networks belong exclusively to the companion Diagnostic, Operation, and Test manual. This document focuses entirely on physical, wrenches-on-iron hardware teardowns.

Does this guide cover the internal rebuilding of the diesel block?

This reference details the safe mechanical disconnection and heavy hoisting steps required to pull the engine assembly from the loader frame. Deep internal block restorations—such as replacing pistons, cylinder liners, or crankshaft bearings—require a dedicated Component Technical Manual.

Is this manual applicable to the newer Tier 4 Final loaders?

This specific publication is explicitly engineered for the mechanical tolerances, structural hardware, and chassis layouts of the Tier 3/Stage IIIA (T3/S3a) platforms built within the D000001 to 001000 serial block.

Can my team print the differential rebuild specs for the workbench?

Absolutely. The digital PDF format empowers your staff to print out specific exploded hardware diagrams and torque tables, keeping exact numerical data at hand without exposing a laptop or tablet to a dirty repair bay.

Secure Your Heavy Iron Reliability

Do not allow a failing planetary gear or worn articulation hardware to cripple your daily tonnage. Secure the John Deere 524K (T3/S3a) Repair Manual TM13143X19 today and equip your facility with the uncompromised mechanical data required to restore your utility loader.
