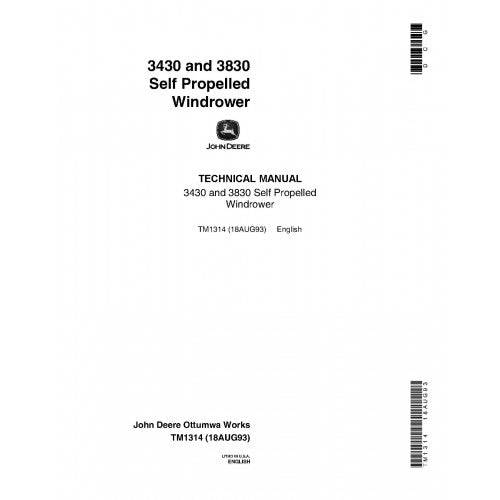

TM1314 John Deere 3430 and 3830 Self-Propelled Windrowers Pdf Technical Service Manual

High-Speed Forage Harvesting: JD 3430 & 3830 Windrowers

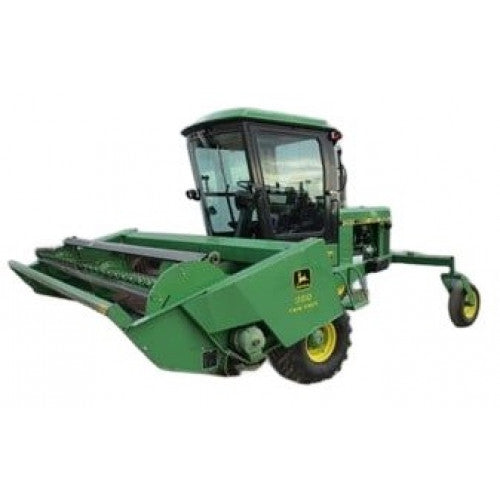

Laying down perfect swaths of hay requires equipment capable of sustained, high-speed cutting and aggressive crop conditioning. The John Deere 3430 and 3830 self-propelled windrowers were built as dedicated forage platforms, utilizing heavy hydrostatic drives and massive front-mounted headers to dominate hayfields. However, pushing sickle bars through dense, tangled crops and driving over uneven terrain places immense structural stress on the planetary wheel motors and the header lift frameworks. When a primary conditioning roll bearing shatters or the main ground-drive pumps lose their mechanical efficiency, generic repairs will not suffice. The John Deere 3430 and 3830 Self-Propelled Windrowers Technical Service Manual (TM1314) is the mandatory factory blueprint required to physically dismantle, inspect, and reconstruct these dedicated swathers.

Available directly from manualsmarket.com, this highly specific mechanical archive equips your farm maintenance team or independent repair shop with the exact hardware extraction sequences, safe lifting capacities, and structural tolerances dictated by the original engineers. Rebuilding your windrower to these strict OEM specifications guarantees a clean cut, proper crop crimping, and maximum uptime during the short haymaking windows.

---

Mechanical Restoration Modules

This technical service guide completely bypasses electrical diagnostics and fluid flow testing, dedicating its contents entirely to the heavy physical wrenching and structural teardowns necessary for self-propelled hay equipment.

Header & Conditioner Iron: Safely manage the extreme weight of the cutting platform. The manual provides the precise factory methods for disconnecting the header lift cylinders, extracting the heavy conditioning (crimping) rolls, and overhauling the high-speed mechanical drives that power the sickle bar and platform auger.

Hydrostatic Propulsion Hardware: Navigate the extraction of the main hydrostatic propel system. Discover the heavy wrenching steps required to safely unbolt and remove the primary hydraulic drive pumps, rebuild the planetary wheel motors, and service the primary ground-drive hubs.

Rear Caster & Steering Architecture: Maintain field stability and precise maneuvering. Execute deep physical teardowns of the heavy-duty rear caster wheel assemblies, replace the steering pivot bearings, and structurally align the walking beam tail-wheel frameworks.

Operator Platform & Engine Hoisting: Secure the machine's primary diesel power plant. Follow strict safety protocols to drain the massive industrial cooling networks, attach specialized lifting brackets, and hoist the heavy engine block cleanly away from the windrower chassis for independent bench servicing.

Windrower Technician Q&A: TM1314 Directives

Q: Will this manual provide the wiring schematics to fix the cab control console?
A: Absolutely not. All electrical schematics, gauge wiring, and circuit fault tracing are exclusively documented in the companion Diagnostic, Operation, and Test manual. This TM1314 publication handles physical hardware replacement, mechanical teardowns, and iron reassembly exclusively.

Q: Are specific tightening torques provided for the conditioner rolls?
A: Yes. Because the heavy crimper rolls operate at high speeds to crush the hay stems, mandatory torque tightening charts are provided for all rotating hardware and bearing housings to prevent severe vibration and equipment damage.

Q: Does this file cover rebuilding the internal components of the diesel engine?
A: While this document details exactly how to physically unbolt, rig, and extract the complete engine assembly from the swather chassis, deep internal diesel block repairs (such as replacing crankshafts) require the separate Component Technical Manual (CTM) authored specifically for that engine.

Equipment Blueprint Parameters

Supported Machinery:

John Deere 3430 and 3830

Machine Classification:

Self-Propelled Windrowers (Swathers)

Primary Application:

Hay and Forage Harvesting

Service Discipline:

Technical Service (Mechanical Teardown, Hardware Reconstruction)

Official Document Code:

TM1314
