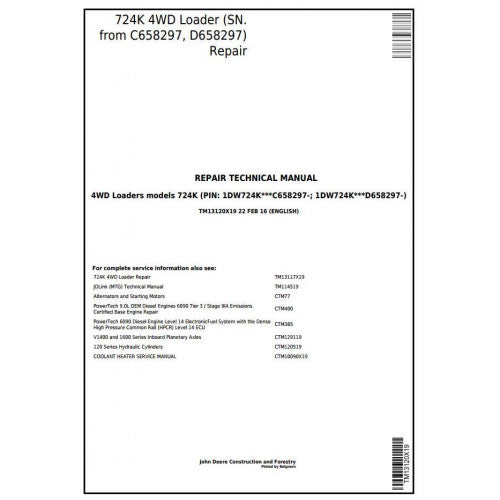

TM13120X19 John Deere 724K 4WD Loader Pdf Repair Service Technical Manual

Tackle Severe Structural Breakdowns: JD 724K Hardware Restoration

The John Deere 724K wheel loader is engineered to endure brutal operating conditions, frequently tasked with continuous stockpiling, harsh aggregate handling, and severe commercial snow removal. Over thousands of hours of plunging into dense material, the physical toll on the machine's forward structural iron and heavy drivetrains is unavoidable. When a massive component fails—such as a heavily worn center oscillation joint or a shattered planetary gear on machines built from serial numbers C658297 and D658297 onward—applying improvised repair tactics is a guaranteed path to repeat failures. The John Deere 724K Repair Service Technical Manual (TM13120X19) provides your heavy-line mechanics with the exact, problem-solving extraction methods and dimensional tolerances necessary to cure catastrophic hardware fatigue directly on your own shop floor.

[Image of a wheel loader Z-bar linkage and bucket pins disassembly]

Ready for immediate digital integration into your service department, this structural blueprint stops the financial hemorrhage associated with outsourcing heavy iron repairs. It equips your team to overcome extended downtime by executing complex physical rebuilds independently, utilizing the exact mechanical parameters mandated by the manufacturer.

Targeted Solutions for Deep Mechanical Wear

Shift your maintenance strategy from surface-level preventative care to advanced component rehabilitation. This manual deliberately bypasses electrical network testing to focus entirely on the precise disassembly and reconstruction of the 724K's massive assemblies:

• Powertrain Rehabilitation: Resolve harsh mechanical slipping by safely removing and dismantling the main transmission. The guide dictates the required clutch pack stack-up clearances, shaft end-play measurements, and heavy bearing preloads necessary to restore optimal power transfer to the wheels.
• Drive Axle & Differential Overhaul: Rectify failing final drives without absorbing exorbitant dealership markups. Access the mandatory shim calculations, pinion depth settings, and gear backlash limits required to properly reconstruct the front and rear axles.
• Z-Bar & Boom Integrity: Cure hazardous bucket drift during heavy material lifts. Utilize factory heavy-pressing protocols and strict wear thresholds to replace fatigued boom linkage pins, forward lift arms, and heavily stressed bucket bushings safely.
• Hydraulic Hardware Resealing: Stop chronic fluid weeping at the source. Safely tear down the massive lift, tilt, and steering cylinders, applying the exact tightening sequences to the enormous piston retaining nuts for permanent, high-pressure fluid containment.
• Articulation Pivot Restoration: Eliminate dangerous steering wander on the job site. Extract compromised center pivot hardware and press in fresh oscillation frame bearings utilizing authorized torque metrics to restore perfect straight-line chassis stability under payload.

TM13120X19 Technical Document Profile

Equipment Specifications	Mechanical Archive Details
Target Machinery	John Deere 724K 4WD Loader
Applicable Production Run	Valid from SN. C658297 and D658297
Official Reference ID	TM13120X19
Maintenance Application	Physical Hardware Teardown & Assembly
Format Architecture	Searchable Digital PDF Document

Who Overcomes Breakdowns With This Blueprint?

• Heavy Equipment Field Mechanics: Keep your primary earthmovers pushing material by performing major mechanical pin and bushing replacements right in the dirt before a complete structural joint failure occurs.
• Commercial Snow & Ice Fleets: Address severe driveline wear on your primary plowing equipment during the off-season, ensuring absolute mechanical reliability when winter storms hit.
• Independent Diesel Specialists: Take on highly profitable, complex drivetrain teardowns knowing you possess the precise structural tolerances required for this specific JD manufacturing run right at your workbench.

Hardware Rebuild Inquiries

Does this file contain electrical schematic maps for the cab?

No. Diagnostic Trouble Codes (DTCs), sensor logic testing, and schematic wiring networks belong exclusively to the companion Diagnostic, Operation, and Test manual. This specific publication focuses entirely on physical, wrenches-on-iron hardware teardowns and structural reassembly.

Will this guide walk my team through an internal diesel block repair?

This reference details the safe mechanical disconnection and heavy hoisting steps required to pull the entire diesel engine assembly from the loader frame. Deep internal restorations—such as installing new pistons, cylinder liners, or a crankshaft—demand a separate Component Technical Manual authored specifically for the power plant.

Are the procedures valid for my exact 724K build?

Yes. The physical extraction protocols, hardware configurations, and mechanical repair specifications contained within are mapped explicitly for the 724K platforms manufactured starting from serial numbers C658297 and D658297.

Can we print the planetary diagrams for the service bay?

Absolutely. The digital PDF format empowers your mechanics to print out specific exploded hardware views and torque charts, keeping the exact numerical data on the toolbox without exposing a laptop to heavy grease and shop fluids.

Secure Your Heavy Iron Reliability

Do not allow a failing planetary gear or worn boom hardware to cripple your daily material output. Secure the John Deere 724K Repair Manual TM13120X19 today and equip your facility with the uncompromised mechanical data required to completely restore your wheel loader.
