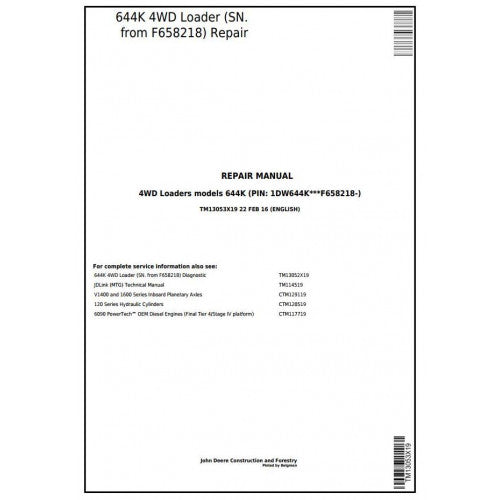

TM13053X19 John Deere 644K 4WD Loader Pdf Repair Service Technical Manual

Protect Your Project Margins: JD 644K Mechanical Overhauls

When your John Deere 644K wheel loader—the absolute workhorse of your site grading or batch plant operation—suffers a catastrophic physical breakdown, the financial bleed is immediate. For heavy-duty units originating from the F658218 manufacturing block, a shattered planetary drive or severely fatigued boom linkage means your primary material handler is parked. Transporting this massive earthmover to an external dealership for structural reconstruction annihilates your project timeline and burns through your operating budget. The John Deere 644K Repair Service Technical Manual (TM13053X19) is your definitive strategy against exorbitant outsourced labor. It hands your internal maintenance crew the exact OEM extraction methods and dimensional tolerances required to independently execute complex physical rebuilds directly in your own yard.

Instantly available for secure deployment, this authoritative structural blueprint stops the financial hemorrhage of heavy iron downtime. It empowers your facility to reclaim control over your equipment availability by mastering deep-tier hardware restorations internally.

Capitalize on In-House Repair Capabilities

Take direct control over your equipment uptime. This publication shifts your maintenance strategy away from external dependency, detailing the exact extraction protocols, heavy pressing methods, and reassembly sequences for the 644K's foundational iron:

• Profitable Powertrain Recoveries: Disassemble the primary transmission with absolute confidence. The guide dictates the exact clutch pack stack-ups, shaft end-play measurements, and heavy bearing preloads essential for returning the gearbox to peak torque delivery without absorbing dealer markups.
• Independent Axle & Differential Overhauls: Halt the expense of outsourced final drive repairs. Access the mandatory shim calculations, pinion depth settings, and gear backlash limits needed to accurately reconstruct the front and rear inboard planetary systems.
• Linkage & Z-Bar Renewal: Eradicate dangerous bucket slop that slows down your truck-loading cycles. Utilize factory-approved heavy-pressing protocols and strict wear thresholds to replace fatigued boom pivot pins, forward lift arms, and reinforced bucket bushings safely.
• Hydraulic Hardware Rehabilitation: End the costly cycle of continuous fluid loss. Tear down the massive lift, tilt, and steering cylinders, applying exact tightening sequences to the enormous piston retaining nuts for a permanent, high-pressure seal.
• Articulation Joint Servicing: Eliminate hazardous chassis wander during high-speed load-and-carry tasks. Extract compromised center pivot hardware and install fresh oscillation frame bearings utilizing authorized torque metrics to restore perfect straight-line tracking.

TM13053X19 Technical Archive Profile

Asset Designation	Mechanical Document Parameters
Target Machinery	John Deere 644K 4WD Loader
Applicable Manufacturing Block	Valid from SN. F658218
OEM Document ID	TM13053X19
Maintenance Focus	Physical Hardware Teardown & Reassembly
File Architecture	Searchable Digital PDF Document

Who Defends Their Operational Budget With This Guide?

• Heavy Civil Contractors: Protect daily grading quotas by executing complex drivetrain rebuilds internally before a failing component stalls the entire earthmoving crew.
• Aggregate Plant Managers: Guarantee primary hopper-loading equipment is mechanically sound by performing major pin and bushing replacements in-house during scheduled maintenance windows.
• Heavy-Duty Diesel Mechanics: Expand service offerings and revenue by confidently tackling lucrative heavy iron teardowns equipped with the exact physical tolerances for this specific John Deere production run.

Heavy Hardware Rebuild Inquiries

Will this text help my technicians clear a flashing dashboard error?

No. Diagnostic Trouble Codes (DTCs), sensor logic testing, and schematic wiring networks are entirely excluded from this mechanical guide. Those procedures belong exclusively in the companion Diagnostic, Operation, and Test manual. This specific publication focuses strictly on physical, wrenches-on-iron structural repairs.

Can we utilize this file to perform a deep internal engine overhaul?

This reference provides the necessary heavy hoisting steps and mechanical disconnection procedures to safely separate the diesel power plant from the loader's chassis. Deep internal block restorations—such as installing new pistons or crankshaft bearings—demand a separate Component Technical Manual tailored to that specific engine.

Are these mechanical tolerances correct for my late-model 644K?

Yes. The hardware extraction protocols, structural configurations, and mechanical repair specifications contained within are explicitly mapped for 644K platforms manufactured starting from the F658218 serial block.

Is the digital file formatted so my mechanics can print torque charts for the shop floor?

Absolutely. The digital PDF structure allows your service staff to print out specific exploded hardware diagrams and torque tables. This puts the exact numerical data right at the workbench, keeping expensive devices safe from heavy grease and shop fluids.

Command Your Fleet's Profitability

Do not let a failing planetary gear or heavily worn boom hardware dictate your project timeline. Secure the John Deere 644K Repair Manual TM13053X19 today and arm your maintenance facility with the uncompromised mechanical data required to restore your heavy wheel loader.
