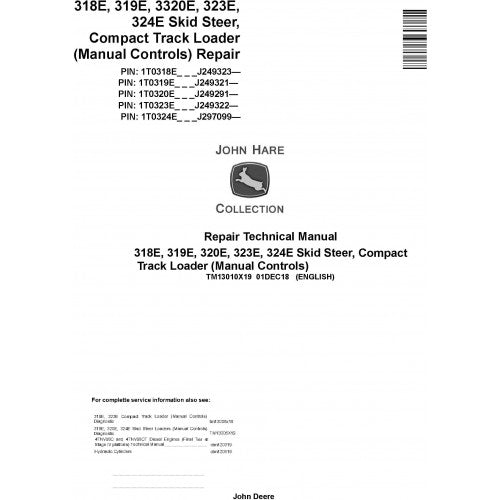

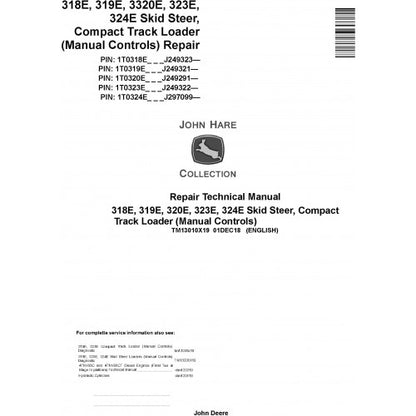

TM13010X19 John Deere 318E, 319E, 320E, 323E, 324E Compact Loader Pdf Repair Service Technical Manual

Hands-On Heavy Duty Maintenance: John Deere 318E to 324E Manual Control Loaders

The John Deere E-Series lineup—specifically the 318E, 319E, 320E, 323E, and 324E models—when outfitted with traditional manual hand and foot controls, offers an uncompromised, direct feel of the cutting edge. This configuration utilizes a highly tangible arrangement of mechanical rods, bell cranks, and steering cables that directly translate the operator's physical movements into immediate hydraulic action. Over thousands of hours grading topsoil or moving heavy pallets, these physical control paths inevitably stretch, while the heavy lower frames bear the intense friction of the payload. Whether you need to eliminate slop in the steering levers or completely rebuild a tracked undercarriage, the John Deere 318E, 319E, 320E, 323E, 324E (Manual Controls) Repair Service Technical Manual (TM13010X19) is your definitive structural blueprint.

Delivered as a readily accessible PDF via Manualsmarket.com, this manufacturer-direct publication equips your mechanics with the exact torque tolerances, hardware assembly orders, and sequential disassembly instructions necessary to restore the raw, analog precision of these five distinct machines.

TM13010X19 Documentation Matrix

Publication Category	Machinery Scope
Supported Fleet	Wheeled: 318E, 320E, 324E | Tracked: 319E, 323E
Control Architecture	Strictly Manual Linkage (Hand/Foot Controls)
OEM Publication Code	TM13010X19
Literature Objective	Hardware Teardown, Component Installation, Linkage Repair
Format	Searchable Digital PDF

Targeted Structural & Linkage Reconstruction

This technical guide is engineered to address the specific physical wear points of both the wheeled and tracked E-Series variants, focusing heavily on the mechanical linkage networks unique to this control setup.

• Analog Linkage Calibration: Comprehensive procedures for extracting worn steering cables, replacing deteriorated bushings within the foot pedal assemblies, and setting the precise mechanical throw required to engage the hydraulic spool valves smoothly.
• Wheeled Axle & Chain Maintenance (318E, 320E, 324E): Exact physical sequences for opening the side chain cases, measuring drive chain deflection against factory limits, and pressing heavy-duty axle bearings and seals into the wheel hubs.
• CTL Undercarriage Teardowns (319E, 323E): Manufacturer-approved techniques to safely compress the grease tensioners, remove heavy rubber tracks, and physically swap out fatigued bottom rollers, front idlers, and planetary drive gearboxes.
• Core Powerplant & Fluid Drive Extraction: Detailed steps for unbolting the primary hydrostatic tandem pumps from the belly pan, dismantling the boom cylinders for internal seal replacement, and hoisting the diesel engine completely out of the rear chassis.

Who Should Keep This Reference on the Workbench?

• Traditional Earthmoving Contractors: Preserve the snappy, tactile response of your manual-control grading fleet by executing your own cable adjustments and linkage rebuilds in-house.
• Mixed-Fleet Heavy Iron Shops: Service an entire spectrum of mid-frame John Deere machines—from the wheeled 318E to the tracked 323E—using a single, unified hardware manual.
• Agriculture & Feedlot Operators: Tackle extensive chain case overhauls and steering adjustments right in your own barn to keep your essential daily chore loaders in peak working condition.

Workshop Floor Inquiries for the 318E-324E Fleet

Will this file show me how to eliminate the dead zone in my 324E foot pedals?

Yes. The manual covers the complete physical teardown and adjustment of the foot linkages, allowing you to replace worn bell cranks and adjust the rod lengths to restore immediate spool valve engagement.

Can I use this guide to replace the rubber tracks on the 319E?

Absolutely. The undercarriage chapters provide the precise mechanical steps required to relieve the track tensioners safely, pull the old track, and maneuver the new rubber track over the undercarriage components.

Does it cover the procedure for extracting the hydrostatic drive motors?

Yes, it walks you through the mechanical extraction of the drive motors from both the wheeled chain cases (318E/320E/324E) and the tracked undercarriage frames (319E/323E).

Are chain sag measurements provided for the wheeled units?

Yes, the manual contains the exact factory deflection measurements and the physical adjustments needed for the drive chain tensioner sprockets inside the side cases.

Fortify Your Maintenance Capabilities

Take the uncertainty out of complex linkage adjustments and heavy undercarriage rebuilding. Download the John Deere 318E, 319E, 320E, 323E, 324E (Manual Controls) Repair Technical Manual TM13010X19 today and secure the exact structural blueprints required to overhaul your traditional equipment.
