TM12930 John Deere 344K iT4 4WD Loader Pdf Repair Service Technical Manual

Conquer Complex Hardware Failures: JD 344K (iT4) Teardowns

The John Deere 344K wheel loader is a uniquely sized asset, bridging the gap between compact agility and mid-tier pushing capability. It thrives in tight agricultural feedlots, bustling landscaping supply centers, and congested municipal zones. However, the densely integrated mechanical architecture of these interim Tier 4 (iT4) models—specifically units originating from serial number B030077 and up—presents a massive challenge when deep structural fatigue sets in. Attempting to improvise a repair on a leaking hydrostatic motor or a fractured articulation bearing often results in catastrophic secondary damage and spiraling labor costs. The John Deere 344K (iT4) Repair Service Technical Manual (TM12930) is the ultimate problem-solving blueprint, delivering the exact factory-mandated extraction methods required to resolve profound hardware anomalies safely and efficiently within your own service bay.

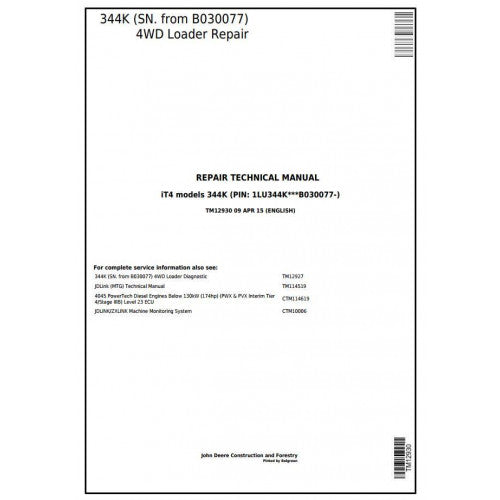

[Image of John Deere 344K loader hydrostatic drive components and axle assembly]

Available for secure, instant digital deployment, this structural reference neutralizes the overwhelming expense of outsourcing heavy iron repairs. It arms your in-house technicians with the specific physical tolerances and disassembly sequences necessary to permanently cure severe mechanical breakdowns.

Targeted Solutions for Mid-Size Equipment Wear

Shift your workshop focus from basic fluid maintenance to advanced, wrenches-on-iron rehabilitation. This guide completely bypasses electrical testing to provide authoritative solutions for the 344K's foundational physical assemblies:

• Hydrostatic Drive Rehabilitation: Overcome severe losses in rim pull. The manual outlines the required heavy-lifting sequences to safely remove the hydrostatic pumps and motors, detailing the strict internal clearances and shaft alignments necessary for a successful overhaul without relying on a dealership.
• Axle & Final Drive Reconstruction: Resolve grinding drivetrain noise internally. Obtain the critical shim measurements, pinion backlash dimensions, and bearing preloads mandated to meticulously rebuild the front and rear axles.
• Z-Bar Linkage Replacements: Eradicate dangerous bucket drift that threatens safety during pallet unloading. Utilize specialized heavy-pressing procedures and precise factory wear limits to safely swap out fatigued pivot pins, boom arms, and heavy-duty bucket bushings.
• High-Pressure Cylinder Resealing: Stop the continuous, expensive loss of hydraulic fluid. Access the mandated tightening sequences for the massive piston head retaining nuts, guaranteeing a permanent seal within the steering, lift, and tilt cylinders.
• Chassis Pivot Alignment: Correct hazardous steering wander. Extract compromised center-joint hardware and press in fresh oscillation bearings using approved manufacturer torque metrics to restore perfect tracking stability in confined spaces.

TM12930 Technical Document Profile

Machine Specifications	Mechanical Archive Details
Asset Classification	John Deere 344K 4WD Loader
Emissions Architecture	Interim Tier 4 (iT4)
Applicable Production Run	Valid for SN. B030077 and above
Document Code	TM12930
Maintenance Focus	Physical Hardware Teardown & Mechanical Reassembly
File Architecture	Searchable Digital PDF Archive

Who Overcomes Maintenance Hurdles With This Guide?

• Landscaping Supply Mechanics: Keep your essential material handlers moving heavy stone and mulch by executing massive linkage and planetary rebuilds directly in your own yard.
• Municipal Fleet Technicians: Address severe structural wear on your primary road-clearing equipment internally, bypassing the massive delays associated with dealership backlogs.
• Independent Heavy Repair Centers: Confidently accept lucrative, mid-sized wheel loader teardowns knowing you possess the exact physical tolerances required for this specific JD production block.

Structural Teardown FAQ

Does this file contain the troubleshooting steps for CAN bus communication failures?

No. Identifying active Diagnostic Trouble Codes (DTCs), locating electrical ground faults, and testing sensor logic belong entirely in the companion Diagnostic, Operation, and Test manual. This specific TM12930 text focuses exclusively on wrenches-on-iron structural repairs and heavy component reassembly.

Can my mechanics use this to completely rebuild the iT4 diesel block?

This reference details the safe hoisting methods and mechanical disconnection sequences necessary to pull the entire power plant from the loader frame. Deep internal block restorations—such as fitting new pistons, cylinder liners, or a crankshaft—demand a separate Component Technical Manual tailored to that specific engine.

Are these mechanical dimensions accurate for the older J-series loaders?

No. The heavy extraction methods, hardware configurations, and mechanical repair specifications documented here are mapped specifically for the 344K (iT4) models built from serial number B030077 onward.

Is the PDF layout suitable for printing torque charts for the workbench?

Absolutely. The digital format allows your heavy-line mechanics to print precise fastening charts and exploded hardware views. This ensures the exact numerical data is at the toolbox, protecting your digital devices from heavy shop grease.

Conquer Equipment Failure

Do not allow a failing hydrostatic assembly or severely worn articulation hardware to paralyze your material handling workflow. Secure the John Deere 344K (iT4) Repair Manual TM12930 today and arm your heavy repair bay with the uncompromised mechanical data required to restore your loader to factory standards.
