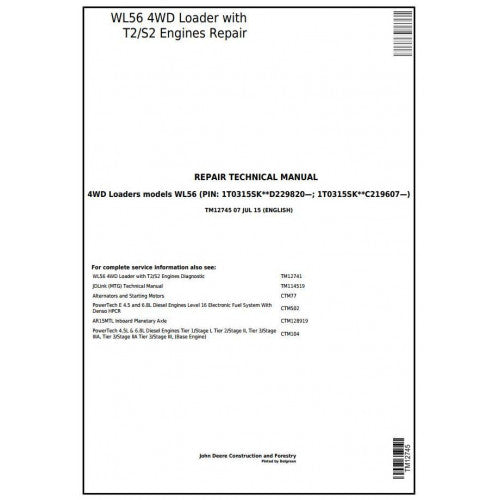

TM12745 John Deere WL56 4WD Loader Pdf Repair Service Technical Manual

Safeguard Your Operating Capital: JD WL56 Mechanical Overhauls

The John Deere WL56 4WD loader is a high-volume workhorse, specifically utilized for moving massive quantities of bulk materials, heavy aggregate, and extensive agricultural feed. When a catastrophic physical failure brings this primary mover to a halt, the financial impact on your daily quotas is immediate and severe. Transporting this heavy earthmover to a commercial dealership for a major transmission rebuild or a complex boom pin extraction aggressively inflates your maintenance budget and extends your equipment downtime indefinitely. The John Deere WL56 Repair Service Technical Manual (TM12745) acts as your primary defense against lost productivity. It supplies your internal service team with the exact manufacturer blueprints required to execute deep, wrenches-on-iron mechanical reconstructions right on your own job site.

Available for rapid digital deployment, this structural reference completely neutralizes the financial hemorrhage associated with outsourced heavy iron repairs. It empowers your facility to reclaim control over your maintenance calendar by mastering deep-tier hardware restorations in-house.

Capitalize on Internal Repair Autonomy

Reclaim direct control over your equipment availability. This publication shifts your fleet strategy away from external dependency, detailing the precise extraction protocols, heavy pressing methodologies, and physical reassembly sequences for the WL56's foundational architecture:

• Profitable Drivetrain Recoveries: Disassemble the main transmission securely. The guide dictates the necessary clutch pack stack-up clearances, internal shaft end-play measurements, and heavy bearing preloads essential for returning the gearbox to maximum torque delivery without absorbing dealer markups.
• Independent Axle & Differential Servicing: Halt the soaring expenses of outsourced final drive repairs. Access the mandatory shim calculations, pinion depth settings, and gear backlash limits needed to accurately reconstruct the front and rear inboard planetary systems on your shop floor.
• Linkage & Z-Bar Renewal: Eradicate hazardous bucket slop that extends your truck-loading cycles. Utilize factory-approved heavy-pressing protocols and strict wear thresholds to replace fatigued boom pivot pins, forward lift arms, and reinforced bucket bushings safely.
• Hydraulic Hardware Rehabilitation: End the costly cycle of continuous fluid weeping. Safely tear down the massive lift, bucket tilt, and steering cylinders, applying the exact tightening sequences to the enormous piston retaining nuts to guarantee a permanent, high-pressure seal.
• Articulation Joint Recovery: Eliminate dangerous chassis wander during rapid load-and-carry tasks. Extract heavily compromised center pivot hardware and install fresh oscillation frame bearings utilizing authorized torque metrics to restore perfect straight-line tracking.

TM12745 Technical Archive Profile

Asset Designation	Mechanical Document Parameters
Target Machinery	John Deere WL56 4WD Loader
OEM Document ID	TM12745
Maintenance Focus	Physical Hardware Teardown & Reassembly
File Architecture	Searchable Digital PDF Document

Who Defends Their Fleet Budget With This Guide?

• Bulk Material Handlers: Protect your daily loading quotas by executing complex drivetrain rebuilds internally before a failing component completely stalls your material processing plant.
• Large-Scale Agricultural Fleets: Guarantee your primary feed loaders are mechanically sound by performing major pin and bushing replacements directly in the barn during scheduled maintenance windows.
• Heavy Construction Firms: Expand your internal service autonomy by confidently tackling lucrative heavy iron teardowns, equipped with the exact physical tolerances for this specific John Deere loader platform.

Heavy Hardware Rebuild Inquiries

Will this text help my technicians clear a flashing electronic dashboard error?

No. Diagnostic Trouble Codes (DTCs), sensor logic testing, and schematic wiring networks are entirely excluded from this mechanical blueprint. Those analytical procedures belong exclusively in the companion Diagnostic, Operation, and Test manual. This specific publication focuses strictly on physical, structural repairs.

Can we utilize this file to perform a deep internal rebuild of the diesel powerplant?

This reference provides the necessary heavy hoisting steps and mechanical disconnection procedures to safely separate the diesel engine from the loader's heavy chassis. However, deep internal block restorations—such as installing new pistons, cylinder liners, or crankshaft main bearings—demand a separate Component Technical Manual tailored directly to that specific engine.

Is the digital file formatted so my mechanics can print torque charts for the shop floor?

Absolutely. The digital PDF structure allows your service staff to print out specific exploded hardware diagrams and fastening tables. This places the exact numerical data right at the workbench, keeping your expensive digital devices safe from thick grease and shop fluids.

Command Your Fleet's Profitability

Do not let a failing planetary gear or heavily worn boom hardware dictate your project timeline. Secure the John Deere WL56 Repair Manual TM12745 today and arm your maintenance facility with the uncompromised mechanical data required to restore your heavy wheel loader to peak operating condition.
