TM12707 John Deere 644K Hybrid 4WD Loader Pdf Diagnostic, Operation and Test Service Manual

Demystify Complex Electric-Drive Failures: JD 644K Hybrid Troubleshooting

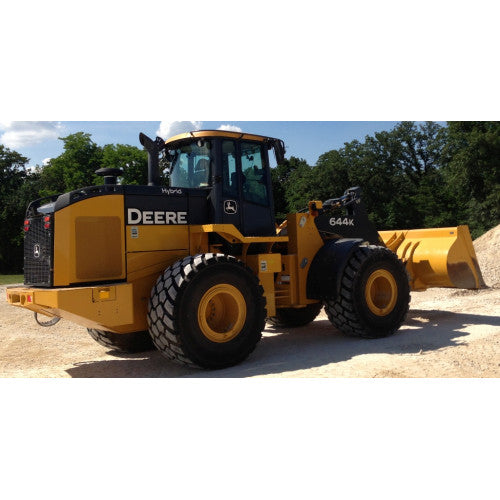

The John Deere 644K Hybrid wheel loader represents a significant leap in earthmoving technology, blending traditional heavy iron with a highly advanced, fuel-saving electric-drive transmission. This machine is typically deployed in relentless environments like commercial quarries and major infrastructure development. However, when a sudden high-voltage inverter fault or an elusive CAN bus communication error paralyzes the loader, the resulting downtime is incredibly costly. For units originating from the E651322 manufacturing sequence, attempting to apply standard diesel-mechanical troubleshooting habits to a sophisticated hybrid network is both dangerous and financially irresponsible. The John Deere 644K Hybrid Diagnostic, Operation and Test Service Manual (TM12707) is your definitive problem-solving asset, delivering the exact, manufacturer-authored analytical flowcharts required to safely trace electrical and fluid power faults straight to their root cause.

Ready for secure, immediate digital deployment, this highly specialized testing framework eliminates the frustration of diagnostic guesswork on advanced platforms. It equips your internal service electricians and heavy-line technicians with the precise OEM data needed to revive your primary hybrid material handler rapidly, completely bypassing the need for an external dealership to decode the machine's embedded logic.

Targeted Problem-Solving: High-Voltage & Fluid Networks

This technical archive shifts your workshop strategy from physical trial-and-error to clinical, data-driven system evaluation. It deliberately omits wrenches-on-iron hardware teardowns to concentrate exclusively on isolating failures within the loader's interconnected control modules, electric drive components, and high-capacity hydraulic pathways:

• Translating Hybrid DTCs: Stop scratching your head over mysterious cab warnings. Access the exhaustive factory directory of Diagnostic Trouble Codes to pinpoint the exact failing high-voltage sensor or inverter variable, followed by the mandated logical sequence to clear the fault safely.

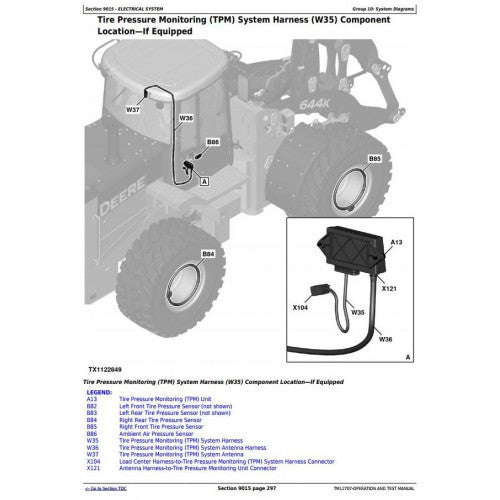

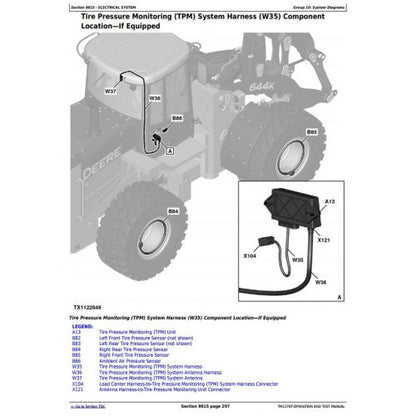

• Navigating Specialized Schematics: Trace elusive parasitic voltage drains and identify compromised harness pins hidden within the electric-drive architecture. Utilize highly accurate, machine-specific wiring diagrams engineered exactly for this hybrid chassis and its advanced cab interfaces.
• Implement Flow Benchmarking: Attach your testing equipment directly to authorized factory ports. Validate the primary implement pump output and verify priority steering pressures to definitively resolve weak bucket breakout forces during heavy aggregate stockpiling.
• Electric-Drive Logic Interrogation: Verify the continuous digital handshake between the hybrid control modules, the main generator, and the electric wheel motors to systematically eliminate jerky directional transitions or a sudden loss of rim pull.
• Pre-Operation Safety Calibrations: Execute strict operational performance evaluations on the braking accumulators, neutral-start interlocks, and specific hybrid-discharge parameters before returning the earthmover to an active quarry zone.

TM12707 Technical Archive Profile

Equipment Specifications	Diagnostic Document Parameters
Target Asset Classification	John Deere 644K Hybrid 4WD Loader
Applicable Manufacturing Era	Valid from SN. E651322 and up
Official Publication ID	TM12707
Core Analytical Focus	Hybrid DTC Analytics, High-Voltage Maps, Fluid Testing
Format Architecture	Searchable Digital PDF Document

Who Overcomes Maintenance Hurdles With This Blueprint?

• Quarry & Aggregate Diagnosticians: Prevent costly crushing-plant shutdowns by rapidly diagnosing complex electric-drive faults on your primary face-loading equipment directly in the pit.
• Infrastructure Fleet Electricians: Keep your essential hybrid earthmovers moving heavy materials by safely tracing elusive CAN bus and inverter communication errors independently.
• Mobile Heavy Equipment Technicians: Maximize your field service efficiency by arriving at the job site armed with the precise diagnostic flowcharts and safety protocols needed to evaluate this specialized John Deere platform.

Hybrid Troubleshooting FAQ

Does this manual explain how to mechanically reconstruct the electric wheel motors?

No. Physical hardware extraction, planetary gear teardowns, and mechanical reconstruction of the hybrid drivetrain are completely excluded from this file. Those heavy wrenches-on-iron procedures belong exclusively in the companion Service Repair Technical Manual. This TM12707 document focuses strictly on testing electronic logic, tracing wiring diagrams, and reading fluid pressures.

Are the high-voltage electrical schematics included in this download?

Yes. As the official Diagnostic, Operation, and Test manual, this file contains the comprehensive schematic wiring diagrams necessary to trace both standard 24V circuits and the specialized high-voltage networks across the entire hybrid loader chassis.

Will this guide walk my team through an internal diesel block repair?

This reference details the diagnostic testing parameters for engine-mounted electronic sensors that communicate with the loader's main hybrid control unit. However, deep internal mechanical repairs and evaluations for the diesel powerplant require a dedicated Component Technical Manual authored specifically for that engine platform.

Can my technicians search for a specific inverter code easily on a tough-book?

Absolutely. The digital PDF architecture is fully indexed. A field mechanic can simply type the exact dashboard fault code into the search function to instantly locate the correct troubleshooting flowchart, saving hours of manual page-turning in a complex diagnostic scenario.

Eradicate Hybrid System Downtime

Do not let a severed communication wire or a failing hydraulic pressure switch dictate your daily material output. Download the John Deere 644K Hybrid Diagnostic Manual TM12707 today and equip your service bays with the uncompromised analytical data needed to conquer complex system failures safely.
