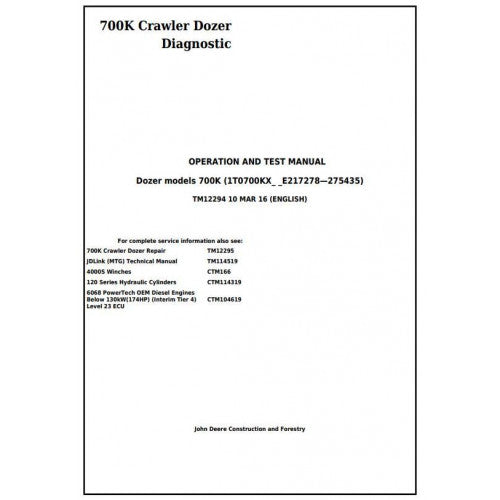

TM12294 John Deere 700K Crawler Dozer Pdf Diagnostic, Operation and Test Service Manual

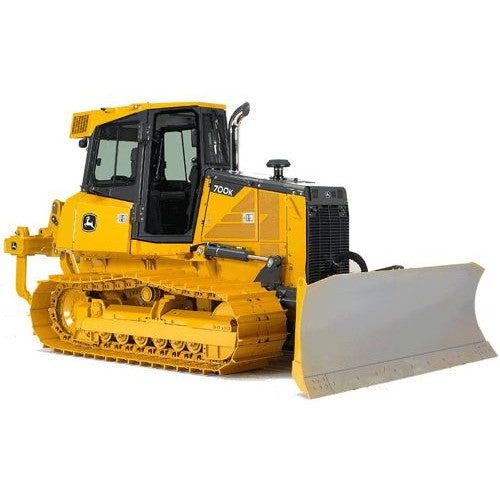

John Deere 700K Crawler Dozer (S.N. 217278-275435) Diagnostic & Operation Manual

When a sudden electrical fault or hydraulic pressure loss paralyzes your mid-sized earthmover, you cannot afford hours of guesswork. To restore grading operations immediately, technicians require the exact John Deere 700K manual type engineered specifically for advanced electronic and hydraulic troubleshooting. Dedicated exclusively to machines in the serial range 217278 through 275435, this TM12294 PDF download delivers the authentic factory OEM manual straight to your device. We provide this critical operation and test guide as a fully searchable PDF, empowering your field mechanics to instantly trace CAN-bus wiring, decode Diagnostic Trouble Codes (DTCs), and execute precise hydrostatic calibrations right from the job site. Minimize your downtime and conquer complex digital failures with confidence.

TM12294 Diagnostics & Machine Specifications

• Supported Machinery: John Deere 700K Crawler Dozer
• Applicable Serial Bracket: 217278 – 275435
• Official Manufacturer ID: TM12294
• Manual Classification: Diagnostic, Operation and Test Service Manual
• Primary Functionality: Electrical Wire Tracing, Error Code (DTC) Resolution, Hydraulic Benchmarking, Drive Calibration
• Delivery Format: Instant Digital Download (High-Resolution, Bookmarked PDF)
• Device Compatibility: Windows, Mac, iOS, Android (Fully Printable)

Decoding the 700K's Digital Nervous System

The 700K utilizes a highly integrated network of electronic control units to balance the 6.8L PowerTech engine's output with the dual-path hydrostatic drive. When these computerized systems experience a communication failure, physical wrenches cannot solve the problem. This TM12294 digital blueprint translates abstract dashboard warnings into rigorous, mathematical testing protocols.

Error Codes (DTCs) and Controller Logic Trees

A warning light on the monitor is just the beginning of the diagnostic journey. This guide delivers the comprehensive master directory of all Engine Control Unit (ECU) and Transmission Control Unit (TCU) error codes specifically mapped to this mid-block 700K series. It equips your mechanics with strict diagnostic logic paths, detailing the exact sensor voltage parameters, resistance checks, and testing sequences required to prove whether a code stems from a dead sensor, a software glitch, or a damaged harness.

Electrical Architecture & Wire Tracing

Hunting down an open circuit across a heavily armored machine is a massive drain on labor hours without an accurate architectural map. This diagnostic publication provides the definitive electrical roadmap. It features vibrant, full-system wiring diagrams, highly detailed connector end-views, and precise chassis ground location charts. Your electricians can safely probe the CAN-bus network using a multimeter, rapidly isolating damaged harnesses without shorting out expensive primary control modules.

Hydrostatic Transmission Tuning

The 700K's agility relies entirely on its hydrostatic drive. If the dozer begins to drift sideways under a heavy blade load, or exhibits sluggish counter-rotation, the transmission requires electronic synchronization. The manual reveals the secure monitor access codes needed to enter technician mode. From there, it instructs you on how to execute the automated hydrostatic pump calibration, establishing fresh neutral and maximum displacement parameters for perfectly balanced track speeds.

Hydraulic Flow Verification & Pressure Baselines

Before committing to unbolting a suspect hydraulic pump, you must mathematically verify its internal failure. The Operational Checkout section maps the precise physical locations and thread sizes of all diagnostic test ports across the dozer's chassis. By comparing your gauge readings against the provided OEM target PSI baselines for charge circuits, high-pressure drive loops, and main relief valves, you can definitively isolate a mechanical leak from an electronic proportional valve failure.

Critical Coverage Boundary: Diagnostics vs. Wrenching

In strict adherence to John Deere’s technical publishing standards, this specific document focuses entirely on the dozer's electronic logic, software testing, and hydraulic diagnostics. It does NOT contain structural teardown or hard-iron repair instructions. If your maintenance schedule requires the physical extraction of the engine, the splitting of track chains, or the mechanical overhaul of the planetary final drives, you must procure the companion mechanical Service Repair Technical Manual (TM12295).

Equip Your Field Techs at Manualsmarket.com

Utilizing generic testing baselines or outdated software calibration sequences on a serial-specific 700K can severely damage sensitive control modules. At Manualsmarket.com, we guarantee the delivery of the verified, manufacturer-direct TM12294 PDF. Protect your earthmoving assets by arming your field mechanics with the exact, authentic testing parameters they need to diagnose failures correctly the first time.

Frequently Asked Diagnostic Questions (TM12294)

Does this manual cover the specific 217278-275435 serial block?

Yes. This TM12294 publication is the exact engineering update created to cover the advanced electrical and hydraulic architecture of 700K dozers built exclusively within the 217278 to 275435 serial number range.

Will this guide help me test the PAT blade joystick?

Absolutely. You will find the precise resistance and voltage output specifications necessary to verify that the cab's electro-hydraulic pilot joysticks are communicating accurately and without interruption to the implement control valves.

Are physical hydraulic pump replacement instructions included here?

No. Physical component extraction and mechanical teardowns are strictly reserved for the Service Repair manual. This PDF is dedicated entirely to testing hydraulic flow, verifying system pressures, and executing software calibrations.

Can I quickly search for a specific sensor location on my tablet?

Yes. Because this is a native digital PDF, you can use the built-in search function on your iPad or Android tablet to type in any specific DTC code, sensor name, or test port location and jump directly to the correct procedure while standing on the job site.
