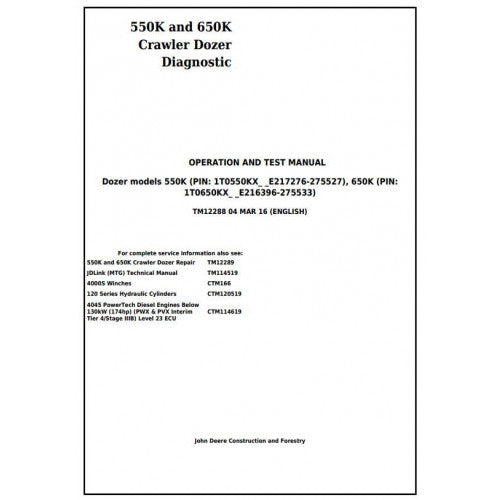

TM12288 John Deere 550K, 650K Crawler Dozer Pdf Diagnostic, Operation and Test Service Manual

John Deere 550K, 650K Crawler Dozer Diagnostic & Operation Service Manual

When a precision grading tractor like your 550K or 650K gets sidelined by erratic sensor readings or a sudden loss of hydraulic response, every minute of downtime cuts into your profit margin. To rapidly conquer complex digital and hydrostatic failures, you need the exact John Deere 550K, 650K manual type designed specifically for advanced troubleshooting. By investing in this TM12288 PDF download, your technicians immediately unlock the authentic factory OEM manual trusted by dealership diagnosticians worldwide. Delivered to your device as a fully bookmarked and searchable PDF, this comprehensive operation and test service guide empowers your crew to trace CAN-bus electrical faults, decipher cryptic diagnostic trouble codes (DTCs), and run precise hydraulic flow tests directly from the job site, restoring your dozer to peak performance.

TM12288 Diagnostic Manual Specifications

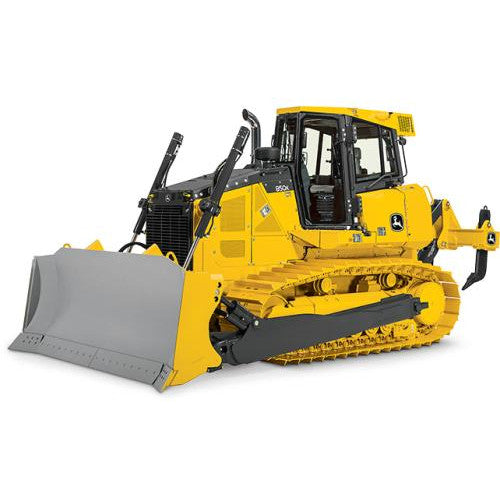

• Designated Machinery: John Deere 550K and 650K Crawler Dozers
• Official Manufacturer Number: TM12288
• Publication Classification: Diagnostic, Operation and Test Service Manual
• Core Troubleshooting Areas: Electrical Wire Tracing, DTC Fault Resolution, Hydraulic Benchmarking, Drive Calibration
• Digital Format: Instant, High-Resolution PDF Download
• Device Compatibility: Laptops, Mobile Tablets, Smartphones (Fully Printable)
• Language: English

Mastering Onboard Computer Faults & Hydraulics

The agility and finish-grading accuracy of the 550K and 650K dozers rely heavily on a synchronized network of electro-hydraulic controls and onboard computers. When these advanced systems fall out of communication, mechanical wrenches are useless. This TM12288 digital document translates complex machine behaviors into clear, mathematical testing procedures.

Interpreting DTCs & System Logic

A flashing "STOP" indicator on the cab monitor is just the beginning of the diagnostic process. This manual delivers the exhaustive master index of all Engine Control Unit (ECU) and Transmission Control Unit (TCU) error codes specific to these compact dozers. It arms your mechanics with rigorous diagnostic logic trees, detailing the exact sensor voltage parameters, baseline ohms, and resistance checks required to definitively prove if a code is caused by a failing sensor, a software glitch, or a corroded harness connection.

Electrical Circuitry & Wiring Schematics

Attempting to locate a short circuit across a heavy equipment chassis without an accurate map is an exercise in frustration. This PDF publication provides full-color, system-wide electrical wiring diagrams for the entire CAN-bus network. Complete with connector end-views and pin-out identification charts, your heavy-duty electricians can safely use a multimeter to verify ground points, trace power distribution, and test pilot joystick inputs without risking damage to the machine's primary computer modules.

Hydrostatic Drive Calibration

If your 550K or 650K pulls to one side during a heavy push or exhibits jerky tracking responses, the dual-path hydrostatic drive must be electronically synchronized. This guide outlines the secure monitor keypad sequences required to access technician mode. It directs you through the automated hydrostatic pump calibration, resetting the neutral and maximum displacement baselines to restore factory-grade steering precision and straight-line tracking.

Hydraulic Pressure Checks & Baselines

Before unbolting a suspect hydraulic pump, you must mathematically verify its failure. The Operational Checkout chapter maps out the exact physical locations and thread sizes of all diagnostic test ports on the tractor. It provides the OEM target PSI baselines for the charge pressure, high-pressure drive loops, and main implement relief valves, allowing you to quickly isolate an internal mechanical leak from an electronic proportional valve failure.

Crucial Boundary: Testing vs. Wrenching

Following strict John Deere technical publishing guidelines, this specific publication is engineered exclusively for diagnostic testing, electrical wiring, and system calibration. It does not contain structural teardown instructions. If your maintenance schedule dictates the physical removal of the engine, the splitting of track chains, or the mechanical overhaul of final drives, you must procure the companion mechanical Service Repair Technical Manual (TM12289).

Secure Your Digital Fleet Data at Manualsmarket.com

Applying incorrect voltage baselines or outdated calibration sequences to your crawler dozer can severely damage sensitive control modules. At Manualsmarket.com, we guarantee the delivery of the verified, manufacturer-direct TM12288 PDF. Protect your fleet's uptime by arming your field mechanics with the exact, authentic testing parameters they need to conquer complex machine failures on the first try.

Diagnostic Troubleshooting FAQ (TM12288)

Does this manual explain how to test the blade control joystick?

Absolutely. You will find the precise resistance and voltage output specifications necessary to verify that the cab's electro-hydraulic pilot joysticks are sending accurate, uninterrupted commands to the implement control valves.

Are physical pump replacement instructions included here?

No. Physical component extraction, track splitting, and mechanical teardowns are strictly reserved for the Service Repair manual. This PDF is dedicated entirely to testing hydraulic flow, verifying system pressures, and executing software calibrations.

Can I locate all the machine's grounding straps using this file?

Yes. The electrical section includes highly detailed chassis and cab diagrams that pinpoint the exact location of every major fuse block, relay center, and grounding strap on the dozer frame.

Is the search function easy to use on a tablet in the field?

Yes. Because this is a native digital PDF, you can use the built-in search function on your iPad, Android tablet, or laptop to type in any specific DTC code, sensor name, or test port and jump directly to the correct procedure in seconds.
