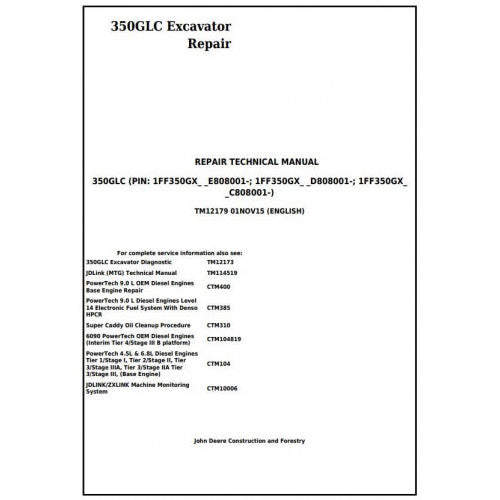

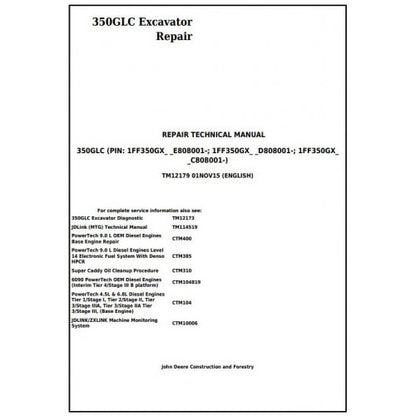

TM12179 John Deere 350GLC Excavator Pdf Repair Service Technical Manual

Conquer Severe Mechanical Fatigue: JD 350GLC Structural Teardowns

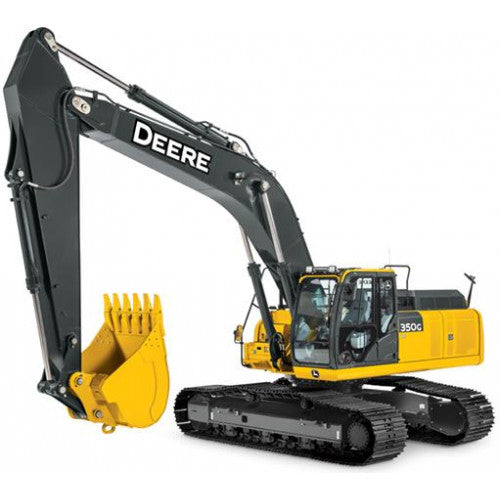

The John Deere 350GLC is a formidable 35-metric-ton excavator, functioning as the primary earthmoving muscle for commercial site development, heavy highway construction, and extensive pipeline trenching. Enduring thousands of hours of aggressive breakout forces and continuous, heavy-load slewing takes a profound physical toll on its foundational iron. When a machine of this size suffers a major mechanical failure—such as a collapsed track recoil mechanism or a heavily leaking boom cylinder—the logistical nightmare of transporting it to an off-site dealership completely derails your project timeline. The John Deere 350GLC Excavator Repair Service Technical Manual (TM12179) is your definitive on-site problem solver. It provides your heavy-line mechanics with the exact, manufacturer-authored extraction methods required to overcome deep structural breakdowns right in the dirt, keeping your vital trenching asset moving.

Available for rapid digital deployment across your maintenance division, this structural reference neutralizes the overwhelming downtime and inflated labor rates associated with outsourced heavy iron repairs. It equips your internal technicians with the specific physical tolerances and safe disassembly sequences necessary to permanently cure severe mechanical wear on your 35-ton earthmover.

Targeted Solutions for 35-Ton Excavator Breakdowns

Shift your workshop focus from routine fluid maintenance to advanced, wrenches-on-iron rehabilitation. This guide completely bypasses electrical diagnostics to provide authoritative solutions for the 350GLC's core physical assemblies:

• Heavy Undercarriage Overhauls: Overcome severe track and lower-frame failures safely. The manual outlines the required heavy-lifting sequences to separate the massive track chains, extract heavily worn idlers, and replace lower rollers utilizing strict internal clearances for a successful field overhaul.
• Swing Drive & Bearing Reconstruction: Resolve grinding upper-structure rotation. Obtain the critical shim measurements, planetary backlash dimensions, and heavy torque procedures mandated to meticulously replace the slew bearing and rebuild the swing motors.
• Primary Linkage Replacements: Eradicate dangerous play in the main digging structures. Utilize specialized heavy-pressing procedures and precise factory wear limits to safely swap out the gigantic boom pivot pins, stick (arm) linkages, and heavy-duty trenching bucket bushings.
• High-Pressure Hydraulic Sealing: Stop the continuous loss of hydraulic fluid under extreme breakout forces. Access the mandated tightening sequences and specialized tooling requirements for the massive piston head retaining nuts, guaranteeing a permanent seal within the enormous boom and arm cylinders.
• Prime Mover Hoisting: Execute the safe mechanical disconnection and heavy rigging protocols necessary to physically pull the massive diesel powerplant from the upper structure for replacement or external rebuilding.

TM12179 Technical Document Profile

Machine Specifications	Mechanical Archive Details
Asset Classification	John Deere 350GLC Excavator
Equipment Class	35-Metric-Ton Earthmoving
Document Code	TM12179
Core Utility Focus	Physical Hardware Extraction & Heavy Reassembly
File Architecture	Searchable Digital PDF Archive

Who Overcomes Maintenance Roadblocks With This Manual?

• Pipeline Fleet Managers: Keep your primary trenching assets digging by executing massive linkage and undercarriage rebuilds directly at the pipe-laying site.
• Commercial Site Prep Directors: Address severe structural wear on your earthmoving excavators internally, bypassing the massive transport logistics associated with dealership backlogs.
• Independent Heavy-Line Mechanics: Confidently accept lucrative 35-ton teardown jobs knowing your team possesses the exact physical tolerances required to rebuild the structural iron of this JD machine.

Heavy Hardware Troubleshooting FAQ

Does this file tell me how to read CAN bus fault codes?

No. Identifying active Diagnostic Trouble Codes (DTCs), locating electrical ground faults, and testing electronic pilot sensor logic belong entirely in the companion Diagnostic, Operation, and Test manual. This specific TM12179 text focuses exclusively on heavy wrenches-on-iron structural repairs and mechanical assembly.

Can my shop use this to rebuild the internal diesel engine block?

This reference details the safe hoisting methods and mechanical disconnection sequences necessary to remove the entire primary engine assembly from the excavator's frame. However, deep internal block restorations—such as fitting new pistons, cylinder liners, or a crankshaft—demand a separate Component Technical Manual authored specifically for that exact powerplant.

Does this download contain the hydraulic schematic diagrams?

No. Fluid flow testing, pressure benchmarking, and hydraulic schematic maps are classified as diagnostic tools and are strictly located within the Operation and Test manual. This repair manual covers the physical unbolting, resealing, and remounting of the heavy hydraulic hardware.

Is the document formatted to print heavy track torque charts for the field?

Absolutely. The digital format allows your mechanics to print precise fastening charts and exploded hardware views. This ensures the exact numerical data is at the toolbox, protecting your digital devices from heavy grease and site debris.

Secure Your Trenching Schedule

Do not allow a failing swing drive or a severely worn boom linkage to paralyze your earthmoving workflow. Secure the John Deere 350GLC Repair Manual TM12179 today and arm your heavy repair bay with the uncompromised mechanical data required to restore your excavator to strict factory standards.
